6x6/8x8 HDBaseT 4K Matrix
with ARC and HDCP 2.2 support (70m/230ft)
MX-0606-HDBT-H2C | MX-0808-HDBT-H2C
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• RX-70-4K-ARC HDBaseT Receiver – Use this receiver when support for
ARC functions of outputs 5-6 (6x6) and 6-8 (8x8) is required.
• RX-70-4K HDBaseT Receiver – Use this receiver for outputs 1-4 (6x6) and
1-5 (8x8) or when ARC is not required.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.

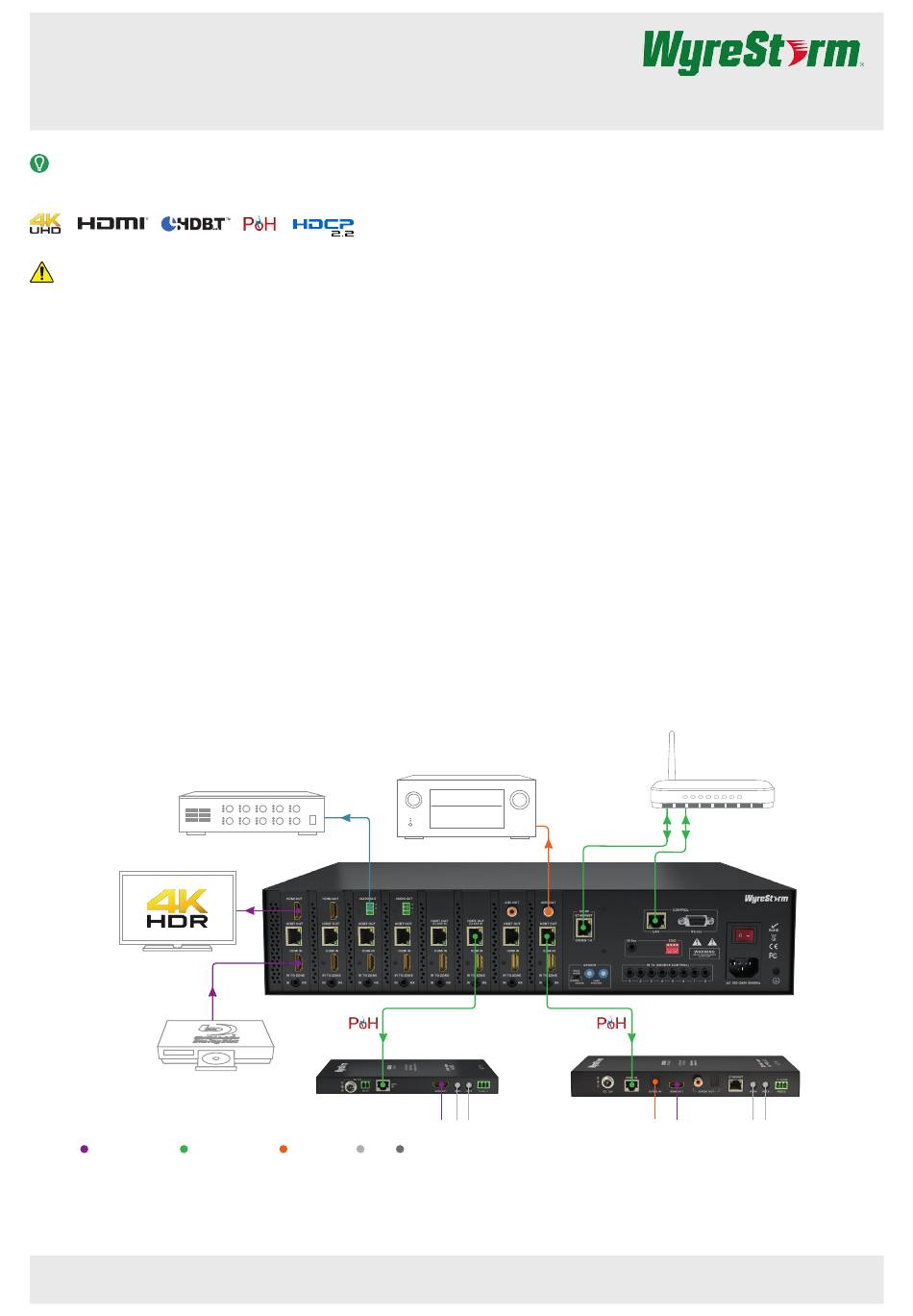

Basic Wiring Diagram
Stereo Audio Breakout of HDBT
Key
HDMI/Digital Video
HDBaseT/Ethernet
Copyright © 2018 WyreStorm Technologies |
MX-xxxx-HDBT-H2C Quickstart Guide | 180413
section for important wiring
Multiroom Amplifier
Digital Audio
IR
wyrestorm.com
In The Box
1x MX-0606-HDBT-H2C or MX-0808-HDBT-H2C Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38Khz)
6/8x Wide-band IR Receivers (30-50KHz)
6/8x IR Emitters
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide – Setup for advanced Matrix features such as IP
and testing of connections
• H2C Matrix Operation User Guide – Single page document showing the
operation via front panel and included IR remote.
• Drivers and API – Preconfigured drivers for popular control systems and
API document.
AV Receiver
Multi-channel Audio f
rom Remote Zone
70m/230ft
RX-70-POH
RS-232
1 of 4
Quickstart Guide
Router
MX-0808-HDBT-H2C
70m/230ft
RX-70-4K-ARC
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
