Wyrestorm MX-0606-HDBT-H2 Quick Start Manual

6x6/8x8 HDBaseT 4K Matrix
with ARC and HDCP 2.2 support (70m/230ft)
MX-0606-HDBT-H2 | MX-0808-HDBT-H2

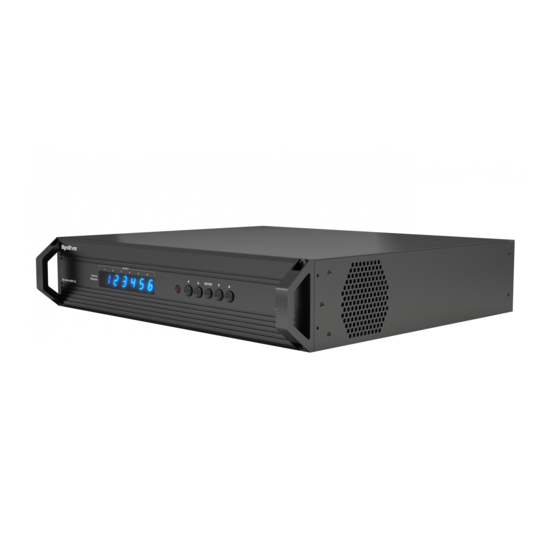

A 6x6 or 8x8 Class A HDBaseT 4K Matrix Switcher with support for 2 or 3 ARC zones, using the latest in HDCP 2.2 encryption technology.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x MX-0606-HDBT-H2 or MX-0808-HDBT-H2 Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38Khz)
6/8x Wide-band IR Receivers (30-50KHz)
6/8x IR Emitters
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)

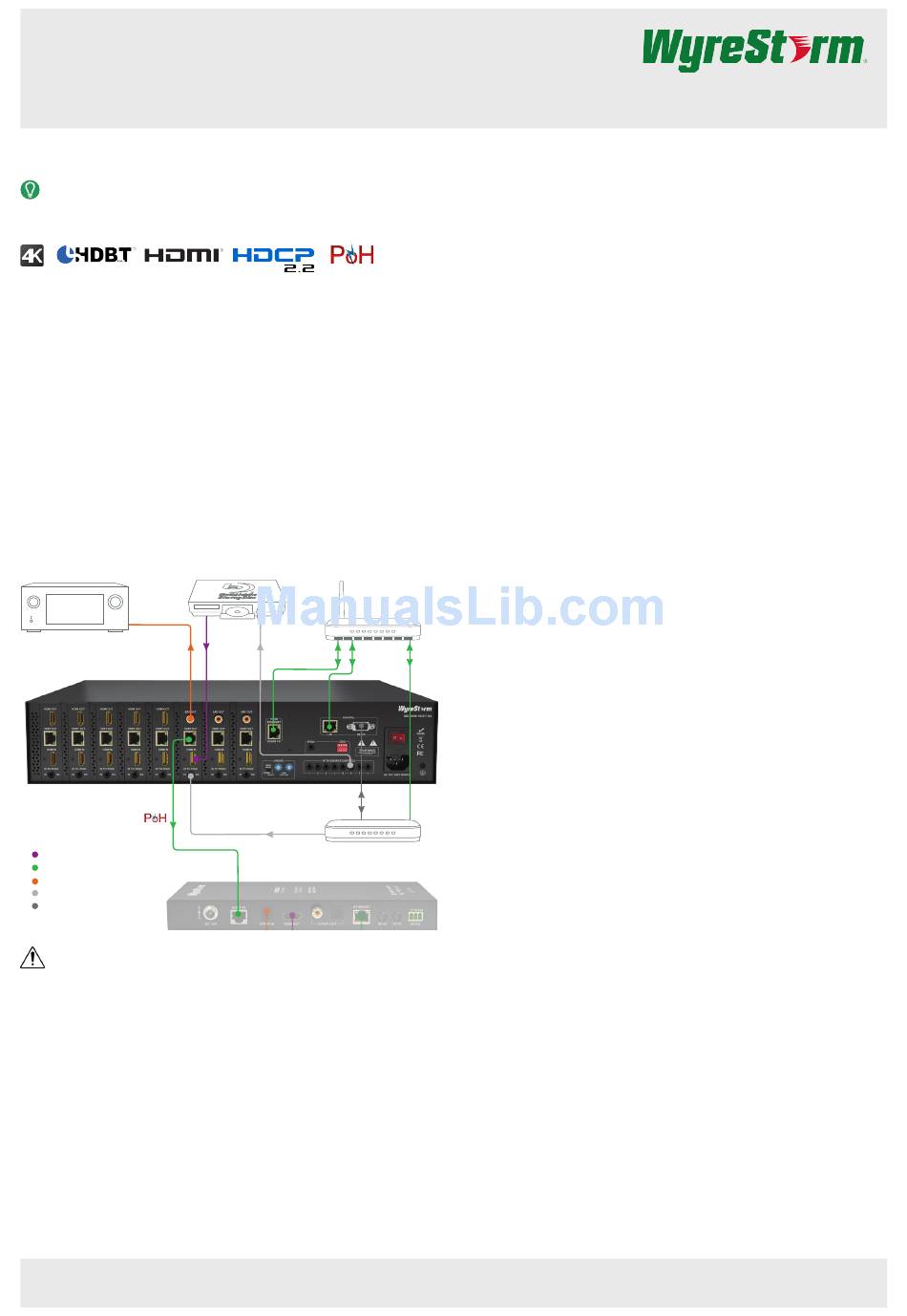

Basic Wiring Diagram
AV Receiver
5.1ch Audio from
Remote Zone
MX-0808-HDBT-H2
Key
HDMI/Digital Video
HDBaseT/Ethernet
Digital Audio
IR
RS-232
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the matrix or receiver is powered on. Doing so may
cause damage to the units or connected devices.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm
recommends the following products be used within the system.
• RX-70-4K-ARC HDBaseT Receiver – Use this receiver when support
for ARC functions of outputs 5-6 (6x6) and 6-8 (8x8) is required.
• RX-70-4K HDBaseT Receiver – Use this receiver for outputs 1-4 (6x6)
and 1-5 (8x8) or when ARC is not required.
• CAB-IR-LINK – Use this cable when using an IR control system for
matrix control of HDBaseT pass-through.
Copyright © 2015 WyreStorm Technologies |
MX-0606-HDBT-H2/MX-0808-HDBT-H2 Quickstart Guide | 160330
UHD Source
Router
CAB-IR-LINK (Sold
Control System
Separately)
RX-70-4K-ARC
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. See Supported Video Resolutions
restrictions. Terminate the cable per the
section.
2. (Optional) If using IR emitters or connecting blocks, run the wire and
terminate per the IR TX (Emitter) Wiring
3. (Optional) If using IR receivers, run the wire and terminate per the
RX/Ext (Receiver) Wiring
4. (Optional) If using RS-232 pass-through, run the wire and terminate
per the RS-232 Wiring
Installation
1. Connect the output of an HDMI source to an HDMI In on the
matrix using a cable from a high quality brand such as
Express. Repeat for additional sources.
2. Using the cable created in
RJ-45 female plug to the HDBT Out jack on the matrix. Repeat for
additional HDBaseT receivers.
3. (Optional) Using the included IR emitter or the cable created in
Pre Wire step 2, place an IR emitter onto a source device near the
device's IR sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR
TX port. Repeat for additional sources.
4. (Optional) Using the included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR RX (IR to Zone) port. If using a control system,
use the WyreStorm CAB-IR-LINK
step 3. Repeat for additional zones.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR Ext port. If using a control system, use the
WyreStorm CAB-IR-LINK
6. (Optional) Using the cable created in
9-pin DB9 male jack to the RS-232 port on the matrix and the
opposite end to an RS-232 control system.
7. (Optional) Connect the ARC Out of cards 5-6 (6x6) or 6-8 (8x8) to
a digital audio input of a device such as an AV Receiver. Repeat for
additional ARC Out connections.
8. Install HDBaseT receivers (RX-70-4K-ARC recommended) following
the instructions provided with the model being installed.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
for resolution distance
HDMI/HDBaseT Wiring
section.
section.
section.
Pre Wire step 1, connect the 8-pin
or the cable created in
or the cable created in Pre Wire
Pre Wire step 4, connect the
