6x6/8x8 HDBaseT 4K Matrix
with ARC and HDCP 2.2 support (70m/230ft)
MX-0606-HDBT-H2 v2 | MX-0808-HDBT-H2 v2
A 6x6 or 8x8 Class A HDBaseT 4K Matrix Switcher with support for 2 or 3 ARC zones, using the latest in HDCP 2.2 encryption technology.
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• RX-70-4K-ARC HDBaseT Receiver – Use this receiver when support for
ARC functions of outputs 5-6 (6x6) and 6-8 (8x8) is required.
• RX-70-4K HDBaseT Receiver – Use this receiver for outputs 1-4 (6x6) and
1-5 (8x8) or when ARC is not required.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.

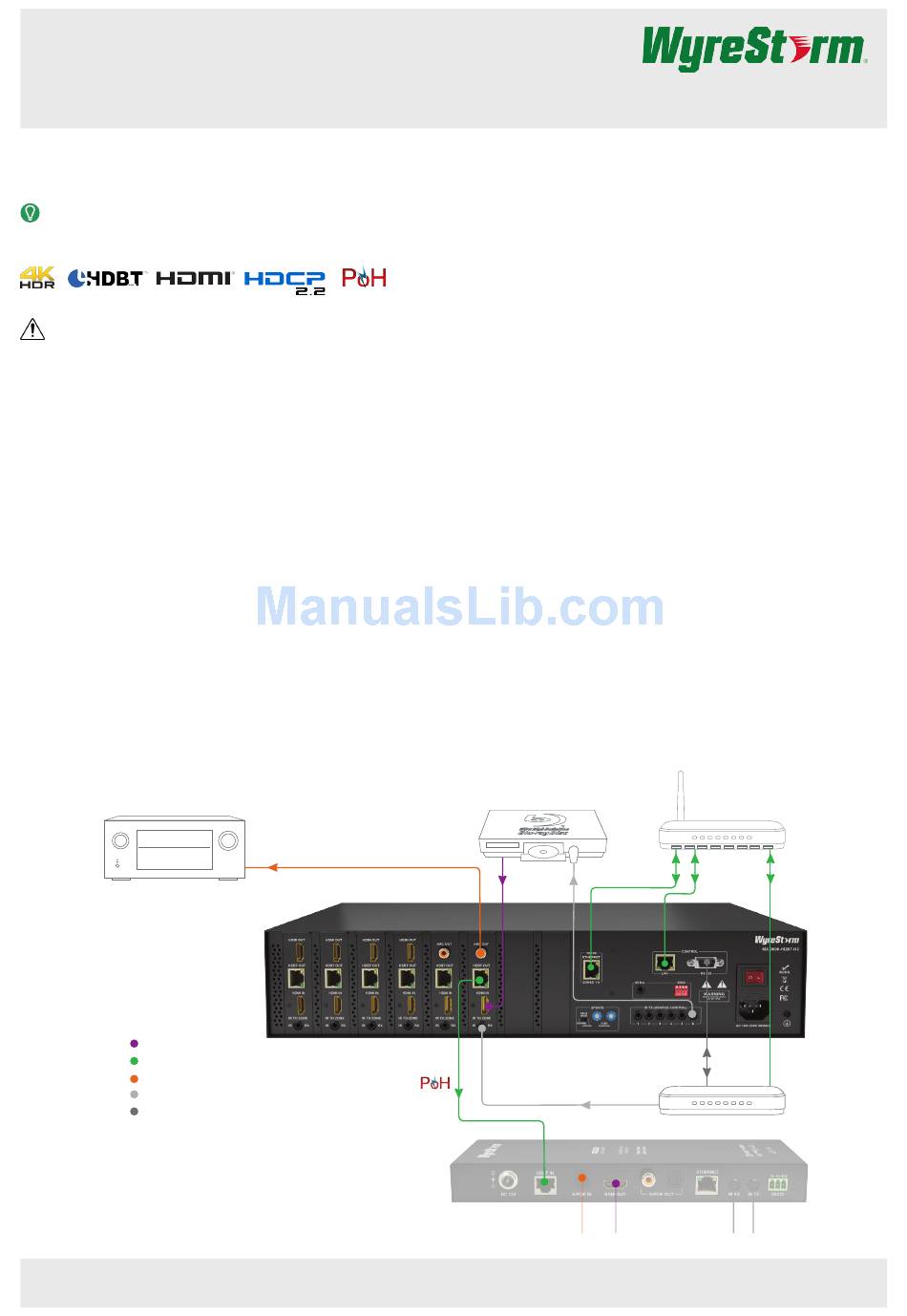

Basic Wiring Diagram
AV Receiver
Key
HDMI/Digital Video
HDBaseT/Ethernet
Digital Audio
IR
RS-232
Copyright © 2015 WyreStorm Technologies |
MX-0606-HDBT-H2/MX-0808-HDBT-H2 Quickstart Guide | 170516
section for important wiring
Multi-channel Audio from Remote Zone
MX-0606-HDBT-H2
wyrestorm.com
In The Box

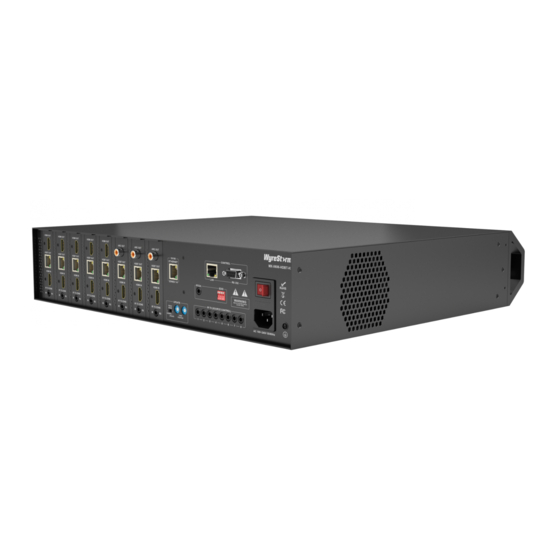

1x MX-0606-HDBT-H2 or MX-0808-HDBT-H2 Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38Khz)
6/8x Wide-band IR Receivers (30-50KHz)
6/8x IR Emitters
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide – Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide – Single page document showing the
operation via front panel and included IR remote.
• Drivers and API – Preconfigured drivers for popular control systems and
API document.
UHD Source
CAB-IR-LINK (Sold Separately)
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
Router
Control System
RX-70-4K-ARC
support@wyrestorm.com
Advertisement
Table of Contents
Related Manuals for Wyrestorm MX-0606-HDBT-H2L
Summary of Contents for Wyrestorm MX-0606-HDBT-H2L
- Page 1 Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label. WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 Accessing the Web UI While the matrix will connect to a network out the box, it has a default static IP address that may interfere with other WyreStorm devices on the same network. WyreStorm recommends changing the IP address of the matrix to one other than the default.
-
Page 4: Specifications
Troubleshooting Tips: • Verify that the HDBaseT cable is properly terminated per the HDMI/ • WyreStorm recommends using a cable tester or connecting the cable to HDBaseT Wiring section. other devices to verify functionality. • Verify that the matrix, receiving device, and display supports the output •...
