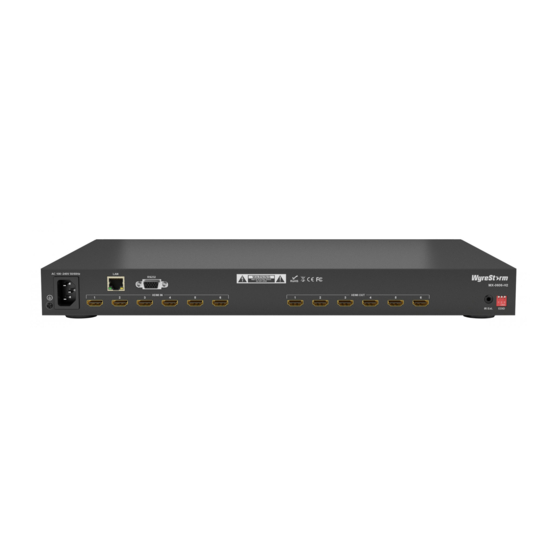

4x4 or 6x6 4K HDMI Matrix Switcher
with HDCP 2.2 Encryption
MX-0404-H2 v2 | MX-0606-H2 v2
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting
the installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.
Basic Wiring Diagram
AC Mains
LAN
HDMI
UHD Source
Copyright © 2016 WyreStorm Technologies |
MX-0404-H2 v2 | MX-0606-H2 v2 Quickstart Guide | 171005
RS-232 to Control System
HDMI
UHD Source
wyrestorm.com
In the Box
1x MX-0404-H2 v2 or MX-0606-H2 v2 Matrix Switcher
1x Handheld IR Remote
1x IR Receiver (38kHz)
1x AC Power Cord with EU Plug
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x USB to DB9 RS-232 Cable
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide - Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide - Single page document showing the
operation via front panel and included IR remote.
• Drivers and API - Preconfigured drivers for popular control systems and
API document.
HDMI
UHD Display
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
KEY
HDMI
HDBaseT /Ethernet
IR / RS-232
Power
HDMI
UHD Display
IR Receiver
