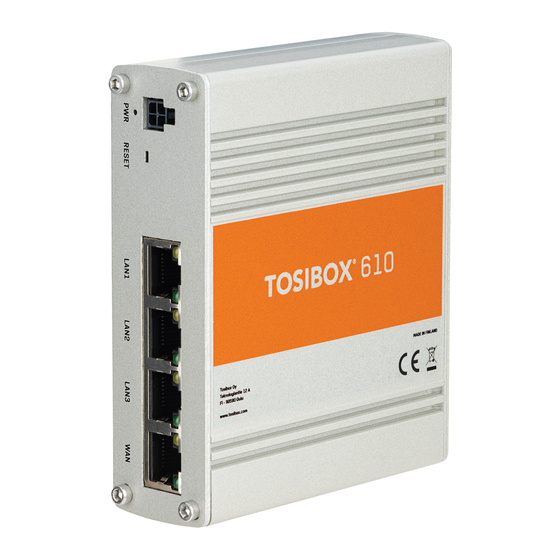

Tosibox 610 Quick Start Manual
Hide thumbs Also See for 610:

Advertisement

1
Matching your TOSIBOX
1.
Connect the operating voltage of 9-50 V DC to the Node and wait for 1 minute.
2.
Insert the Key into the USB port of the Node. When the LED on the Key turns off, (after approx.
10 seconds) the matching is complete, and you can remove the Key from the USB port.
3a
3.
Go to
connection. If deploying Nodes as DHCP client into existing networks, please see the TOSIBOX user
manual.

Set Up Router

2
1.
Connect ethernet cable into LAN port of TOSIBOX® Node and the other end of the cable into LAN port
of your computer.
2.
Visit 10.10.10.254 in your browser to set up your device.
3.
Log in using "admin" account. The password can be found from the bottom of the Node.
4.
TOSIBOX® Node needs an Internet connection to function. Go to
(ethernet) or
Update the device software immediately when you are connected to the Internet.
!
Go to Settings > Software update. If there is a software update available for the device, start the update by clicking
Start software update.

Connect to the Internet using Ethernet connection

3a
1.
Connect your TOSIBOX® Node from the WAN port to the Internet with a fixed Ethernet cable.
2.
When the WAN ETH LED is lit on the front plate of the Node, the Internet connection is working. If the light is
not lit, investigate possible connectivity issues.

Set up wireless connection

3b
Connect the device to the Internet using internal
LTE Modem (670 and 675)
You can connect the device to the Internet with an internal
Modem. Before inserting or removing the SIM card,
disconnect the device power supply.
1.
Install the antenna
2.
Insert a SIM card
3.
Select Network > Internal Modem and fill in the APN
according to your mobile operator settings. Enter
PIN code if necessary.
Click Save.
Position the antennas in orthogonal pattern, i.e. in such a way that they form
!
90 degrees angle between each other.
610, 650, 670, 675
Quick Start Guide
Copyright © Tosibox Oy, 2022
if you are connecting to the Internet using Ethernet connection or
if deploying into wireless connection.
3b
Node with the Key
®
3a
if deploying into broadband networks
Connect the device to the Internet using wireless LAN
(650 and 675)
1.
Attach WLAN antenna to the device.
2.
Open the service connection to the device and log in
with your credentials.
3.
Configure wireless LAN settings at "Network >
WLAN".
4.
When the WAN WIFI LED is lit on the front plate of
the Device, the WLAN connection is working.
3b
if setting up wireless
