9R725-A ECN-18489

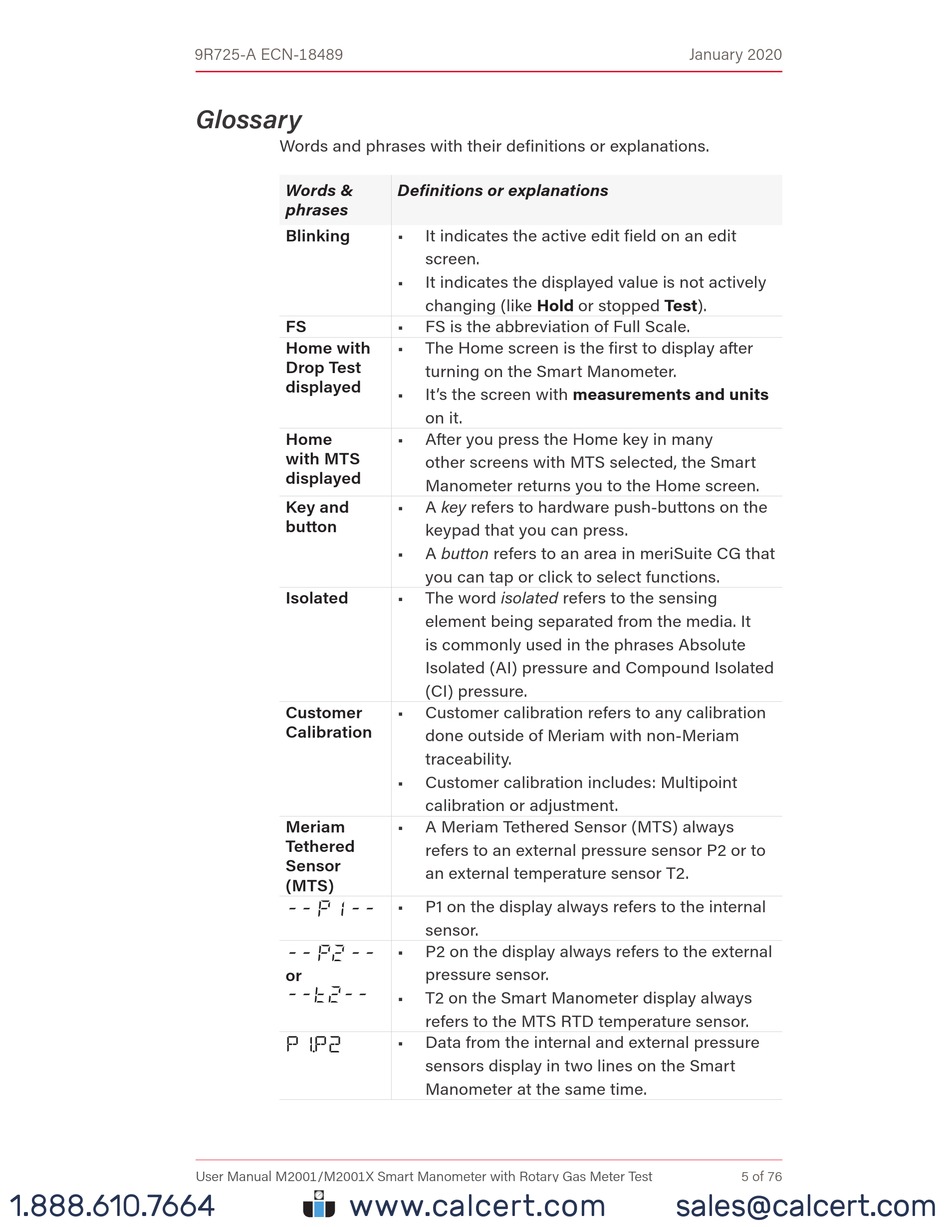

Glossary

Words and phrases with their definitions or explanations.
Words &
phrases
Blinking
FS
Home with
Drop Test
displayed
Home
with MTS
displayed
Key and
button
Isolated
Customer
Calibration
Meriam
Tethered
Sensor
(MTS)
-- P1 --
-- P2 --
or
--t2--
p1. P 2
User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test
www.calcert.com
15
10
20
5
25
0
30
Definitions or explanations
It indicates the active edit field on an edit
screen.
It indicates the displayed value is not actively
changing (like
Hold
FS is the abbreviation of Full Scale.
The Home screen is the first to display after
turning on the Smart Manometer.
It's the screen with
measurements and units
on it.
After you press the Home key in many
other screens with MTS selected, the Smart
Manometer returns you to the Home screen.
A key refers to hardware push-buttons on the
keypad that you can press.
A button refers to an area in meriSuite CG that
you can tap or click to select functions.
The word isolated refers to the sensing
element being separated from the media. It
is commonly used in the phrases Absolute
Isolated (AI) pressure and Compound Isolated
(CI) pressure.
Customer calibration refers to any calibration
done outside of Meriam with non-Meriam
traceability.
Customer calibration includes: Multipoint
calibration or adjustment.
A Meriam Tethered Sensor (MTS) always
refers to an external pressure sensor P2 or to
an external temperature sensor T2.
P1 on the display always refers to the internal
sensor.
P2 on the display always refers to the external
pressure sensor.
T2 on the Smart Manometer display always
refers to the MTS RTD temperature sensor.
Data from the internal and external pressure
sensors display in two lines on the Smart
Manometer at the same time.
January 2020
or stopped Test).
5 of 76
