Elite Screens ezCinema Series User Manual

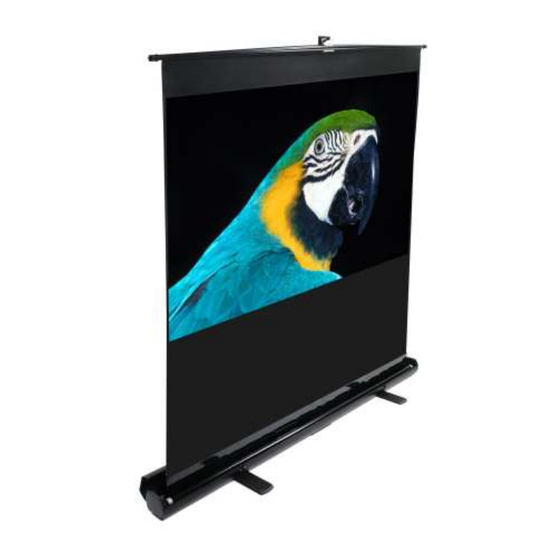

Portable floor pull-up screen
Hide thumbs
Also See for ezCinema Series:
- User manual (7 pages) ,
- Quick setup manual (2 pages) ,
- Product catalog (72 pages)
Related Manuals for Elite Screens ezCinema Series
Summary of Contents for Elite Screens ezCinema Series

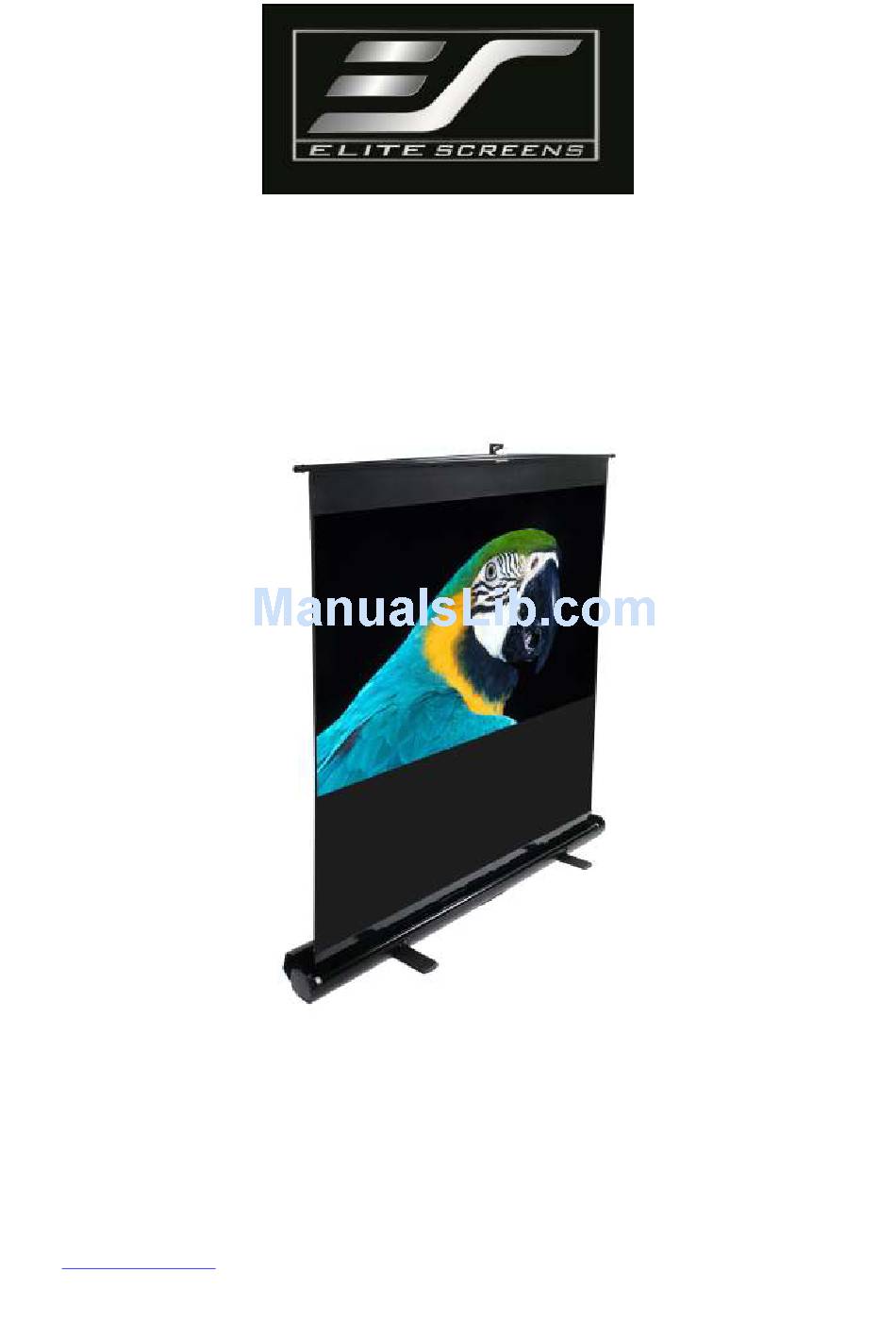

- Page 1 ezCinema Series Portable Floor Pull-Up Screen USER’S GUIDE Rev.062510-JA www.elitescreens.com info@elitescreens.com...
-
Page 2: Parts Identification
PARTS IDENTIFICATION: Pull hook Note: Second telescoping Front Upper scroll bar rod available on 150” models only. Bracket Hook Black Masking Border Edge Small support rod Locking sleeve White projection surface Big support rod Bottom Black Masking Box Cover Lock Note: Middle foot available on 120”... -
Page 3: Setting Up The Screen
Precautions: Warning! Screen damage can result from product mishandling if the enclosed precautions are not followed. In accordance with practicing home fire safety and to avoid screen damage, do not place the screen near or beside a fireplace or high temperature appliances such as a gas stove, BBQ or heater. - Page 4 Open the box cover: Unlatch the buckles on both ends of the box and open the box cover. Next, secure the box with one hand while removing the telescopic support rod with your other hand. Installing the support rod: First, make sure that the hanging hook is pointing toward the front facing the same direction as the screen, then insert the square end of the telescopic support rod into the support plate as shown below.
- Page 5 Vertical Adjustment: First loosen the locking sleeve, and then hold the small support rod with the left hand so as to slowly raise it upwards until the screen is fully stretched to the desired position. Adjusting the screen: Hold the screen with the left hand when the screen has been stretched to the desired position, and then rotate the locking sleeve clockwise with the right hand until the telescopic rod is properly locked into position.
- Page 6 Preparing screen for storage 1. Pulling down the screen: First, hold the telescopic support rod with the left hand and loosen the locking sleeve counter-clockwise with the right hand. Then shorten the telescoping support rod slowly into the full retracted position and tighten the locking sleeve to secure it in place.
- Page 7 4. Storing the telescopic support rod Properly center the supporting rod in the middle to maintain the weight balance in the box when carrying. 5. Draw the base feet back: Slightly lift each end of the box in turn rotating the two base feet underneath until they are back into alignment with the box.
- Page 8 ezCinema Series Dimensions Table Unit: mm Screen View Upper Scroll Overall Screen View Case Case Case N.W. Model Width Width Bar Length Height Height Height Height Width Length (A) (KGS) (A1) (A2) (A3) (B1) (B2) F60NWV 1410.0 1295.0 1219.0 1379.0 1990.2 1854.2 914.4...
-
Page 9: Warranty Policy
A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option, replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit is received. -
Page 10: Contact Info
Fax: +86-(0)755-8461-7669 info@elitescreens.com.cn Latin America Contact: www.elitescreens.com.cn info.la@elitescreens.com East Asia Contact: Taiwan: info.ea@elitescreens.com Elite Screens Taiwan Co. Ltd. India Contact: No.38, Alley 22, Lane 66, Sec. 5 info.india@elitescreens.com Nanjing E. Rd., Songshan District Japan Contact: Taipei City 105, Taiwan (R.O.C) info.japan@elitescreens.com...
