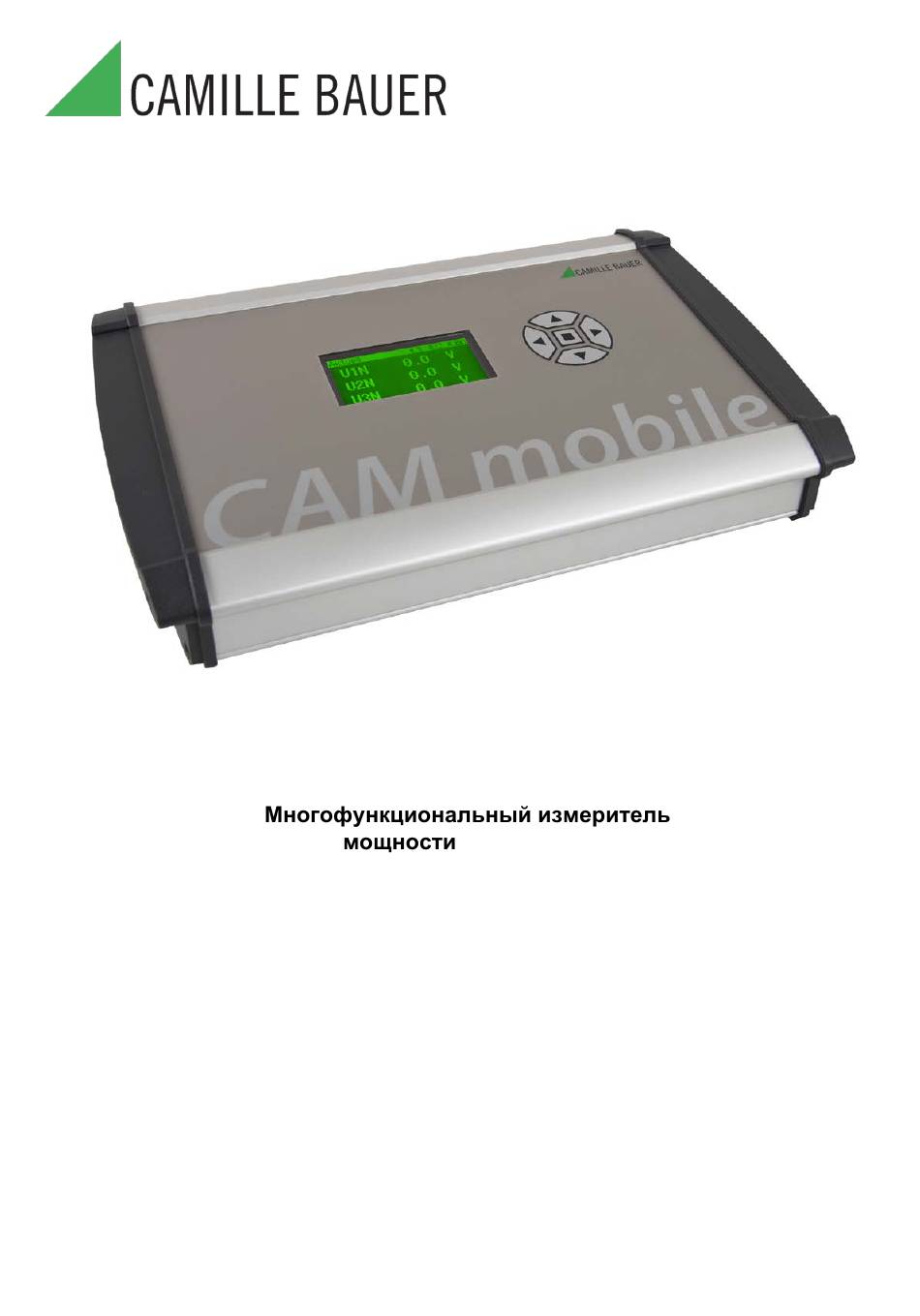

  • Page 1 CAM mobile Архангельск (8182)63-90-72 Калининград (4012)72-03-81 Новосибирск (383)227-86-73 Сочи (862)225-72-31 Астана (7172)727-132 Калуга (4842)92-23-67 Омск (3812)21-46-40 Ставрополь (8652)20-65-13 Астрахань (8512)99-46-04 Кемерово (3842)65-04-62 Орел (4862)44-53-42 Сургут (3462)77-98-35 Барнаул (3852)73-04-60 Киров (8332)68-02-04 Оренбург (3532)37-68-04 Тверь (4822)63-31-35 Белгород (4722)40-23-64 Краснодар (861)203-40-90 Пенза (8412)22-31-16 Томск...
  • Page 2 Legal information Warning notices In this document warning notices are used, which you have to observe to ensure personal safety and to prevent damage to property. Depending on the degree of danger the following symbols are used: If the warning notice is not followed death or severe personal injury will result.

  • Page 3: Table Of Contents

    4.1 Installation of the CB-Manager Software .................. 8 4.2 Connecting CAM mobile to PC ....................8 4.3 Parameterization of the CAM mobile ..................8 4.3.1 Parameterization of the measurement input ..................8 4.3.2 Parameterization of the measurements to record ................9 4.3.3 Defining events to monitor .
  • Page 4 B4.1 Customer specific measurement displays ..................41 B4.2 Measurement display of system quantities ..................42 B4.3 Measurement display of harmonics ....................43 B4.4 Display meter contents ........................44 B4.5 Measurements of I/O's and relays ....................44 B4.6 Measurement display of mean values .

  • Page 5: Safety Precautions

    Safety precautions The power analyzer CAM mobile has been designed as a protection class I instrument in accordance with the safety regulations IEC/EN 61010-1. To ensure the safety of the operating staff a protective earth via the power supply connector is mandatory and the following warnings must be adhered to. Safety is not guaranteed if warnings are not followed or if the device is operated incorrectly or handled improperly.

  • Page 6: Scope Of Delivery

    Upon receive of delivery check device and supplied accessories for completeness and integrity: Description o.k.  CAM mobile Power analyzer  Test leads for voltage inputs, with test probes and plug-on dolphin clips  Three-phase Rogowski coils 30/300/3000A for measuring phase currents ...

  • Page 7: Device Overview

    Device overview The CAM mobile is a measurement device to be used in any low voltage power distribution. It bases on the SINEAX CAM, a proven universal measurement unit for heavy-current quantities, equipped with data logger, lists, display and USB interface. The CAM mobile is designed for the non-stationary analysis of energy demand and system state quantities.

  • Page 8: Preparation Of Measurement Application

    After the first start-up of the software set the communication interface to „USB“ using the menu item options | interface. Once done use system | search devices to bring the CAM mobile into the device list. By double- clicking on the appropriate symbol in the device list the present parameterization of the device is read and displayed.

  • Page 9: Parameterization Of The Measurements To Record

    4.3.2 Parameterization of the measurements to record In the register „mean values“ those quantities can be selected, which should be recorded later over a longer time period. Two different groups of mean values with up to 12 quantities each are supported. Typically of the groups is used with a longer interval time, e.g.

  • Page 10: Defining Events To Monitor

    4.3.3 Defining events to monitor To detect and record the occurrence of special situation, such as overload or phase failure, limit values can be defined. The state of a limit or a combination of multiple limit states can then in the logic module be classified as event or alarm.

  • Page 11: Defining Measurement Data To Record

    States of limit values are the most important input quantities of the logic module. If more than 3 inputs are required, the result of a logic function can be used as input for the next function. For that you have to know that logic functions are evaluated in the sequence 1…32.
  • Page 12  min/max RMS-values for P1, P2, P3 for each 15 minutes interval For a temporary measurement using the CAM mobile the memory utilization should be selected, that most of the data logger parts allows the same storage (in the example 153 days). For lists this is not possible directly, but you can define the maximum number of storable events.

  • Page 13: Parameterization Of The Display

    The state of the logger will not be changed by a power failure or by switching off the device. Therefore the CAM mobile may be transported to the place of action, without the need to start the logger again on-site.

  • Page 14: Connecting The Device On-Site

    Connecting the device on-site Observe warning 1…7 of the safety precautions! 5.1 General warnings National provisions (e.g. in Germany VDE 0100 “Conditions concerning the erection of heavy current facilities with rated voltages below 1000 V”) have to be observed ! 5.2 Connecting power supply For safe operation the device must have a low impedance connection to the protective earth connector.
  • Page 15 1) The USB communication interface is galvanically isolated from all other circuits. Therefore, also during measurement a PC may be connected via the supplied USB cable. 2) Connection of the 3-phase Rogowski coil ACP 3003_3 to measure the phase currents I and I .
  • Page 16 • 3 phase delta system, balanced load, current measurement L1 The coils L2 and L3 of the 3-phase Rogowski coil ACP 3003_3 are not used • 3 phase, 4 wire wye, balanced load, current measurement L1 The coils L2 and L3 of the 3-phase Rogowski coil ACP 3003_3 are not used 16/66...
  • Page 17 • 3 phase delta, unbalanced load • 3 phase delta, unbalanced load, Aron connection The coil L2 of the 3-phase Rogowski coil ACP 3003_3 is not used 17/66...
  • Page 18 • 3 phase, 4 wire wye, unbalanced load If the single-phase Rogowski coil is not available its connection may be omitted. This will have no influence on measurement or measurement accuracy. Only the neutral current can’t be measured and is given with 0.0A. •...

  • Page 19: Checking The Correct Installation

    Checking the correct installation By means of the PC-Software Voltage (at least 20% U ) and current (at least 2% I ) must be connected rated rated Using the connection check, which is integrated in the visualization of the instantaneous values, the correct connection of the current and voltage inputs may be checked.

  • Page 20: Performing Measurements

    Performing measurements As soon as the CAM mobile is switched on the device starts to measure and analyze the input quantities in accordance with the configuration. Since the measurement is likely to take place over a longer time period, it is important to check some basic settings, as otherwise the recorded measurement data can not produce the desired result.

  • Page 21: Analysis Of Recorded Data

    Functionality of the CB-Analyzer software This .NET based software allows reading and analyzing the data of logger and list of the CAM mobile. Data read from the device is saved in a data base. The software is able to handle data of multiple devices at the same time or sequentially.
  • Page 22 Select communication interface USB d) Search the connected device The CAM mobile must be connected to the PC via USB cable and the USB driver of the device has to be installed correctly (see also D1.3). 22/66...
  • Page 23 Read logger data from CAM mobile (Right click on the device to display the menu) The progress of the reading process is shown with a bar at the bottom: f) Display content of alarm, event and operator list (Right click on the device to display the menu) If one or multiple of the report types are shown in gray and can’t be selected, then the appropriate list...
  • Page 24 g) Graphical analysis This analysis is performed using data from the data base. Therefore, the device no longer has to be connected. For the selection of the data base see item b) above. An analysis function may consist of multiple measured quantities, which can be graphically displayed at the same time.
  • Page 25 h) Data display handling Once displayed there are a lot of functions and options to adjust the display to your individual needs. You may zoom-in, adjust the time-scaling, choose a different measurement display form or indicate individual values using the cursor tool. Display form diagram: as shown above table: the diagram information in list form.
  • Page 26 Tools The hand tool is used to shift the graphic by means of the mouse. The zoom tool allows selecting the area of interest within the diagram. The cursor tool allows displaying the individual values of each graph. The double cursor tool allows to set a cursor (SHIFT) and then to use the second cursor to make comparisons.

  • Page 27: Service And Maintenance

    Service and maintenance 9.1 Protection of data integrity The CAM mobile supports security mechanism, which serve to prevent manipulation or undesired modifications of device data. Data stored in the device can be changed or reset via USB interface or via the keys on the device itself.

  • Page 28: Technical Data

    10 Technical data Measurement input Interrupted input signal: Voltage 0.2% FS Rated frequency: 50 … 60 Hz measurement Current 0.2% FS TRMS: Up to 63 harmonic ≤ 300 V CATIII, ≤ 600 V CATII Power 0.5% FS Measurement category: Energy Basic acc.
  • Page 29 Applied standards and regulations Safety IEC/EN 61 010-1 Safety regulations for electrical Protection class: I acc. EN61010-1, connection with measuring, control and laboratory protective earth of the fixed installation equipment Pollution degree: IEC/EN 60 688 Electrical measuring transducers for converting AC electrical Ambient conditions, general information variables into analog and digital Operating temp.:...

  • Page 30: Appendix

    Appendix A Description of measured quantities Used abbreviations Single phase system Split phase; system with 2 phases and center tap 3-wire system with balanced load 3-wire system with unbalanced load 3Lu.A 3-wire system with unbalanced load, Aron connection (only 2 currents connected) 4-wire system with balanced load 4-wire system with unbalanced load 4Lu.O...
  • Page 31 Measurement ● √ √ √ √ √ √ √ √ Power factor PF ● √ √ √ Power factor PF1 ● √ √ √ Power factor PF2 ● √ √ Power factor PF3 ● √ √ √ √ √ √ √...
  • Page 32 Zero displacement voltage U Starting from the generating system with star point E (which is normally earthed), the star point (N) on load side is shifted in case of unbalanced load. The zero displacement voltage between E und N may be determined by a vectorial addition of the voltage vectors of the three phases: = - (U...

  • Page 33: A2 Harmonic Analysis

    TDD (Total Demand Distortion) In the CAM mobile the complete harmonic content of the currents is shown as Total Demand Distortion, briefly TDD. This value is scaled to the rated current resp. rated power, rather than using the instantaneous value of the current as a reference.

  • Page 34: A3 Mean Values And Trend

    A3 Mean values and trend Measured quantity Averaging time t1 ● ● ● ● Quantity 1 1s...60min. ● ● ● ● Quantity 2 1s...60min. ● ● ● ● Quantity 3 1s...60min. ● ● ● ● Quantity 4 1s...60min. ● ● ●...

  • Page 35: A4 Meters

    A4 Meters Measured quantity ● ● ● ● ● ● ● ● Active energy incoming, high tariff ● ● ● ● ● ● ● ● Active energy outgoing, high tariff ● ● ● ● ● ● ● ● Reactive energy inductive, high tariff ●...

  • Page 36: B Graphic Display

    B Graphic display The optional graphic display is intended for on-site visualization of measurement data, lists and alarms of the SINEAX CAM. The operation of the display is performed by means of the keys. Using the keys the user may acknowledge alarms or extreme values as well.

  • Page 37: B1 Display Structure And Operation

    B1 Display structure and operation Generally When first switching on the device the main menu is When changing the display window there displayed. On every further start-up the last displayed may be a waiting time, which is symbolized image before the power-down is shown. There may be by displaying a sand glass.

  • Page 38: B2 Settings

    B2 Settings select a parameter group Invoke the line settings in the main menu. This line will be visible only if the selection is shifted downwards. In the menu settings go to the line with the desired parameter group using the keys  and .

  • Page 39: B2.3 Settings Of The Clock

    B2.3 Settings of the clock The CAM mobile has an internal clock, which is used as To handle this problem the CAM mobile uses internally a time reference for alarms, events, progression of UTC time only (see below). The user can set a time measurements and so on.

  • Page 40: B3 Security System

    B3 Security system The device supports a security system which allows For the display the following functions may be selectively assigning rights to different users. Thereby protected using the security system: rights for the changing of measurement or - Reset of meters and extreme values configuration data or the simulation of I/O data may - Settings of display, interface and clock be granted.

  • Page 41: B4 Display Measurements

    B4 Display measurements The Measurements menu has more entries as directly can be displayed. Via main menu the menu measurements may be Meters: All acquired meter contents of the measured invoked. There the following data are available: system and the I/O's. Customized: Free assembled measurement data, I/O, relays: Measurements resp.

  • Page 42: B4.2 Measurement Display Of System Quantities

    B4.2 Measurement display of system quantities Present: Contains the instantaneous values of the system Minimum, maximum: Shows all acquired minimum and maximum values with timestamp Reset minimum, maximum: Allows to selectively reset the acquired extreme values Present This predefined assembling of measurements consists of multiple pages.

  • Page 43: B4.3 Measurement Display Of Harmonics

    B4.3 Measurement display of harmonics Present: Contains the present harmonic contents as well as THD and TDD Maximum: Contains the acquired maximum values with timestamp Reset maximum: Allows to selectively reset the maximum values Present Each page shows a graphical overview of the present harmonic contents (U or I) and the value for one individual harmonic.

  • Page 44: B4.4 Display Meter Contents

    B4.4 Display meter contents Meter contents are acquired for both the measured system as well as for analog inputs. For digital inputs it takes place only if the inputs are configured as meter inputs. Meters For each meter the contents for high tariff (HT) and for low tariff (LT) are displayed.

  • Page 45: B4.6 Measurement Display Of Mean Values

    B4.6 Measurement display of mean values Mean values may be acquired with two different appropriate measurement displays are variable. Up to interval times t1 and t2. The corresponding measured 12 different pages may be displayed. The selection is performed using the keys  and . quantities are freely configurable.

  • Page 46: B5 Alarms

    B5 Alarms Via the logic module of the SINEAX CAM complex contexts may be monitored. Out of them alarms can be generated, which are shown on the graphic display and can be acknowledged via the keys. alarm reporting The occurrence of an alarm is reported by a blinking bell symbol in the upper left corner of the display, no matter which display page is active at the moment.

  • Page 47: B6 Lists

    B6 Lists The Lists allows performing a chronological recording All recordings can be displayed on request, with time of events, alarms or system messages. At a later time stamp and dedicated text. If the security system has it's possible to understand and analyze each state been activated for specific displays also the involved change of the power system and each intervention to user is available.
  • Page 48 Operator list This list contains all the events which are caused by a The monitored events are listed below. All texts are user interaction or a specific system event. predefined and can't be modified by the user. list entry The time stamp shows the time of the occurrence of the event.
  • Page 49  Alarm handling - Acknowledgement of all active alarms - Selective alarm acknowledgement LS1..16, with detail code (binary) - Selective alarm acknowledgement LS17..32, with detail code (binary)  Reset - Standard meters - Meters of the module inputs - min./max. of instantaneous values with detail code (binary) - min./max.

  • Page 50: B7 Logger

    B7 Logger The Logger serves for long-term recordings of Via display the status of the logger can be requested. measurement progressions. The user can record This way it's possible to make an assumption how variations of instantaneous values (min/max values) or long the corresponding data recording can continue.

  • Page 51: B8 Menu Overview

    B8 Menu overview 51/66...

  • Page 52: C Operating Instructions Rogowski Coils

    C Operating instructions Rogowski coils Flexible AC Current Probes ACP 3000_5 ACP 3003_5 C1 Safety The following symbols appear on the products: Attention! Refer to Manual Double/Reinforced Insulation Do not apply around or remove from HAZARDOUS LIVE conductors without additional protective means.

  • Page 53: C2 Introduction

    Read all instructions completely before using this product.. To avoid electric shock: • Use caution during installation and use of this product; high voltages and currents may be present in circuit under test. • This product must be used only by qualified personnel practising applicable safety precautions. •...

  • Page 54: C3 Specifications

    Noise 8mV eff. in 30A range 2mV eff. in 300A / 3000A ranges Temperature coefficient ± 0.1% of reading /°C Power supply Provided by CAM mobile Overload Indicated by a red LED Enclosure Material ARNITE T06-200SNF, UL94 V0 Degree of Protection...

  • Page 55: C4 Operation

    C4 Operation C4.1 Measuring current Read safety section of instructions before operating this product. Ensure conductor to be tested is de-energised Connect the output of the electronics to the input of an oscilloscope or other data recording device. The flexible current probe is not for use on conductors with a potential of over 1000V. Wrap the flexible probe around the conductor to be tested, close coupling.

  • Page 56: D Installation Of Pc Software

    D Installation of PC software D1 Installation of CB-Manager software D1.1 For Windows 2000 / Windows XP In the directory CB-Manager on the CD start the program "setup.exe“, which installs both CB-Manager software and USB support. If the software is already installed an appropriate message is displayed.

  • Page 57: D1.2 For Windows Vista / Windows 7

    For the CB-Manager software USB support is required only. All other drivers may be deselected. Click on 'Next' to install the support. At the end of the installation process you may be prompted to reboot your computer. D1.2 For Windows Vista / Windows 7 Windows Vista / Windows 7 may not accept "setup.exe"...

  • Page 58: D1.4 First Run Of The Cb-Manager Software

    D1.4 First run of the CB-Manager software On first startup of the software (and only at this If the interface RS232/RS485 is selected you can time) the following window appears: subsequently define interface parameters. By limiting the possible address range the search for connected devices can be accelerated.
  • Page 59 Windows Vista / Windows 7 Driver is correctly installed, but communication not possible If the driver is installed correctly but the CB-Manager Software is not able to communicate via the USB interface, a problem with user rights may exist. Maybe the file storage of the communication settings on the hard disk is locked as well.

  • Page 60: D1.6 Removing Usb Devices From The Control Panel

    D1.6 Removing USB devices from the control panel Each CAM device once connected to the PC is registered in the operating system. There are various reasons for removing such entries: - The corresponding device has been configured and built-in in the plant. - USB communication with the device doesn't work.

  • Page 61: D2 Installation Of Cb-Analyzer Software

    D2 Installation of CB-Analyzer software The installation of the software comprises two parts. Along with the application software CB-Analyzer the run time environment of Microsoft .NET must be installed in form of the .NET framework. D2.1 Installation of the base software In the directory CB-Analyzer on the CD execute the file setup.exe If the software is already installed an appropriate message is displayed.

  • Page 62: D2.2 Installation Of Microsoft .Net Framework 4

    The installation takes normally a few minutes. The successful completion will be confirmed. Select "Close" to complete the installation. D2.2 Installation of Microsoft .NET framework 4 Windows Vista / 7 The .NET framework is part of the operating system. An installation is required only if there is an older .NET version installed.

  • Page 63: D2.3 First Run Of The Cb-Analyzer Software

    The installation takes normally a few minutes. The successful completion will be confirmed. Select "Finish" for completing the installation. D2.3 First run of the CB-Analyzer software Following the first start-up of the software the communication interface and the data base must be set, before data can be requested from connected devices.

  • Page 64: D2.4 Remedy For Communication Problems

    Now you are able to search for connected devices via the menu system. Then you can start the acquisition of data by clicking on "start". The menu item "endless mode" has the same functionality, but in addition checks from time to time if new data is available tin the devices.

  • Page 65: D3 Turn Off User Account Control Of Windows Vista / 7

    D3 Turn off User Account Control of Windows Vista / 7 65/66...

  • Page 66: E Declaration Of Conformity
