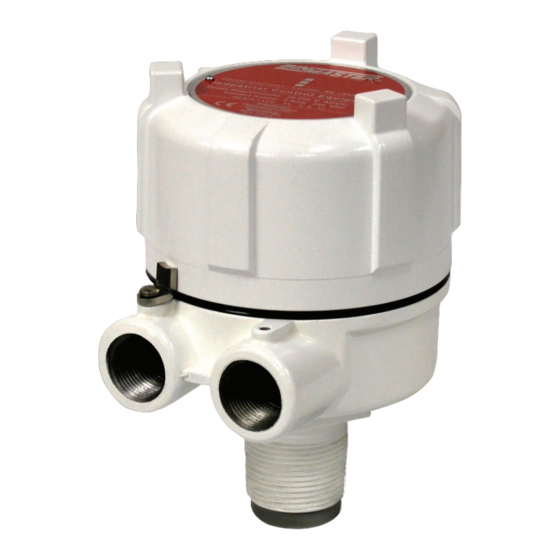

FD-2000 BinMaster

Advertisement

loading
Need help?

Need help?

Do you have a question about the FD-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for BINMASTER FD-2000

Summary of Contents for BINMASTER FD-2000

  • Page 1 Новосибирск (383)227‐86‐73 Тюмень (3452)66‐21‐18 Казань (843)206‐01‐48 Орел (4862)44‐53‐42 Ульяновск (8422)24‐23‐59 Калининград (4012)72‐03‐81 Оренбург (3532)37‐68‐04 Уфа (347)229‐48‐12 Калуга (4842)92‐23‐67 Пенза (8412)22‐31‐16 Челябинск (351)202‐03‐61 Кемерово (3842)65‐04‐62 Пермь (342)205‐81‐47 Череповец (8202)49‐02‐64 Киров (8332)68‐02‐04 Ростов‐на‐Дону (863)308‐18‐15 Ярославль (4852)69‐52‐93 Единый адрес: bta@nt-rt.ru Веб‐сайт: www.binmaster.nt-rt.ru FD-2000 BinMaster...
  • Page 2 Solids Flow Detect Model FD-2000 925-0322 Rev C 0415...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY SUMMARY ......................3 SPECIFICATIONS ......................4 1.0 INTRODUCTION/DESCRIPTION................5 2.0 LOCATION AND MOUNTING ..................5 3.0 CONNECTIONS AND WIRING ................... 8 5.0 CONTROLS AND INDICATORS ................10 6.0 CALIBRATION PROCEDURE................... 12 925-0322 Rev C 0415...

  • Page 4: Safety Summary

    SAFETY SUMMARY Review the following safety precautions to avoid injury and prevent damage to the equipment. The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install according to installation instructions and comply with all National and Local codes. Use electrical wire that is sized and rated for the maximum voltage and current of the application.

  • Page 5: Specifications

    SPECIFICATIONS Power Requirements: 2.0 Watts at 24 VDC +/-10% Operating Temperature: -22°F to +140°F (-30°C to +60°C) Storage Temperature: -40°F to +176°F (-40°C to +80°C) Detection Range: 1.5 m (4.9 ft) Output Delay Range: Switchable: 0.1 to 3.1 sec / 2.3 to 15.1 sec Relay Outputs: 250 VAC / 220 VDC / 2A 4-20mA Output:...

  • Page 6: Introduction/Description

    Therefore, in some installations where this situation may occur, a me- tallic material will need to be placed on the opposite side of the pipe or chute to prevent the FD-2000 from seeing objects on the other side. Adjusting the sensitivity of the FD-2000 to a lower setting may eliminate the sensing of moving objects on the other side of a nonmetallic pipe or chute.
  • Page 7 Good Mounting Practice Metal shield will Material flows away inhibit detection of from sensor. Non- external movement. contact with sensor. Non-metallic pipe Material flows away Metal pipe will reflect from sensor. signal which eliminates detection of external movement. Metallic pipe Poor Mounting Practice Non-mettallic pipe without a Avoid flow towards...
  • Page 8 If necessary, a suitable seal made of nonmetal- lic material should be provided for this opening. For some installations, the seal provided on the FD-2000 sensor would be adequate. Care must be taken so as not to exceed the pressure or temperature rating of the FD-2000.

  • Page 9: Connections And Wiring

    Figure 3 24 VDC The FD-2000 requires about 2.0 watts of power from a 24 VDC +/-10% source. Refer to Figure 3 for location of these two terminals. Connect the negative of the 24 VDC power source to the far left terminal labeled with the minus sign. Connect the positive to the terminal labeled with the plus sign.
  • Page 10 OUT and FAULT Each of the OUT and FAULT terminals offer an SPDT relay which provides dry contacts for operation of external controls or equipment. Terminal connections are available for the common (C), the normally open (NO) and the normally closed contacts (NC). Refer to Fig- ure 3 for location of these terminals.

  • Page 11: Controls And Indicators

    Controls and Indicators All user controls and indicators are visible by removing the enclosure cover. Refer to Figure 5 for location of the controls and indicators. Figure 5 Following is a list of controls and indicators available: FLOW Indicator – This is to assist in adjusting the sensitivity by indicating the margin between the no-flow and flow conditions.
  • Page 12 the FAULT relay. When the FAULT indicator is off, the FAULT relay is de-energized. When the FAULT indicator is on, the FAULT relay is energized. Also, the 4-20mA current output will be at 22mA when in the FAULT condition. POWER Indicator – This is a green LED and simply indicates when power is applied to the unit. SENSITIVITY Control –...

  • Page 13: Calibration Procedure

    Calibration Procedure With the sensor mounted in position and wired, unscrew the enclosure cover to expose the control plate. Then follow these steps: 1. Start with the DIP switches set as follows: a. Switch 1 on for a FLOW OUTPUT. b.
  • Page 14 LIMITED WARRANTY Garner Industries warrants this product against defects in material and workman- ship for two (2) years according to the following terms; 1.) This warranty extends to the original purchaser only and commences on the date of original purchase. 2.) Garner Industries sole obligation under said warranty is to repair, or at its option replace the defective parts.
  • Page 15 Declaration of Conformity BinMaster declares that all models of the FD-2000 flow sensor devices as listed below comply with the following directives and harmonized standards. This product if installed, operated and maintained as described in this manual will provide a safe and reliable bulk solids flow / no flow sensor for a variety of materials.
