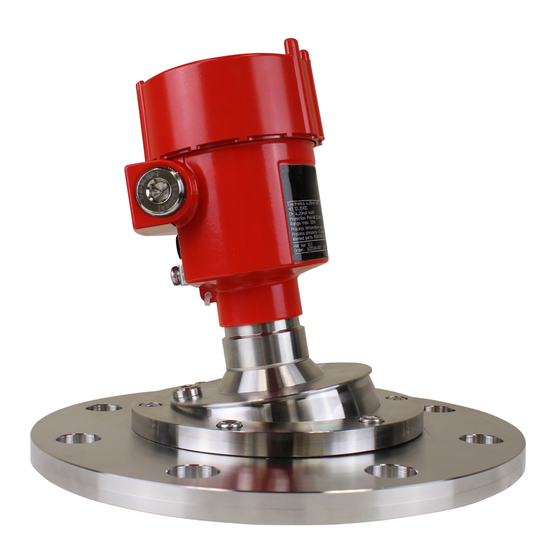

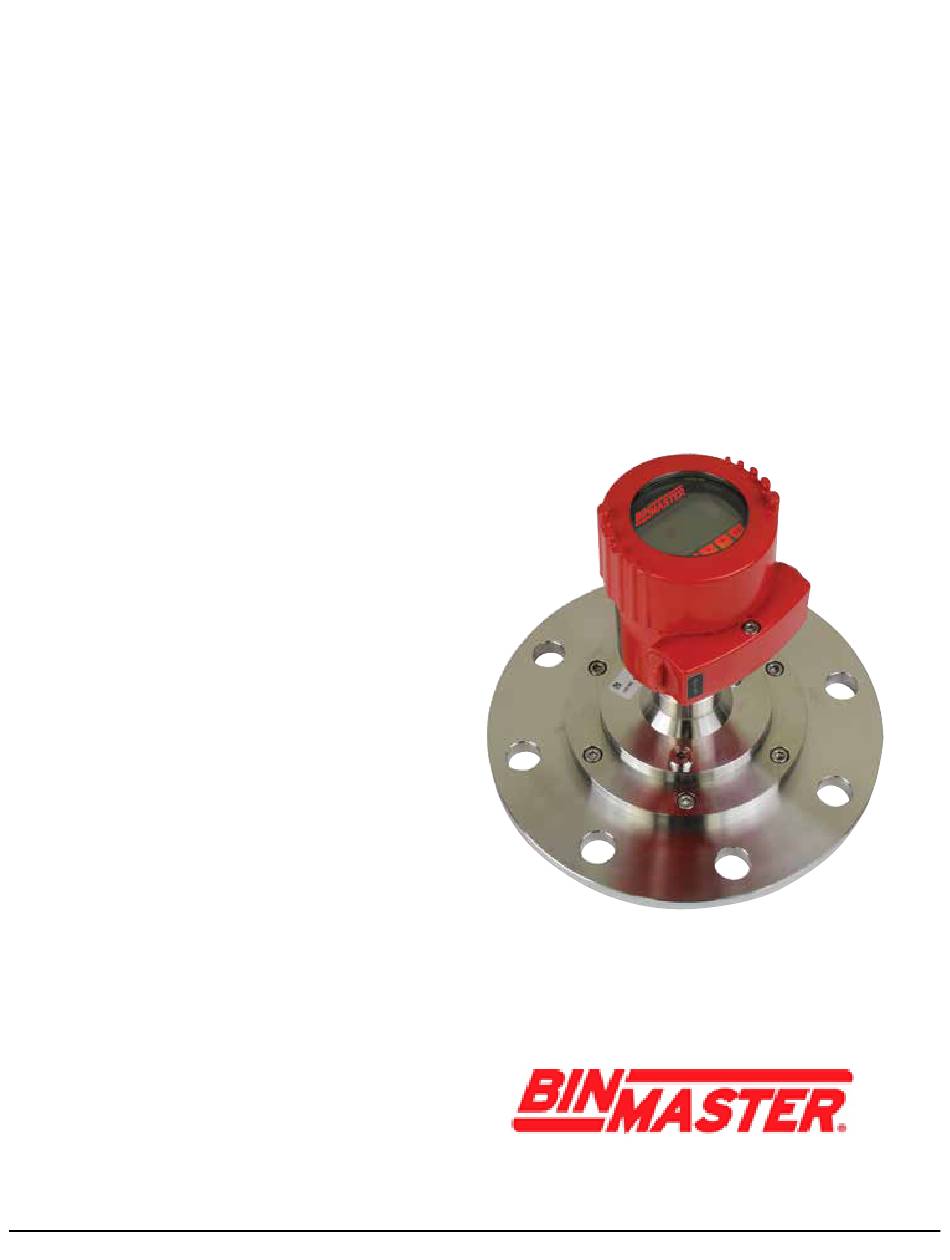

Operating Instructions
Radar sensor for continuous level
measurement of bulk solids
NCR-80
Two-wire 4 - 20 mA/HART
Document ID: 925-0338 Rev B
NCR-80 Two-Wire 4-20 mA/HART
