SET COMMUNICATION:

By Pressing the "Set Communication" button from the main window for SW67D40
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for the "LoRaWAN" section are:
In the field "RF Band" the wireless band used for LoRaWAN communication
is defined;
In the field "Network Type" the type of LoRaWAN network is defined;
If the field "Adaptive Data Rate" is checked, the converter will enable the
ADR functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field "Data Rate" the data rate for LoRaWAN communication is
defined;
In the field "Transmission
defined;
In the field "Max Payload
messages is defined (fixed in relation to the data rate selected);
In the field "JoinEUI" the ID of the application server is defined;
In the field "Activation
network is defined;
In the field "Device Address" the device identifier (DevEUI) is defined (only
for ABP method);
In the field "Network Session
with the LoRaWAN gateway (NwkSKey) is defined (only for ABP method);
In the field "Application Session
decryption of the payload (AppSKey) is defined (only for ABP method);
If OTAA method is selected, in the field
the dynamic activation of the converter in the LoRAWAN network is defined.
ADFweb.com S.r.l.
Type" the type of LoRaWAN communication is
Size" the maximum dimension of the LoRaWAN
Method" the method used to join into a LoRaWAN
Key" the key used for the communication
Key" the key for encryption and
"Application Key" the secret key for
User Manual LoRaWAN / SNMP Manager
Document code: MN67D40_ENG Revision 1.000

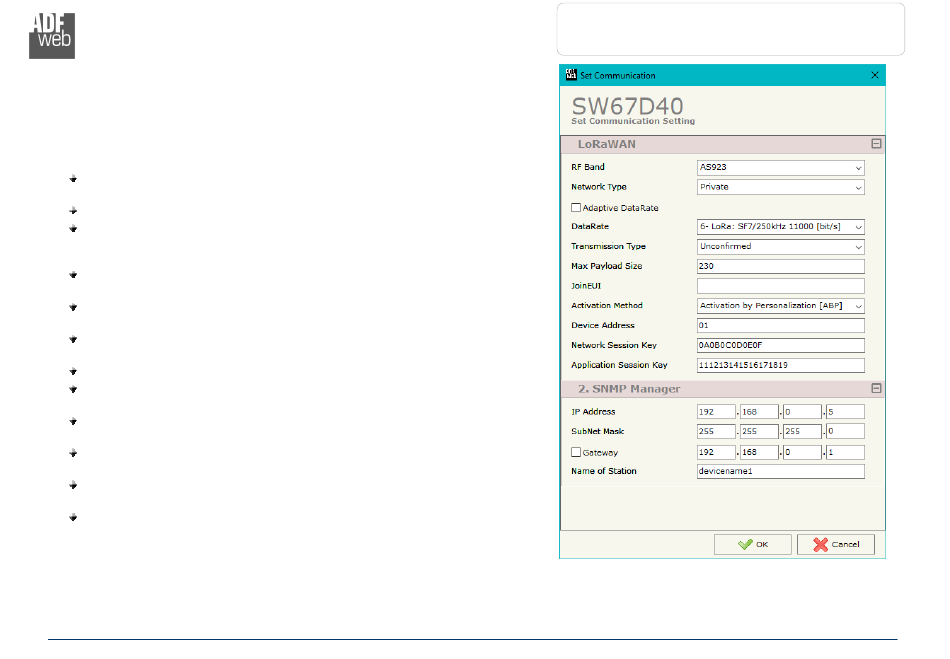

Figure 3: "Set Communication" window
