SET COMMUNICATION:

By Pressing the "Set Communication" button from the main window for SW67C54 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for the "Modbus TCP Slave" section are:
In the fields "IP ADDRESS" the IP address of Modbus TCP side of the converter is
defined;
In the fields "SUBNET
defined;
In the fields "GATEWAY" the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field "Port" the port used for Modbus TCP communication is defined.
ADFweb.com S.r.l.
Mask" the SubNet Mask of Modbus TCP side of the converter is
User Manual EnOcean / Modbus TCP Slave
Document code: MN67C54_ENG Revision 1.000

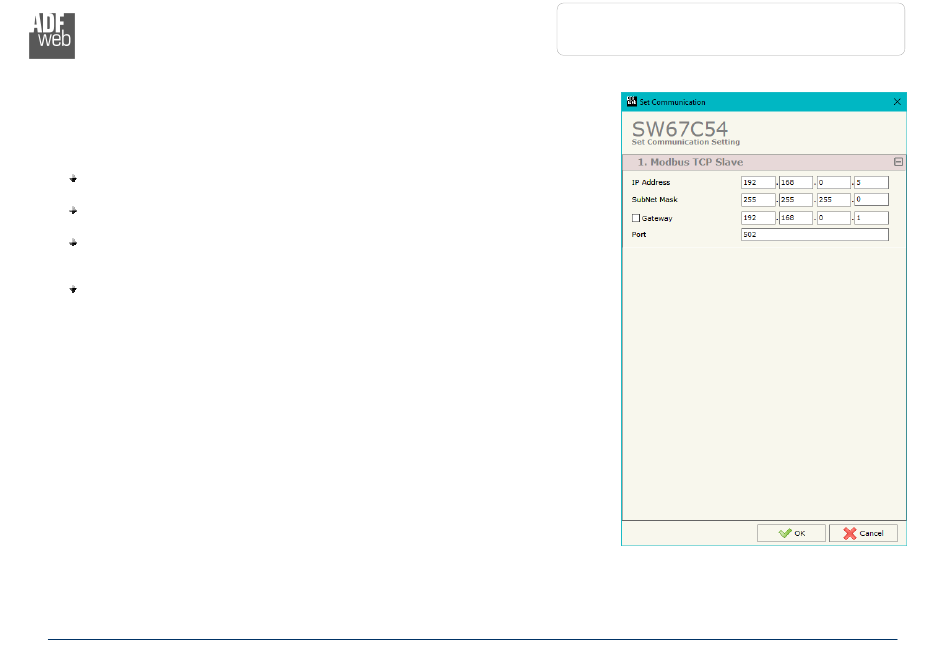

Figure 3: "Set Communication" window
