SET COMMUNICATION:

This section define the fundamental communication parameters of two buses,
EtherCAT and EtherNet/IP.
By Pressing the "Set Communication" button from the main window for SW67E26
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision
defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means of the fields for "EtherNet/IP Master" are:
In the fields "IP ADDRESS" the IP address for EtherNet/IP side of the
converter is defined;
In the fields "SUBNET
converter is defined;
In the fields "GATEWAY" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port used for EtherNet/IP communication is defined.
The port has a fixed value of 44818.
ADFweb.com S.r.l.
Number" the revision number of the converter is
Mask" the SubNet Mask for EtherNet/IP side of the
User Manual EtherCAT Slave / EtherNet/IP Master
Document code: MN67E26_ENG

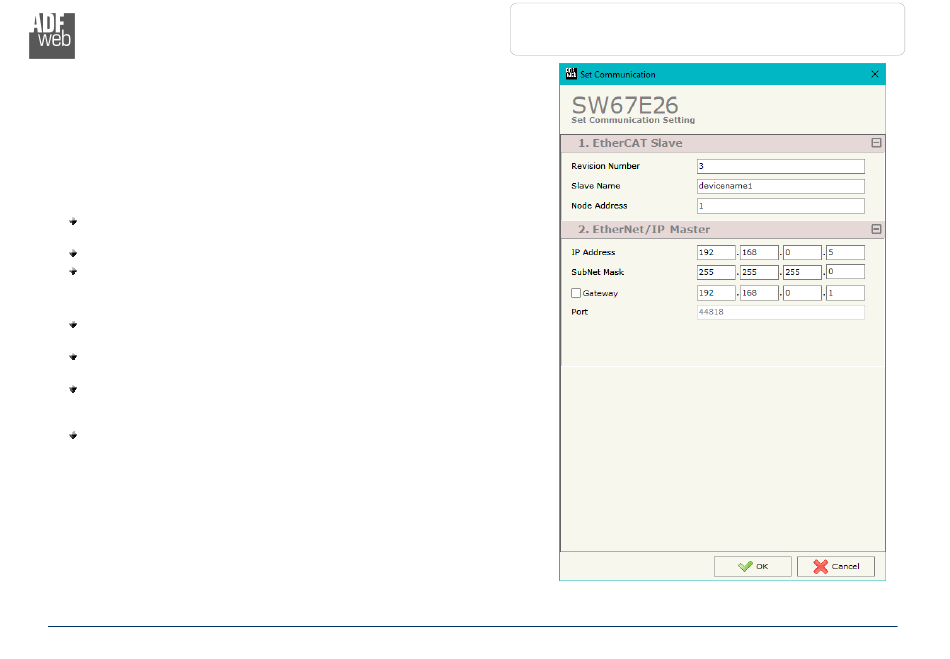

Figure 3: "Set Communication" window
