For models ZIFI240 and ZIBI240 with Custom Door Panels and Handles

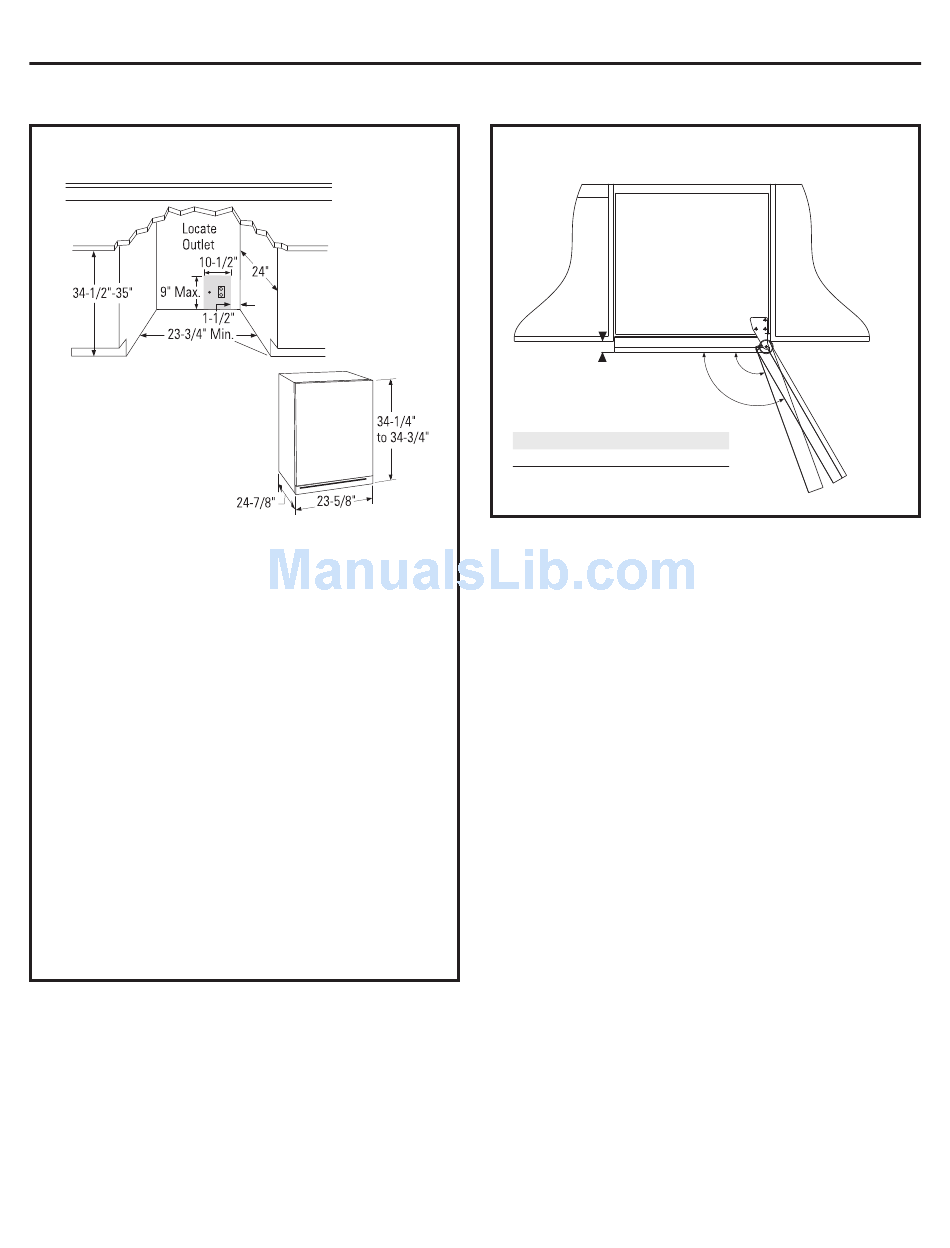

THE INSTALLATION SPACE

NOTE: If installing between
frameless cabinets, a 1/2"
wide filler strip or side panel
may be needed on the hinge
side. The filler strip will act as
a spacer between the door
case and adjacent cabinet
and will prevent interference
with the cabinet door swing.
The width of the opening
must include the filler panels.
The product must be installed so that the custom panel front will
project 2-3/4" forward of adjacent cabinets. This position will allow a
full door swing and prevent interference with adjacent cabinetry. The
opening between cabinets must be 23-3/4" minimum. These models
can not be installed flush in 24"-deep cabinets.
• All models may be used freestanding.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch circuit
or circuit breaker is recommended. Install a properly
grounded 3-prong electrical receptacle recessed into
the back wall as shown. Electrical must be located on
rear wall as shown. NOTE: GFCI (ground fault circuit
interrupter) is not recommended.
Black or Stainless Steel Toekick Options
• These products are shipped with a stainless steel toekick
and a black toekick. For shipping purposes, one of the
toekicks will be secured to the back of the unit, and the
second will be installed on the unit. Keep the unused
toekick and any unused parts for future use.
Design Guide
NOTE:
Water line location for
ZIBI240 model only
6
THE INSTALLATION SPACE (cont.)
Standard
Installation
CABINET
Front edge of product case
Dim. A
Front face
In a standard installation, the product
will project forward of adjacent
cabinets. See Dim. A.
Product
ZIFI240
ZIBI240
CABINET
110°
120°
Dim. A
2-3/4"
2-5/8"
