For models ZIFS240 and ZIBS240 with Stainless Steel Doors and Handles

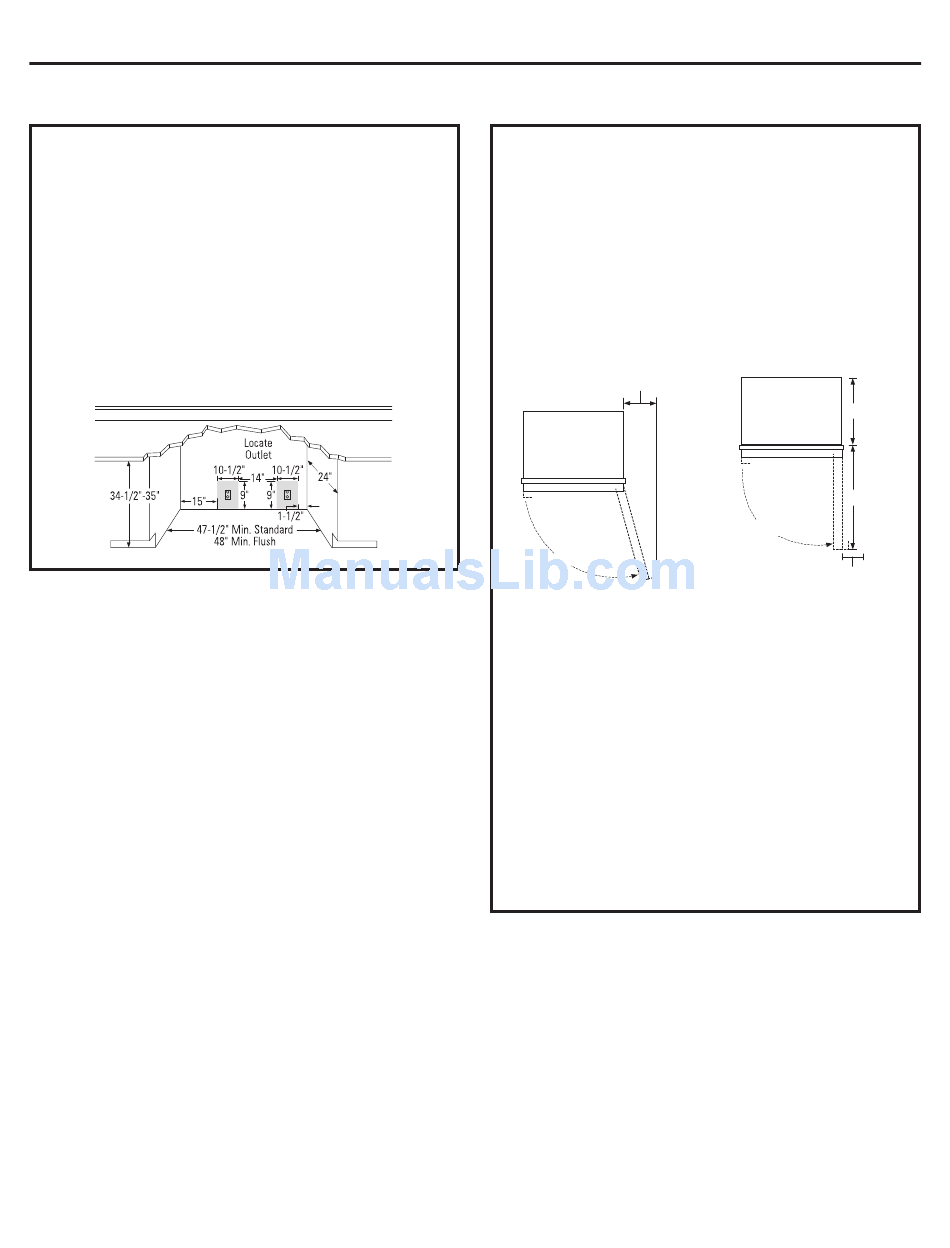

SIDE-BY-SIDE INSTALLATIONS

For a complete refreshment center, install a Fresh-Food
Refrigerator beside a Double-Drawer Refrigerator,
Beverage Center or Wine Chiller/Wine Reserve. Or, install
a Refrigerator with Icemaker beside a Wine Chiller/Wine
Reserve.
• A side-by-side installation requires at least a 47-1/2"-
wide minimum opening for standard installation and
48"-wide minimum opening for flush installation. No
trim kits required.
• Products must operate from separate, properly
grounded receptacles.
Design Guide

PRODUCT CLEARANCES

The Fresh-Food Refrigerator or Bar Refrigerator with
Icemaker is factory set for a 110° door swing.
When installed in a corner:
• Allow 14" minimum clearance on the hinge side
for a full 110° door swing.
• Allow 4" min. clearance on the hinge side for
the 90° door swing and to allow racks to slide out.
NOTE: Clearances are based on the recommended
2-1/4" handle standoff depth.
110 Door
Swing
110
NOTE: Right-hand models illustrated. Allow the same
clearances on the opposite side for left-hand fresh food
models ZIFI240 and ZIFS240 only. Models ZIBI240 and
ZIBS240 are not available with left-hand door swing.
• Test the door swing. Carefully open and close the door.
The door should not rub or catch on adjacent cabinetry.
Choose the location:
• These products may be closed in on the top and
three sides as long as the front is unobstructed for
air circulation and proper access to the door.
• Do not install these products where the temperature
will go below 55°F (13°C) or above 90°F (32°C).
• These products are not designed to be stacked one
over the other.
5
14" Minimum to Wall
90 Door
21-5/8"
Swing
23-5/8"
90
4" Minimum to Wall
