ZIBI240PII – GE Monogram Bar Refrigerator with Icemaker Module
(Custom panel required)
ZIBS240PSS – GE Monogram Bar Refrigerator with Icemaker Module

(Stainless steel)

Dimensions and Specifications (in inches)

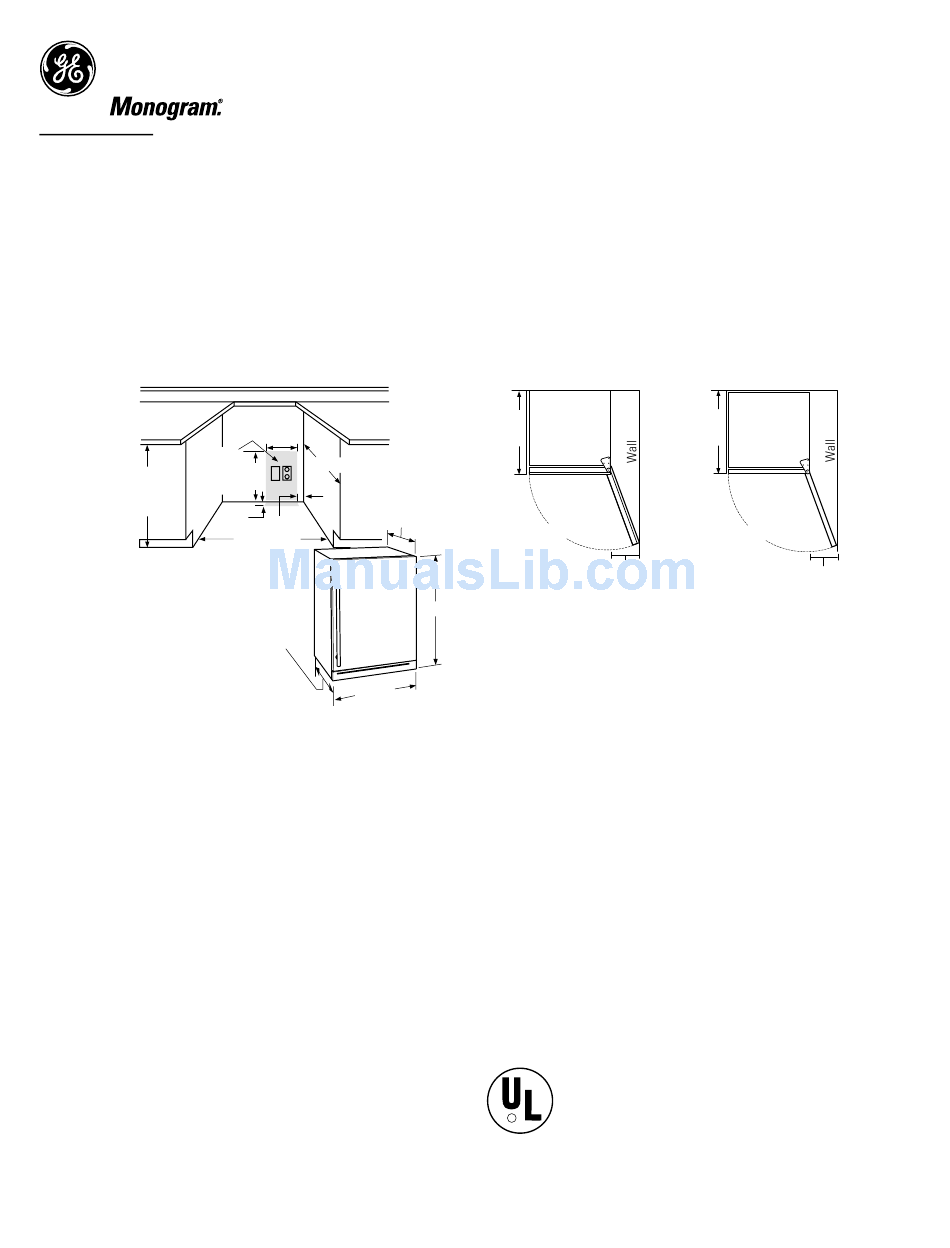

Installation Space

Water and
Electrical
34-1/2"
Locations
to
35"
Depth Including
Handle:
26" Stainless Steel
Models Only
Note: If installing between frameless
cabinets, a 1/2" wide filler strip or side panel
may be required. The filler strip will act as a
spacer between the door case and adjacent cabinet
and will prevent interference with cabinet door swing.
The width of the opening must include filler panels.
The cutout depth must be 24"
The cutout dimensions shown allow for a full door swing and
access to the pull-out racks when installed as a built-in.
• The Bar Refrigerator with Icemaker can be free-standing.
• The stainless steel model ZIBS240PSS can be installed flush
with standard cabinetry. ZIBI240PII with custom panel will
project forward 1-3/4" of adjacent 24" deep base cabinets.
• A water line must be installed for icemaker operation.
Additional Specifications:
• A 120 volt 60Hz., 15 or 20 amp power supply is required. An
individual property grounded branch circuit or circuit breaker is
recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall as shown. Electrical
must be located on rear wall as shown. Note: GFI (ground fault
interrupter) is not recommended.
Specification Created 3/04
120034
Locate Outlet
10-1/2"
24" Min.
9"
Max.
23-3/4" Stainless Steel
Models
1/2"
24-7/8" Framed Models
1-1/2"
23-3/4" Min.
23-3/4"

Product Clearances

Models with a Custom
Door Panel
24"
Cabinet
110˚
16" Minimum
All models are factory set for a 110° door swing.
34-1/2"
For a minimum 90° door swing:
• Allow 4" min. clearance to wall on the hinge side for Stainless
Steel models.
• Allow 4-1/2" min. clearance to wall on the hinge side for models
with a custom panel and custom handle.
For a full 110° door swing:
• Allow 14" min. clearance to wall on the hinge side for Stainless
Steel models.
• Allow 16" min. clearance to wall on the hinge side for models with
a custom panel and custom handle.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
®
GEAppliances.com or call GE Answer Center
service, 800.626.2000.
Stainless Steel
Models
24"
Cabinet
110˚
14" Minimum
GE Profile or
® ™
®
