Side-By-Side Installations; Product Clearances - Monogram ZIBI240PII Installation Instructions Manual

For models ZIFI240 and ZIBI240 with Custom Door Panels and Handles

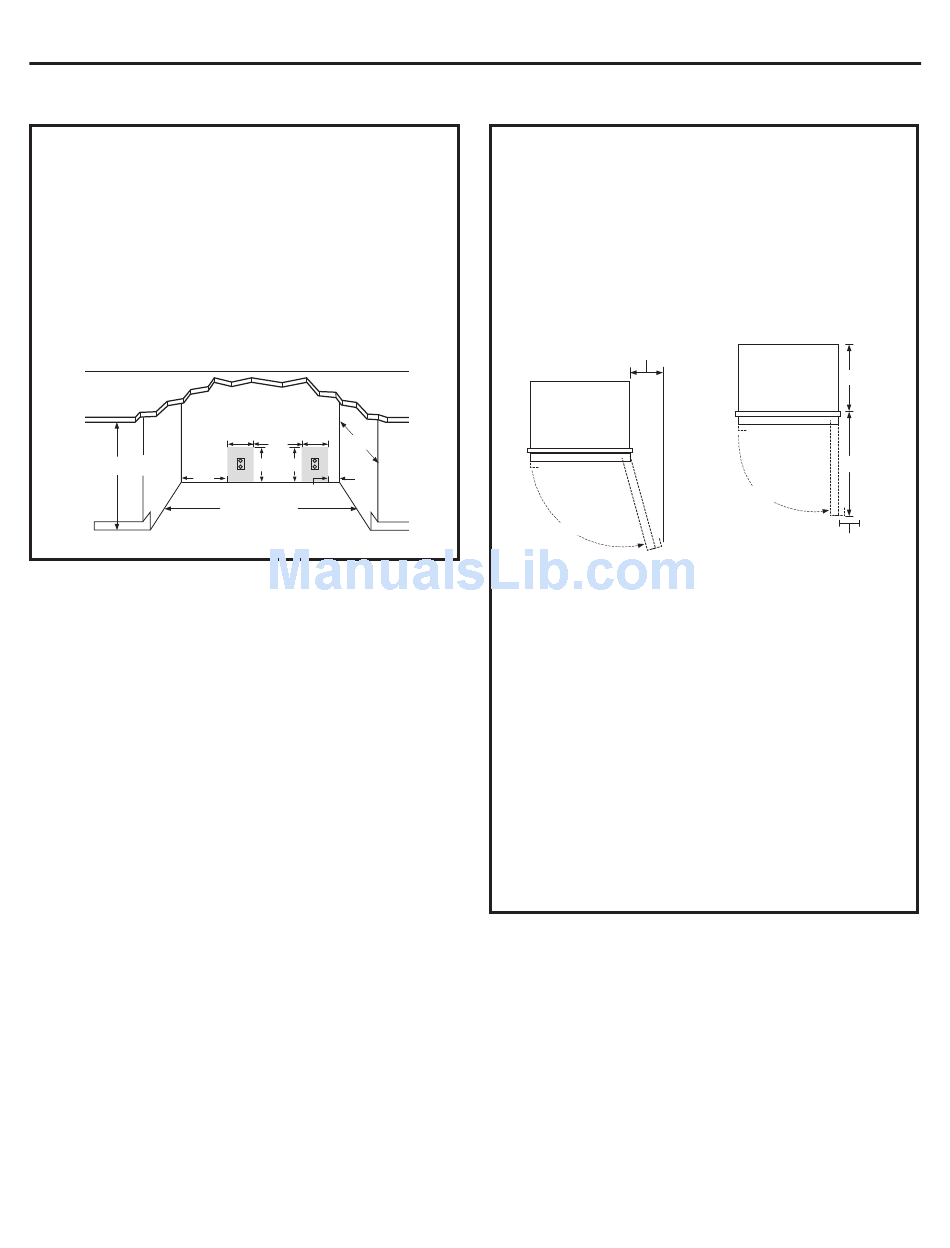

SIDE-BY-SIDE INSTALLATIONS

For a complete refreshment center, install a Fresh-Food
Refrigerator beside a Double-Drawer Refrigerator,
Beverage Center or Wine Chiller/Wine Reserve. Or, install
a Refrigerator with Icemaker beside a Wine Chiller/Wine
Reserve.
• A side-by-side installation requires at least a 47-1/2"-
wide opening. No trim kits required.
• Products must operate from separate, properly
grounded receptacles.
10-1/2"
34-1/2"-35"
15"
47-1/2" Min.
Design Guide
Locate
Outlet
10-1/2"
24"
14"
9" 9"
1-1/2"

PRODUCT CLEARANCES

The Fresh-Food Refrigerator or Bar Refrigerator with
Icemaker is factory set for a 110° door swing.
When installed in a corner:
• Allow 16" minimum clearance on the hinge side
for a full 110° door swing.
• Allow 4-1/2" min. clearance on the hinge side for
the 90° door swing and to allow racks to slide out.
NOTE: Custom handle clearances may vary.
16" Minimum to Wall
110 Door
Swing
110
NOTE: Right hand models illustrated. Allow the same
clearances on the opposite side for left hand fresh food
models ZIFI240 and ZIFS240 only. Models ZIBI240 and
ZIBS240 are not available with left hand door swing.
• Test the door swing. Carefully open and close
the door. The door should not rub or catch on adjacent
cabinetry. NOTE: When installing custom panel and
handle, use above clearances as a general guide but
adjust according to the installation.
Choose the location:
• These products may be closed in on the top and
three sides as long as the front is unobstructed for
air circulation and proper access to the door.
• Do not install these products where the temperature will
go below 55°F (13°C) or above 90°F (32°C).
• These products are not designed to be stacked one
over the other.
7
90 Door
21-5/8"
Swing
23-5/8"
90
4-1/2" Minimum to Wall
