METHVEN Amio 01-4057 Installation Manual

Technical Specifications
Mixer and Hose Assembly
Inlet Connections: All 1/2' BSP
Operating Pressure: 150kPa - 500kPa
Operating Temperatures: Recommended hot water supply 50°C,
maximum 70°C. AS 3500 requires all hot
water supplies to any sanitary fitting to be
tempered to 50°C.
BRASS
Hose Requirements for mixers
BASE RING
The maximum working pressure of the ceramic cartridge is 1000kPa.
Do not hydrostatic test the installation with this mixer installed. Damage to
the ceramic cartridge may occur.
Cold
"In situ" testing
The maximum working pressure of the ceramic cartridge is 1000kPa. Do not
hydrostatic test the installation with this mixer installed. Damage to the ceramic
cartridge may occur, voiding our warranty.
NOV 2009
Methven Australia Pty Ltd
ABN 15 104 813 390
We recommend that this product is installed by a licensed plumber.
Melbourne, Australia
www.methven.com
Ø 35mm
(1 ")
3/8
IMPORTANT
Hot
Please read all of the instructions before installation
Use of this product in non-domestic applications voids warranty.
All pipe work must be thoroughly flushed prior to the installation of the mixer.
NEFA inline filters must be installed on both hot and cold supplies.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by our warranty.
MA433401

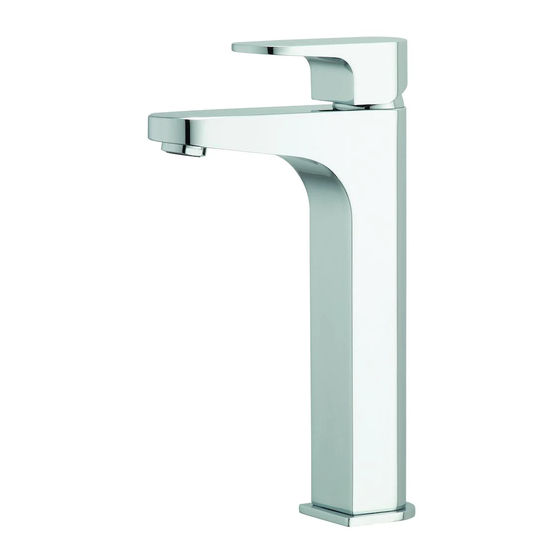

Hi Rise Basin Mixer

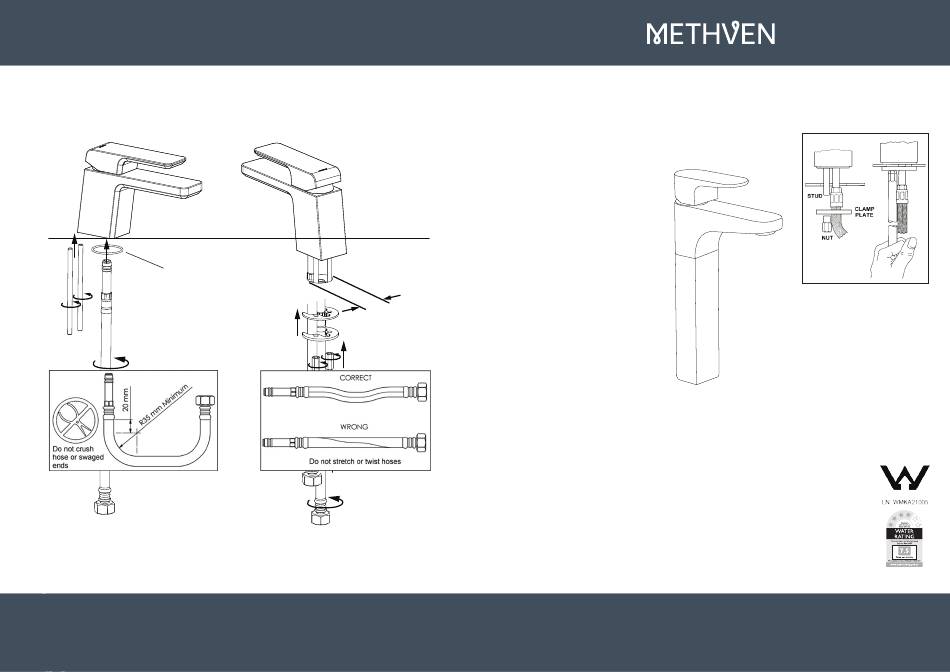

Installation
Āmio 01-4057
1. A single 35mm diameter hole is required in the
mounting surface. The mounting surface can be a
Rere 01-3043
maximum of 40mm thick.
2. Screw the threaded studs into the base of the mixer.
Insert the O ring into the groove in the the base ring
and fit the base ring to the bottom of the mixer.
3. If fitting optional chrome base flange where supplied
discard brass base ring.
4. Insert the flexible hoses through the hole in the
mounting surface (from the underside) and screw
them into the base of the mixer.
5. Position the base Flange (if used) under the mixer.
6. Feed the threaded studs through the hole in the
mounting surface. Fit the mounting gasket and
mounting plate onto the threaded rods.
Illustration may not reflect actual product shape.
7. Tighten the mounting nuts to secure the mixer in
Installation Guide
place.
8. Connect the flexible hoses to the hot and cold
supplies (hot on the left, cold on the right).
