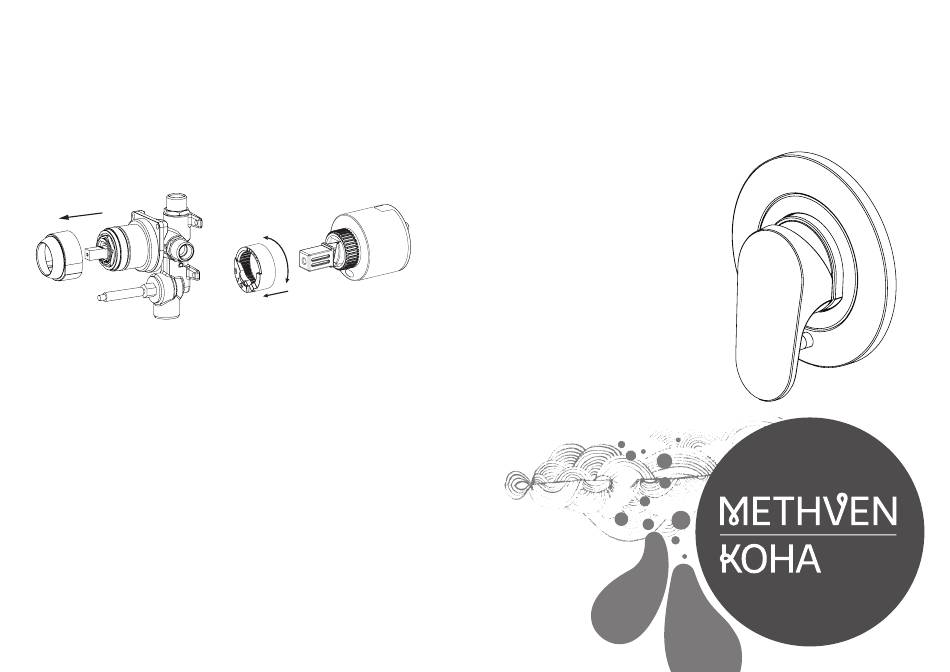

CERAMIC CARTDRIDGE ADJUSTMENT
Do not remove the ceramic cartridge from the body assembly while carrying out the following
adjustments.
NOTE: The cartridge is factory set for maximum temperature
Remove half-dome (if attached)
Methven warrants this product against manufacturing defects and that it is suitable for use
under the operating conditions specified in this instruction sheet.
For your warranty please refer to www.methven.com or call Customer Service
New Zealand
Australia
0800 804 222
1300 638 483
436630
Mix temperature limit
_
+
USA
UK
1800 975 5409
0800 195 1602
Issue C

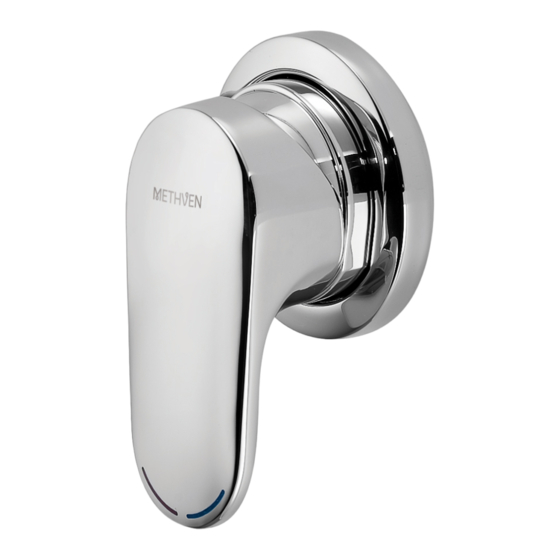

KOHA SHOWER MIXER WITH DIVERTOR
INSTALLATION GUIDE
TECHNICAL SPECIFICATIONS
Operating Pressure:
Min 150 kPa, Max 1000 kPa.
Recommended 150-500kPa.
Recommended installation of a pressure
limiting valve if supply exceeds 500kPa.
Operating Temperature:
Hot: Min 55°C (at mixer), Max 80°C.
Cold: Min 5°C.
NB: New Zealand Building Code Clause G12 -
Water Supplies specifies all outlets used
primarily for personal hygiene shall deliver
water at a safe temperature.
Inlet Connections:
All ½" BSP.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for METHVEN KOHA
Summary of Contents for METHVEN KOHA
- Page 1 Inlet Connections: All ½" BSP. Methven warrants this product against manufacturing defects and that it is suitable for use under the operating conditions specified in this instruction sheet. For your warranty please refer to www.methven.com or call Customer Service...
- Page 2 IMPORTANT Please read all of the instructions before installation Hole cutout 102mm Avoid restrictive piping, fittings or sharp angled bends when plumbing the mixer. Do not hydrostatic test the installation with this mixer installed. Damage to the ceramic cartridge may occur. Distance from mounting stud to front of lining: All pipe-work must be thoroughly flushed prior to installation of the mixer.
