METHVEN Aio AOBCP Installation Manual

Equal High Pressure (mains) Installation:

Install mixer as supplied

Unequal Pressure and Equal Low Pressure Installation*:

Remove flow restricted (yellow) stream shaper using cache key.
Replace with unrestricted (white) stream shaper.

Unequal Pressure Installation*:

Cold
Install the brass nipple into the cold inlet hose.
*Note: Unrestricted stream shaper and brass nipple not included in some regions.

Care and Cleaning:

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with
contamination free warm soapy water and a damp soft cloth.
Periodically the stream shaper should be removed as shown above and cleaned under running water.
Methven warrants this product against manufacturing defects and that it is suitable for use
under the general operating conditions specified in this instruction sheet. However, regional
regulations apply and may affect your warranty. Please refer to www.methven.com or call
customer service for full details.
New Zealand
0800 804 222
435900
Australia
1300 638 483

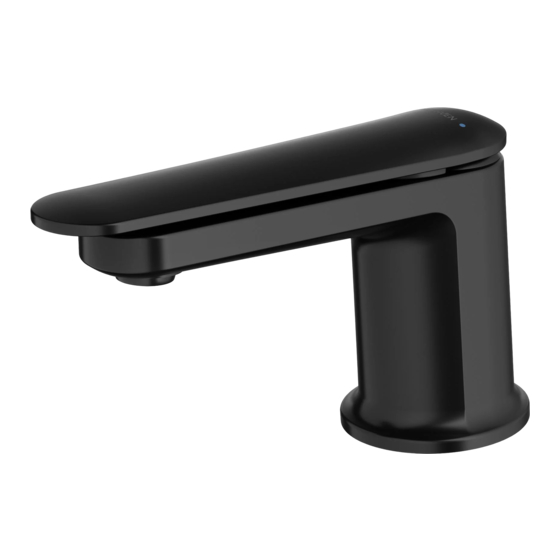

AIO BASIN MIXER
Installation Guide
Technical Specifications:
Operating Pressure:
Min: 35kPa/0.35bar
Max: 1000kPa/10bar*
Optimum: 150kPa/1.5bar - 500kPa/5bar
Operating Temperature:
Hot: Max 80°C*
Cold: Min 5°C
Inlet Connections:
All ½" BSP
* Regional specific regulations apply.
Please refer to your warranty statement at
www.methven.com
UK
0800 195 1602
ISSUE A
