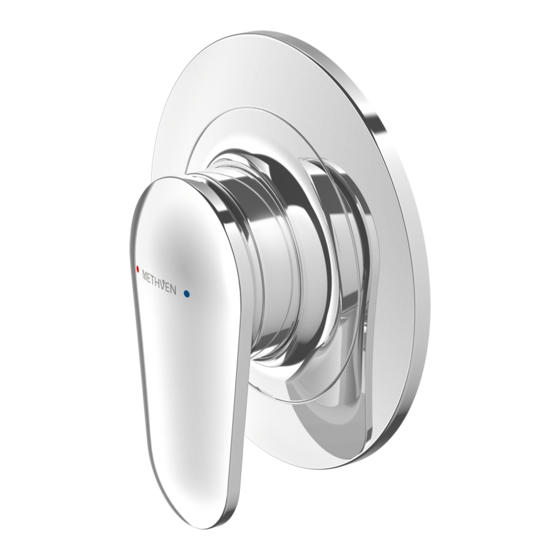

METHVEN Aio Shower Mixer with Fastflow Installation Manual

Jet Selection:
Unequal Pressure Systems
1.
If the system is supplied by a pressure pump, ensure that the pump can maintain 300kPa at the
cold Inlet. If not, install a low pressure cold feed and install the mixer as if for a low pressure
equal system.
2.
If the Cold pressure is ABOVE 400kPa, install the mixer without modification (i.e. with red nozzle
as factory fitted.)
3.
If the Cold pressure is BELOW 400kPa, replace the Red Nozzle with the Blue Nozzle supplied in
the carton.
a) To remove a nozzle from the mixer body fit a 6mm hex key into the hexagon outlet of the nozzle
and turn anti-clockwise until the nozzle comes free of the mixer body.
b) Fitting a nozzle is the reverse procedure to removal. The nozzle is in the correct position when
approximately 2mm of the nozzle protrudes from the outlet of the mixer. Do not use excessive
force when fitting the nozzle, it should turn freely. Screw in until just tight and then unscrew half a
turn.
Equal Pressure Systems
.
Remove and discard nozzle from mixer
Care and Cleaning:
Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with
contamination free warm soapy water and a damp soft cloth.
Methven warrants this product against manufacturing defects and that it is suitable for use
under the general operating conditions specified in this instruction sheet. However, regional
regulations apply and may affect your warranty. Please refer to www.methven.com or call
customer service for full details.
New Zealand Australia
AIO SHOWER MIXER WITH FASTFLOW
Installation Guide
Technical Specifications:
Operating Pressure:
Unequal Pressure:
Hot: Min 35kPa
Cold: Min 300kPa
Equal Pressure:
Min 35kPa
If supply exceeds 500kPa a pressure limiting
valve must be installed.
Operating Temperature:
Hot: Min 55°C (at mixer), Max 80°C
Cold: Min 5°C
Inlet Connections:
All ½" BSP
* Regional specific regulations apply.
Please refer to your warranty statement at
www.methven.com
UK
ISSUE B
www.methven.com
