METHVEN AIO Installation Manual

Step 5
• Screw the grub screw into the diverter knob, ensuring it
does not protrude out of the knob or into the threads.
•
Rotate the brass diverter spindle fully
counter-clockwise.
•
Screw the knob onto the brass diverter spindle until it
touches the faceplate. Unscrew approximately 1mm (1
turn) to a position such that the handle of the knob is
pointing vertically upwards.
•
To secure the diverter knob, tighten grub screw firmly
with the hex key provided.
Step 6
• Push handle on to cartridge lever, and tighten grub
screw firmly with hex key provided.
Care and Cleaning:
Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with
contamination free warm soapy water and a damp soft cloth.
Methven warrants this product against manufacturing defects and that it is suitable for use
under the general operating conditions specified in this instruction sheet. However, regional
regulations apply and may affect your warranty. Please refer to www.methven.com or call
customer service for full details.
New Zealand
0800 804 222
435931
Australia
1300 638 483 0800 195 1602

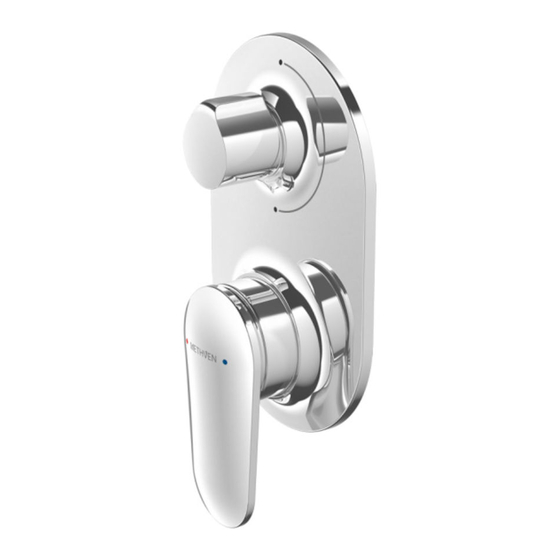

AIO SHOWER MIXER WITH DIVERTER
Installation Guide
Technical Specifications:
Operating Pressure:
Min: 150kPa/1.5bar
Max: 1000kPa/10bar*
Optimum: 150kPa/1.5bar - 500kPa/5bar
Operating Temperature:
Hot: Max 80°C*
Cold: Min 5°C
Inlet Connections:
All ½" BSP
* Regional specific regulations apply.
Please refer to your warranty statement at
www.methven.com
UK
ISSUE A
