METHVEN Aroha 01-9106 Installation Manual

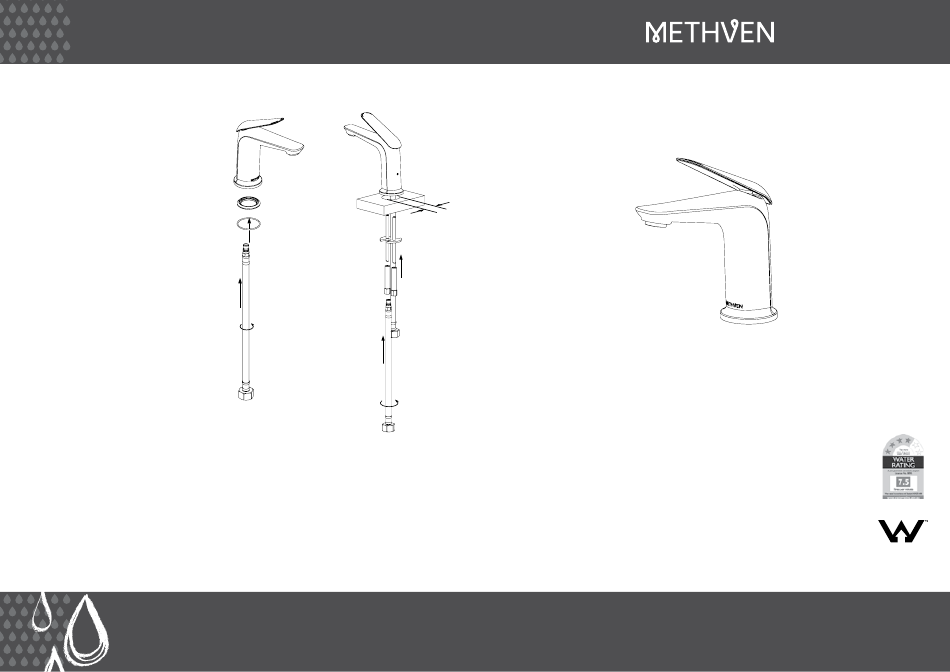

Installation
Tip: Install product on bench before
connecting second hose to mixer.
1. Cut a single 35mm diameter hole into
the mounting surface.
2. Insert o-ring into the groove in the
bottom of the base ring, fit the base
ring to the bottom of the mixer and
connect hose.
3. Feed the mixer's hose through the hole
cut in the mounting surface.
4. Position the mixer where required and
connect twin stud fixing kit. Tighten in
place from under the mounting
surface.
5. Insert the remaining flexible hose
through the hole in the mounting
surface (from the underside) and screw
it into the base of the mixer.
6. Connect the flexible hoses to the hot
and cold supplies (hot on the left, cold
on the right).
Note: It is recommended that inline
filter washers supplied are fitted
during this connection.
JUNE 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
ø35mm Min
ø38mm Max
Hot
Cold
MA019106

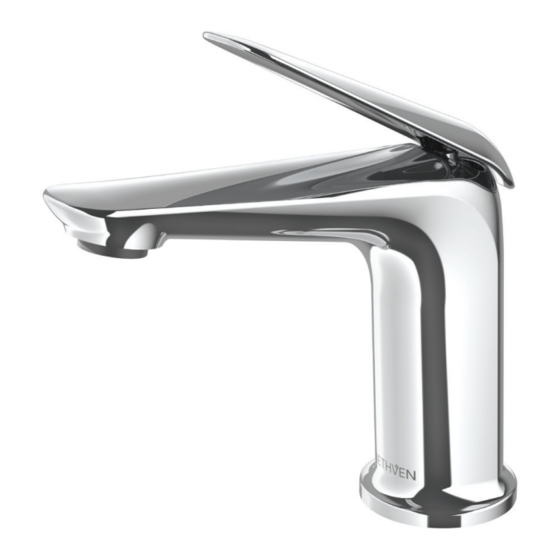

Aroha Basin Mixer
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-9106
