SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA
Server and Ethernet/IP Master.
By Pressing the "Set Communication" button from the main window for SW67B38
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Server" are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the server
address is define by URL and not IP Address.
In the field "Port" the port used for OPC UA communication is defined.
The means of the fields for "EtherNet/IP Master" are:
In the field "IP Address" the IP address for EtherNet/IP side of the converter is
defined;
In the field "SubNet
converter is defined;
In the field "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "Port" the port used for EtherNet/IP communication is defined.
The means of the fields for "NTP (Network Time Protocol)" are:
In the field "Server
defined;
In the field "Poll Time
is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for EtherNet/IP side of the
URL" the URL or the IP Address of the NTP Server is
(seconds)" the polling time for the time synchronization
User Manual OPC UA Server / EtherNet/IP Master
Document code: MN67B38_ENG

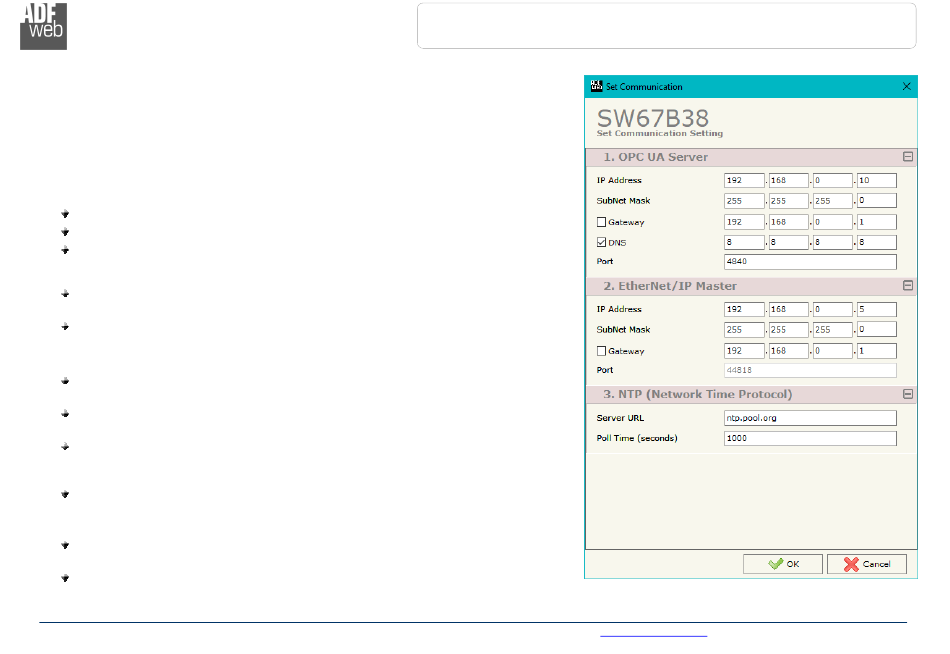

Figure 3: "Set Communication" window
