SCHUNK SDV-P Assembly And Operating Manual
Pressure maintenance valve
Hide thumbs
Also See for SDV-P:
- Assembly and operating manual (20 pages) ,
- Assembly and operating manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for SCHUNK SDV-P
Summary of Contents for SCHUNK SDV-P

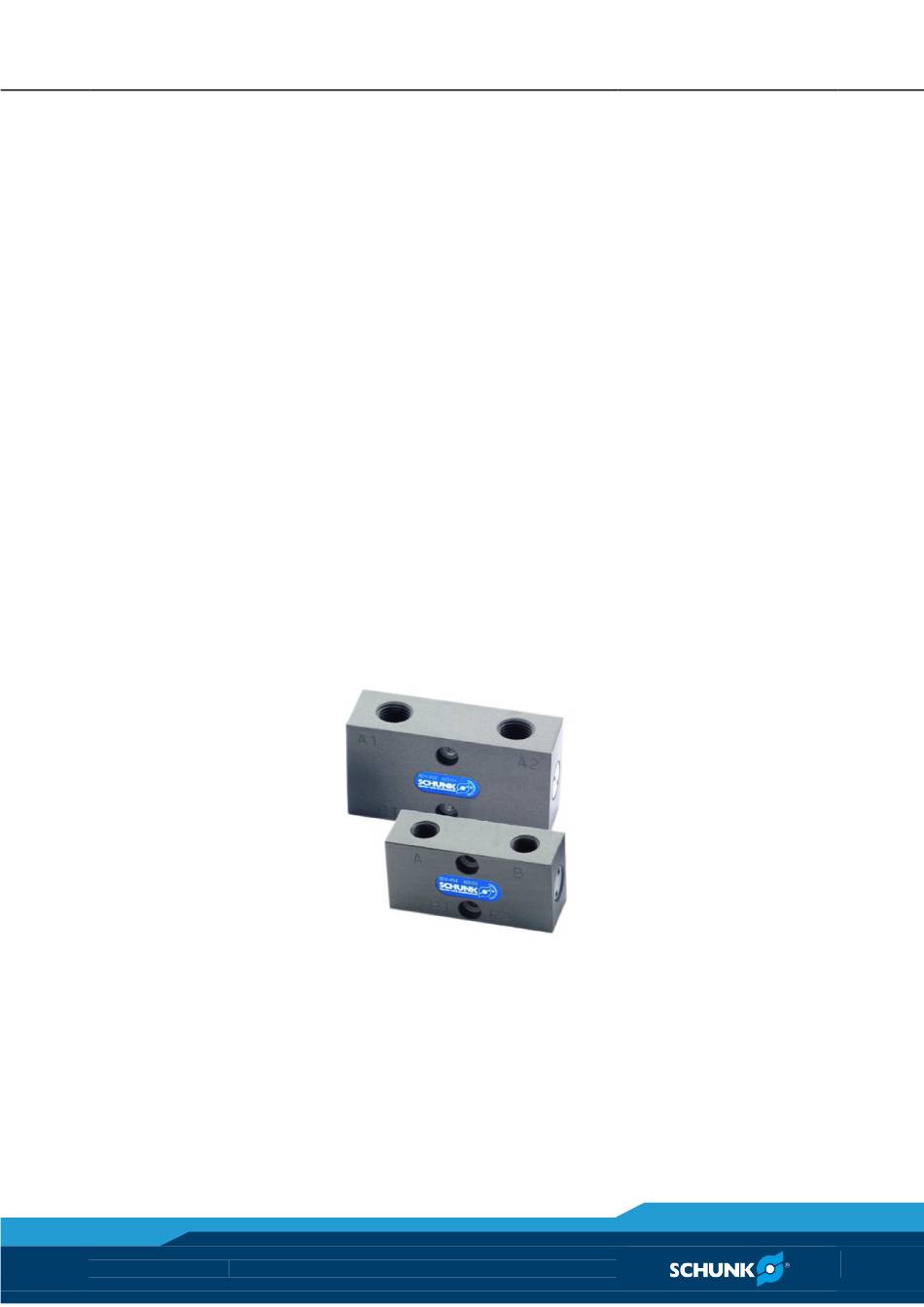

- Page 1 Translation of the original manual Pressure maintenance valve SDV-P Assembly and Operating Manual Superior Clamping and Gripping...
- Page 2 Imprint Copyright: This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely supplied to our customers and operators of our products and forms part of the product. This documentation may not be duplicated or made accessible to third parties, in particu- lar competitive companies, without our prior permission.
-
Page 3: Table Of Contents
3 Warranty ........................8 4 Scope of delivery ...................... 8 5 Technical data ......................8 6 Assembly ........................9 6.1 Mechanical connection .................... 9 6.2 Air connection ......................10 7 Troubleshooting ...................... 12 8 Maintenance and care ..................... 12 02.00|SDV-P |en... -
Page 4: About This Manual
Non-observance can cause minor injuries. NOTICE Material damage Information about avoiding material damage. Applicable documents • General terms of business • Catalog data sheet of the purchased product The documents listed here, can be downloaded on our homepage www.schunk.com 02.00|SDV-P |en... -
Page 5: Basic Safety Notes
• Make sure that the product has a sufficient size for the application. • Make sure that the environment is free from splash water and vapors as well as from abrasion or processing dust. Exceptions are products that are designed especially for contaminated en- vironments. 02.00|SDV-P |en... -
Page 6: Product Safety
Provide protective equipment per EC Machinery Directive. 2.3.2 Constructional changes, attachments, or modifications Additional drill holes, threads, or attachments that are not offered as accessories by SCHUNK may be attached only with permission of SCHUNK. Personnel qualification The assembly, initial commissioning, maintenance, and repair of the product may be performed only by trained specialist person- nel. -
Page 7: Notes On Particular Risks
• For all work, secure the unit against accidental operation. • Dangers emanating from the downstream consumers, must be separately registered and safeguarded by the operator. • Only specially trained staff should disassemble the module. • Perform maintenance, modifications, and additions outside the danger zone. 02.00|SDV-P |en... -
Page 8: Warranty
( 2.2, Page 5) Parts touching the workpiece and wearing parts are not part of the warranty. Scope of delivery The scope of delivery includes: • Pressure maintenance valve SDV-P in the ordered model. Technical data Designation SDV-P 04 SDV-P 07 SDV-P 10 connection [“]... -
Page 9: Assembly
Requirements for levelness of the bolting surface (Dimensions in mm) Diameter Permissible unevenness < 100 < 0.02 > 100 < 0.05 Mounting Fig. 1 Assembly options For cylindrical screw M4 (2x) DIN EN ISO 4762 02.00|SDV-P |en... -
Page 10: Air Connection
Fig. 2 Air connection Function: Two check valves connected in parallel, each of which opens au- tomatically the reverse flow direction when a pressure is applied and thus closes the pressure line. 02.00|SDV-P |en... - Page 11 Assembly circuit diagram: Fig. 3 Further information on the hose-free direct connection contains the catalog data sheet. 02.00|SDV-P |en...
-
Page 12: Troubleshooting
Maintenance and care The Pressure maintenance valve SDV-P is maintenance-free. If there is leakage or a defect of the mechanical part, sent the valve with a repair order to SCHUNK. Repair work may only be carried out by SCHUNK. 02.00|SDV-P |en...
