Z10TIRM 10x Optical Zoom EO + IR Dual-Sensor Laser
Rangefinder Object Tracking Gimbal Camera
User Manual
User Manual
Standard Version
Viewport Version
标准版
快拆版
For more details please scan the QR code
or visit our website:
www.viewprotech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z10TIRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viewpro Z10TIRM

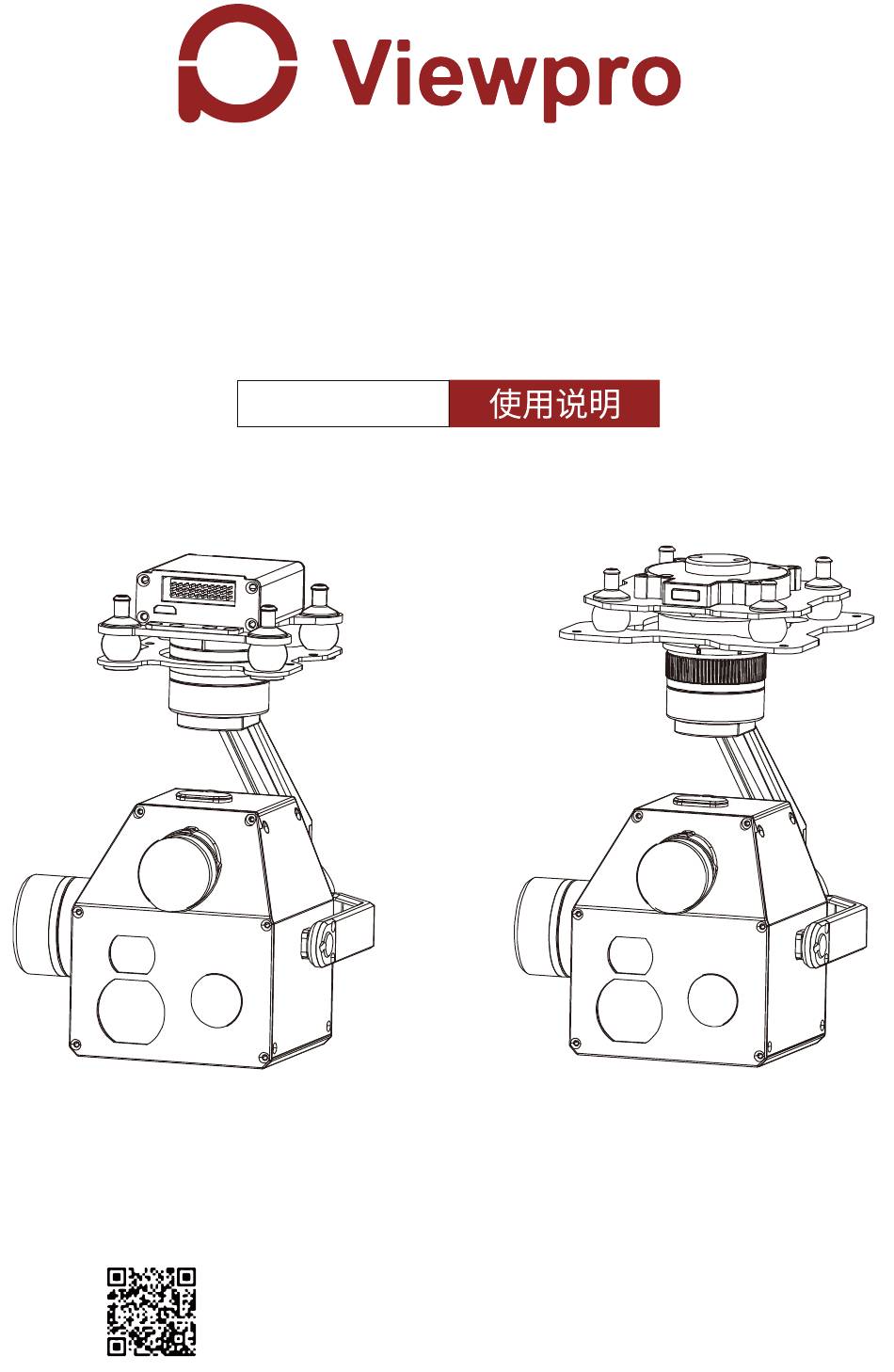

  • Page 1 Z10TIRM 10x Optical Zoom EO + IR Dual-Sensor Laser Rangefinder Object Tracking Gimbal Camera User Manual User Manual Standard Version Viewport Version 标准版 快拆版 For more details please scan the QR code or visit our website: www.viewprotech.com...
  • Page 2: Disclaimer And Warning

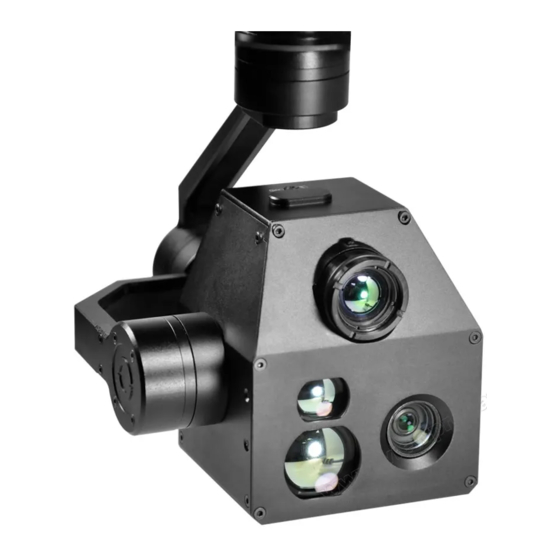

    Important Note 1.Product Introduction 1.1 Introduction Z10TIRM is a powerful 3-axis gimbal integrated with a 10x optical zoom SONY camera, a 19mm lens 640*480 IR thermal sensor and a 1.5km laser rangefinder. It supports visible optical zoom, IR thermal and visible PIP switch, IR color palette switch, photograph- ing and video, target tracking, thermal digital zoom.
  • Page 3: Standard Version

    1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs Power Cable x 1 pc B. Viewport Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder...
  • Page 4: Installation Instruction

    TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [12] [14] [10] [13] Control Box Back Side [11] (Standard Version) [12] [15] [14] Viewport [13] (Viewport Version)
  • Page 5 [9] TF card slot [1] Control box [2] Upper damping board [10] Roll axis motor [3] Lower damping board [11] Pitch axis motor [4] laser rangefinder [12] 3-6S power interface [5] FHD zoom camera [13] Micro HDMI interface [6] Infrared thermal camera [14] Ethernet interface [7] Damping ball [15] Viewport unlock button...
  • Page 6 2.2.2 Control Box Printing (Viewport Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
  • Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 24.5 69.9 60.0 69.7 33.0 128.6 110.4...
  • Page 8 2.3 Device Dimensions (Viewport Version) Unit: mm 78.0 91.0 Control Box 81.5 81.5 128.6 110.4...
  • Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
  • Page 10 2.5 Viewport Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
  • Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Viewport completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Viewport has been locked.
  • Page 12 2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format. Make sure device is power off when inserting the TF card, hot plugging is not supported.
  • Page 13: Signal Control

    When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.2.2 (choose the last byte among 2~254, can not be 119 same as the gimbal), subnet mask: 255.255.255.0, Default gateway: 192.168.2.1, and all firewalls of the computer must be closed.
  • Page 14 PWM IN 5V OUTPUT Remote Controller Receiver Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Viewport Version)
  • Page 15 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Pitch Up Pitch Stop Pitch Down...
  • Page 16 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at middle speed Position 3: High speed mode, control pitch / yaw with this mode at highest speed...
  • Page 17 4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Zoom Out Stop Zoom Zoom In 5) Focus (PWM Focus channel is to control PIP / IR color palette switch.
  • Page 18 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Switch from Position 2 to 1: Take a picture OSD display 'REC IMG' a second. Switch from Position 2 to 3: Start record / repeat operation to stop record Start record, the OSD display rec hh:mm:ss.
  • Page 19 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive. Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as example): Gimbal Camera Cable RX (White)
  • Page 20: S.bus Control

    TTL control protocol file. ViewLink is a user interface developed by Viewpro for Viewpro gimbal cameras, you can download it from Viewpro website (www.viewpro- tech.com) or ask distributors for installation package.
  • Page 21 5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Viewport Version...
  • Page 22 (please contact with our technical support for the setting instruction.) 3.4 TCP control For Viewpro gimbal cameras with Ethernet output, the default IP address is: 192.168.2.119, control port: 2000. You can send the corresponding protocol to realize TCP control after connecting.
  • Page 23: Specification

    4. Specification Hardware Parameter Working voltage 14V ~ 16V 3S ~ 6S Input voltage Output voltage 5V (connect with PWM) Dynamic current 550mA @ 12V Idle current 450mA @ 12V Power consumption ≤ 6.6W Working environment -20℃ ~ +60℃ temp micro HDMI(HD output 1080P 60fps) / Output Network interface / SDI / Skyport...
  • Page 24 One-key to center √ Camera spec Imager Sensor 1/3" CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 4.08MP Lens optical zoom 10x, F=3.2~33.6mm Digital zoom None Min object distance 10mm(wide end) to 800mm(tele end) Horizontal viewing Wide 62° ~ Tele 6.5° angle Sync system Progressive scanning...
  • Page 25 Aperture control 16 steps Fotoformate JPEG Videoformate Camera Object Tracking Update rate of 50Hz deviation pixel Output delay of <10ms deviation pixel Minimum object contrast Minimum object 32*32 pixel size Maximum object 128*128 pixel size Tracking speed ±48 ~ ±192 pixel/frame Object memory time 100 frames (4s) The mean square...
  • Page 26 Horizontal FOV 32° Vertical FOV 24° Diagonal FOV 39.4° Detective Distance 559 meters (Man: 1.8x0.5m) Recognize Distance 140 meters (Man: 1.8x0.5m) Verified Distance 70 meters (Man: 1.8x0.5m) Detective Distance 1714 meters (Car: 4.2x1.8m) Recognize Distance 428 meters (Car: 4.2x1.8m) Verified Distance 214 meters (Car: 4.2x1.8m) Uncooled long wave (8μm~14μm) thermal...
  • Page 27 Auto adjust image brightness and contrast Image enhancement ratio Color palette White, iron red, pseudo color Auto Non-uniform Yes (no shutter) correction Digital zoom 1x, 3x Sync correct time Thermometry type Not support Temperature warning 0℃~100℃ Thermal Imager Object Tracking Update rate of 25Hz deviation pixel...
  • Page 28 Light Beam 905nm pulse laser Divergent Angle 3 mrad Laser pulse frequency 1HZ Power < 1 mW (safe for eye) Ranging mode Pulse Location Resolving Latitude and longitude of target Ranefinder Target distance measuring Packing Information N.W. 590g Product meas. 110.5*128*155.5mm 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping...
  • Page 29 5. FAQ 1. How to deal with whitening visible image of Z10TIRM in foggy weather? A: Enable defogging mode. 2. Does Z10TIRM support taking photos during recording? A: Yes. 3. How to set the storage format of Z10TIRM ? A: When the IP output resolution is set to 1280*720, the storage resolution is 1920 * 1080;...
