User manual
Z40K

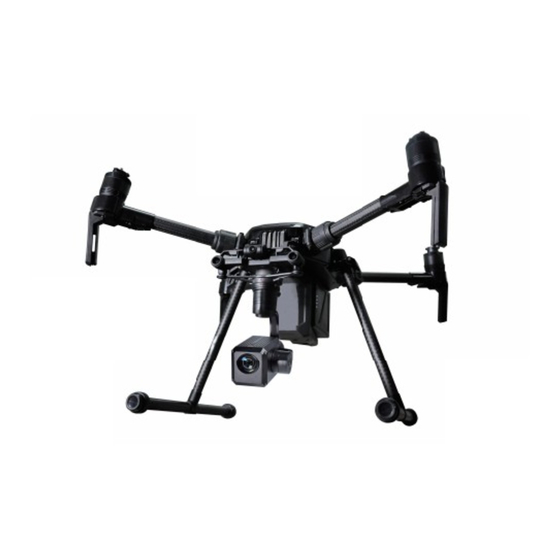

40x 4K UHD Object Tracking Gimbal Camera
Compatible with DJI M200/M210/M210RTK and V2 Series
Images are for reference only, please subject to the actual product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z40K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viewpro Z40K

Summary of Contents for Viewpro Z40K

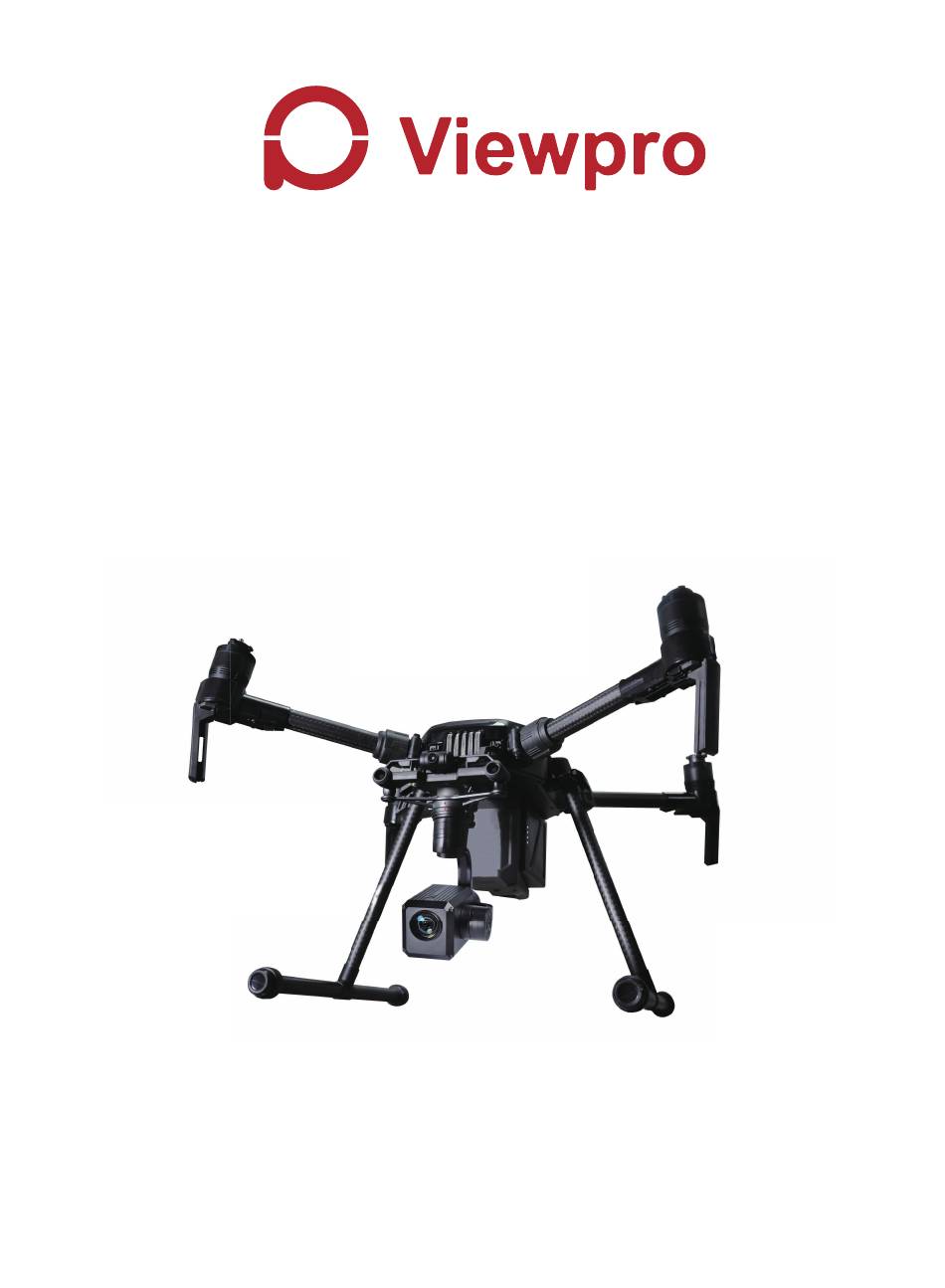

  • Page 1 User manual Z40K 40x 4K UHD Object Tracking Gimbal Camera Compatible with DJI M200/M210/M210RTK and V2 Series Images are for reference only, please subject to the actual product.

  • Page 2: Table Of Contents

    Contents Z40K High-precision Camera Camera introduction..................1 Camera description..................1 Mechanics@Electronic characteristics............2 Application description..................2 1. Menu instruction........................ 2. Payload Settings........................ 2.1 Gimbal Speed......................2.2 OSD Display Options....................2.3 OSD Type Options...................... 2.4 Gimbal Angles Setting....................3. Main functions instruction....................3.1 Camera Settings......................

  • Page 3: Camera Introduction

    The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 20 times optical zoom. iA Zoom is up to 40x.

  • Page 4: Mechanics@Electronic Characteristics

    Application Description DJI Pilot After mounting Z40K on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angles (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual.

  • Page 5: Payload Settings

    2. Payload Settings 2.1 Gimbal Speed Gimbal speed is adjustable. When it’s 0%, the speed will adjust automatically, quick speed for wide end, slow speed for tele end. When adjust to 1% manually, the speed will be low even in wide end.

  • Page 6: Osd Display Options

    2.2 OSD Display Options You can DIY your on-screen-display (OSD). Choose Display ALL, or you can choose to display the items that you want only or bigger word size. Hide All: 2.3 OSD Type Options You can choose to display FOV (Field of View) or Zoom times, GPS co-ordinate of UAV or the object.

  • Page 7: Gimbal Angles Setting

    2.4 Gimbal Angles Setting Input the pitch / yaw angle degrees to get exact attitude angles directly. 3. Main functions instruction 3.1 Camera Settings In the APP, you can choose different camera options according to your application demands. 3.1.1 Camera Options: Photo ratio: >Picture 16:9: total pixel is 25.9MP >Picture 4:3: total pixel is 20.4MP...

  • Page 8: Camera Settings

    >Definition On/Off: Show picture total pixel information or video mode and status information on screen or not. >Time OSD On/Off: Show date and time on OSD or not. When both off, you can have a clear screen, specially when you choose Hide All in OSD Display Option also.
  • Page 9 Picture Mode On/Off: >Picture Mode On: Picture total pixel is 25.9MP, zoom max 20 times. Photography and storage time will be about 3-4 seconds per photo. >Picture Mode Off: Picture resolution will be according to video mode, 20.4MP under 4K video mode, 14MP under 1080p mode.
  • Page 10 Note: When the shooting and storage are performed, the camera icon on screen will become red and a green frame will display on screen with a shooting sound. The RXXXX number after the camera icon indicates the storage space left per picture quantity. If there is no green frame showed after shooting, please check if SD card is normal.

  • Page 11: Video Storage

    3.2 Video Storage Micro SD card(TF card): resolution 1920*1080, with OSD. Support up to 128G. SD card: resolution 3840*2160 pure video without OSD. Support up to 128G. There are many folders in the SD card, according to folder name you can recognize what content inside: CDPFQ is for photo RDPHH is for 4K video YBPHH is for 1080p video...

  • Page 12: Ois(Optical Image Stabilization) Function

    3.3 OIS (Optical Image Stabilization) function Turn on the OIS function, it could effectively keep the image stable during flying, even in the condition of larger optical zoom. 3.4 Object Tracking Start tracking: Enable tracking function, the single touch on the screen to pick tracking object. Stop tracking: Payload Settings –...
  • Page 13 Hardware Parameter Working voltage Input voltage 3S ~ 4S Dynamic current 450mA @ 12V Idle current 330mA @ 12V Power consumption ≤5.4W Working environment temp. ~ +60 ℃ ℃ Output Skyport Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec...
  • Page 14 Focus speed Lens initialization Built-in User presetting bit 20 sets Image rotation 180°, Horizontal/Vertical mirror image Facial recognition √ Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <15ms Minimum object contrast Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed...
