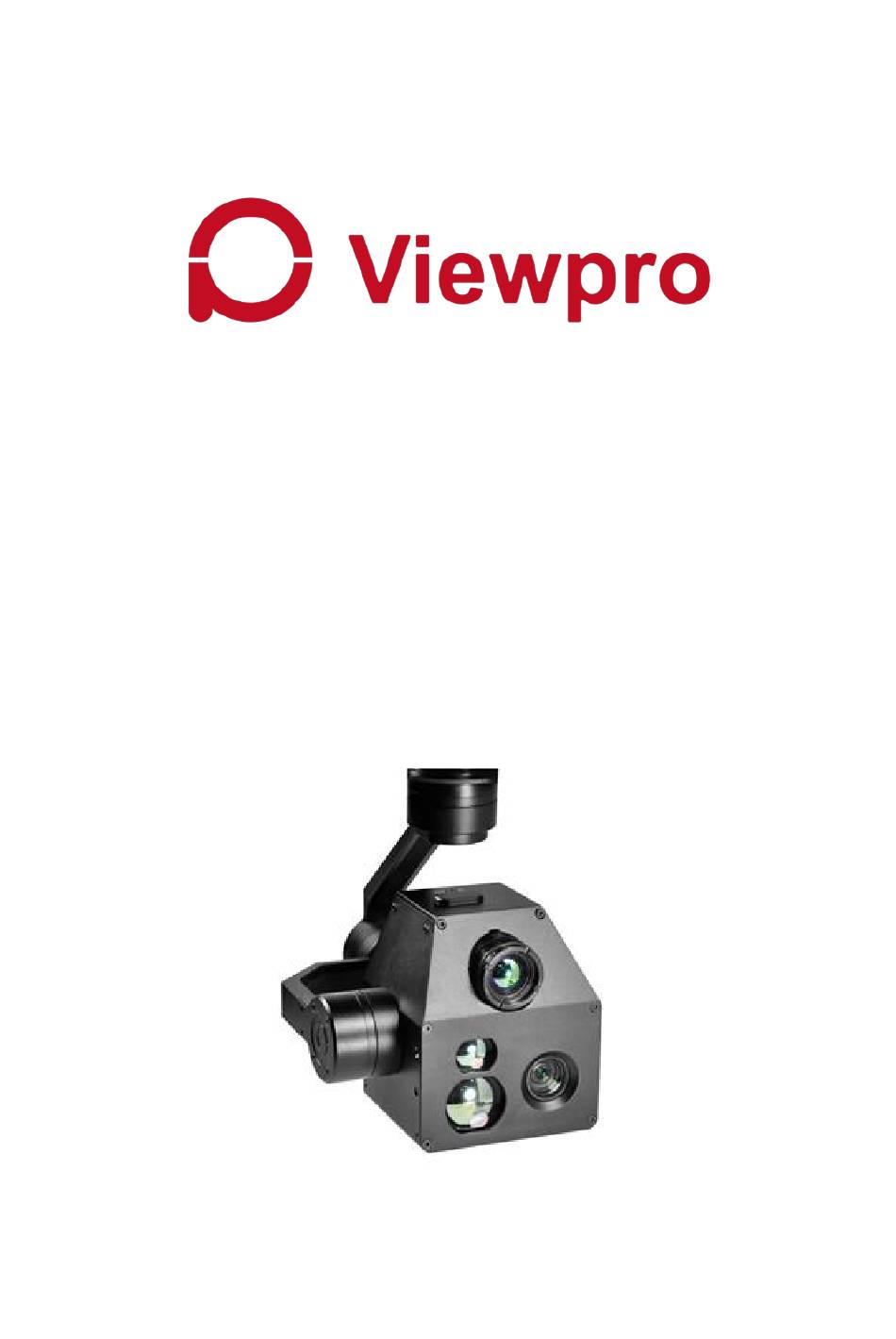

- Page 1 User Manual Z10TIRM 10x Zoom Thermal Imager & Laser Rangefinder Object Tracking Gimbal Camera Compatible with DJI M200/M210/M210RTK Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Content Camera Introduction ..................2 Camera Description ..................2 Mechanics@Electronic Characteristics ............. 3 Application Description ................3 Menu instruction ................................3 Camera settings – Photo mode settings ....................4 Payload Settings ..............................4 Main functions instruction ............................10 Thermal Imager ..............................10 Object Tracking.............................. -
Page 3: Camera Introduction
10 times optical zoom, object tracking, laser rangefinder, thermal imager and so on. The speed of Z10TIRM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. -
Page 4: Mechanics@Electronic Characteristics
Application Description DJI Pilot After mounting Z10TIRM on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angles (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual. -
Page 5: Camera Settings - Photo Mode Settings
1.1 Camera settings – Photo mode settings You can choose single shot, burst mode or interval mode. 1.2 Payload Settings... - Page 6 Gimbal Speed: Gimbal speed is adjustable. When it’s 0%, the speed will adjust automatically, quick speed for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be low even in wide end. The high the percentage is, the quicker the speed will be. OSD Display Options: You can DIY you on-screen-display (OSD).
- Page 7 Hide All OSD Type Options: You can choose to display FOV (Field of View) or Zoom times, GPS co-ordinate of UAV of the object.
- Page 8 Picture In Picture: There are 4 picture models, EO+IR, IR, IR+EO, EO. According to your choice, the screen will show different picture. IR+EO...
- Page 9 IR Color: There are 5 color models for select, Gray Scale, Pseudo Color, Iron Oxide Red, Rainbow, Color. You can choose different model for different scene. Gimbal Pitch Angle/ Gimbal Yaw Angle: Input the pitch / yaw angle degrees to get exact attitude angles directly.
- Page 10 Tracking Enable: Turn on/ off the object tracking function. Drag Control: Press on the screen then drag to control pan and tilt.
-
Page 11: Main Functions Instruction
Integrated French ULIS high-precision uncooled long wave (8μm ~ 14μm) thermal image sensor, Z10TIRM can record and transmit thermal image and visible images at the same time. ULIS thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. -
Page 12: Laser Rangefinder
2.3 Laser Rangefinder Z10TIRM build-in infrared (IR) laser rangefinder, can resolve the geo graphic position and distance of the object automatically after GPS signal is synced from the UAV. The target is the object in the middle point of the screen. When the object distance is less than 5 meters or... -
Page 13: Specification
Specification Hardware Parameter Working voltage Input voltage 4S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 550mA @ 12V Idle current 450mA @ 12V ≤ 6.6W Power consumption Working environment temp. -20℃ ~ +60℃ Output Skyport Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec... - Page 14 Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <10ms Minimum object contrast Minimum object size 16*16 pixel Maximum object size 160*160 pixel Tracking speed ± 32 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse <...
- Page 15 Thermal Object Tracking Update rate of deviation pixel 25Hz Output delay of deviation pixel <3ms Minimum object size 16*16 pixel Maximum object size 128*128 pixel Tracking speed ± 32 pixel/frame Object memory time 100 frames (4s) Laser Rangefinder Range 1500 meters Location Resolving Latitude and longitude of target Ranefinder...
