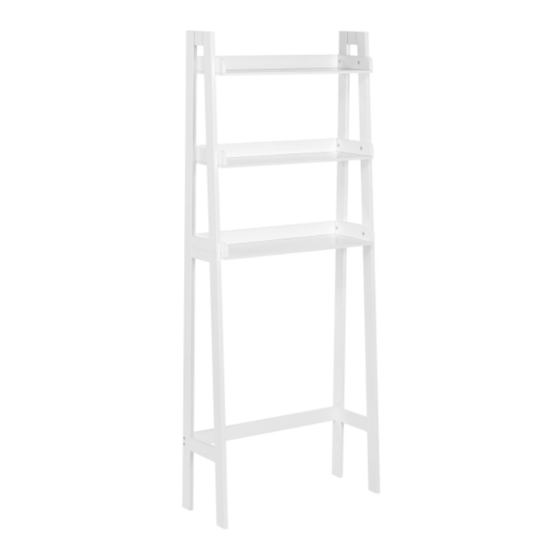

RiverRidge Ladder Spacesaver 06-098 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. RiverRidge Manuals
  4. Indoor Furnishing
  5. LADDER SPACESAVER 06-098
  6. Assembly instructions manual

RiverRidge Ladder Spacesaver 06-098 Assembly Instructions Manual

Hide thumbs Also See for Ladder Spacesaver 06-098:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Ladder Spacesaver
®
ITEM#: 06-098 White
ITEM#: 06-099 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ladder Spacesaver 06-098 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Ladder Spacesaver 06-098

Summary of Contents for RiverRidge Ladder Spacesaver 06-098

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Ladder Spacesaver ® ITEM#: 06-098 White ITEM#: 06-099 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 60 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 60 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Shelf Left Rail Board Top Shelf Right Rail Board Middle Shelf Left Rail Board Middle Shelf Right Rail Board Bottom Shelf Left Rail Board Bottom Shelf Right Rail Board Top Shelf Middle Shelf Bottom Shelf 3PCS Rear Rail Board Bottom Rear Cross Bar Upper Right Side Frame...
  • Page 4 PARTS LIST PARTS DESCRIPTION 16PCS Wood Dowel 8PCS Screw (4x45mm) Machine Screw (6x20mm) 12PCS Screw (3.5x25mm) 27PCS Screw (4x30mm) Screw (4x8mm) Plastic Anchor Adjustable Anchor Bracket TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
  • Page 5 STEP 1 1. Insert 1 screw (D) through hole on top shelf left rail board (1) and tighten to rear rail board (10). 2. Repeat above step to assemble top shelf right rail board (2) to rear rail board (10). STEP 2 1.
  • Page 6 STEP 3 1. Insert 1 screw (D) through hole on bottom shelf left rail board (5) and tighten to rear rail board (10). 2. Repeat above step to assemble bottom shelf right rail board (6) to rear rail board (10). STEP 4 1.
  • Page 7 STEP 5 1. Insert 4 wood dowels (A) into wood dowel holes on middle shelf (8). 2. Attach middle shelf (8) to pre-assembled middle shelf rail boards (3, 4, 10) by inserting wood dowels (A) into wood dowel holes on middle shelf rail boards (3, 4, 10). 3.
  • Page 8 STEP 7 1. Insert 2 wood dowels (A) into wood dowel holes on upper left side frame (13). 2. Attach upper left side frame (13) to bottom left side frame (15) by inserting wood dowels (A) into wood dowel holes on bottom left side frame (15). 3.
  • Page 9 STEP 9 1. Attach pre-assembled shelves and rail boards to upper left side frame (13) by inserting 2 machine screws (C) through holes on each left rail board (1, 3, 5) and tighten to upper left side frame (13). 2. Attach bottom rear cross bar (11) to bottom left side frame (15) by inserting 2 screws (B) through holes on bottom left side frame (15) and tighten to bottom rear cross bar (11).

  • Page 10: Care Instructions

    ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
  • Page 11 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.

This manual is also suitable for:

Ladder spacesaver 06-099
