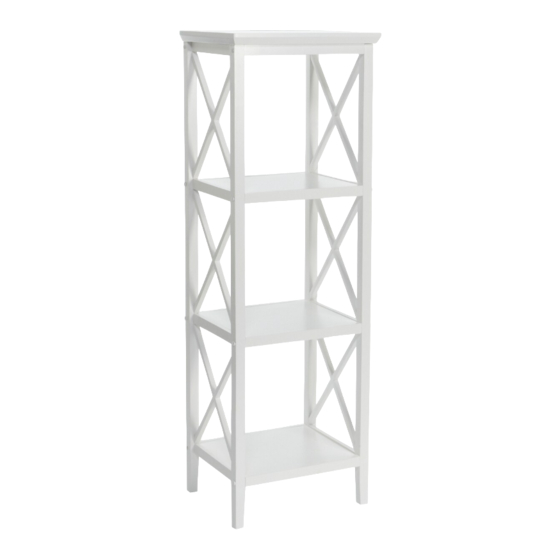

RiverRidge® X-FRAME BATH 4 SHELF TOWER-WHITE ITEM# 06-001
RiverRidge® X-FRAME BATH 4 SHELF TOWER-ESPRESSO ITEM# 06-002
This product requires assembly by an adult because of the small parts. Care should be
taken in unpacking and assembling this item to keep the small parts away from children.
WARNING
Young children can be seriously injured or killed, if furniture tips over.
Don't use this item for a TV stand.
Use angle-braces or anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS
ADULT ASSEMBLY REQUIRED
- 1 -
Advertisement
Table of Contents
Related Manuals for RiverRidge 06-001
Summary of Contents for RiverRidge 06-001
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® X-FRAME BATH 4 SHELF TOWER-WHITE ITEM# 06-001 RiverRidge® X-FRAME BATH 4 SHELF TOWER-ESPRESSO ITEM# 06-002 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of the small parts. Care should be taken in unpacking and assembling this item to keep the small parts away from children.
- Page 2 Send requests for missing or damaged parts replacements by email to : customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 100 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS.
- Page 3 PARTS LIST PARTS DESCRIPTION TOP BOARD 2PCS SIDE FRAME 3PCS SHELF BACK CROSS BAR FRONT CROSS BAR 16PCS LONG WOOD SCREW 5x45mm 4PCS WOOD SCREW 4x35mm 16PCS PLASTIC CAP 2PCS WOOD SCREW 4x40mm 2PCS PLASTIC ANCHOR ALLEN WRENCH TOOLS NEEDED FOR ASSEMBLY: PHILIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENDED - 3 -...
- Page 4 STEP 1 STEP 1 1. Put the top board (1) upside down on a soft padded surface. 2. Attach the back cross bar (4) to the top board (1) by inserting 2 wood screws (B) through the holes on the back cross bar (4). Then tighten to the top board (1) by using a Philips screwdriver. 3.
- Page 5 STEP 3 STEP 3 1. Attach the other side frame (2) to the top board (1) and 3 shelves (3). Insert 2 long wood screws (A) through the holes on the side frame (2) and tighten to the front and back cross bars (4 &...
- Page 6 STEP 5 STEP 5 1. Drill 2 holes on the wall by using the template drawing(included) w/hole positions as a guideline. 2. Insert 2 plastic anchors (E) into the 2 holes on the wall. 3. Insert 2 wood screws (D) through the holes on the back cross bar (4) and tighten to the 2 plastic anchors (E) with a Philips screwdriver.
- Page 7 Take appropriate action necessary to correct the hazard such as tightening of screws and taking any damaged parts away from the children. Thank you for purchasing this RiverRidge® Home Products item. We hope you enjoy it, and consider purchasing other RiverRidge® items.
