This product requires assembly by an adult because of small parts. Care should be
taken in unpacking and assembling this item to keep small parts away from children.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't
use this item for a TV stand or place heavy objects on top of item. Always
use angle-braces or anchors to secure furniture to the wall.

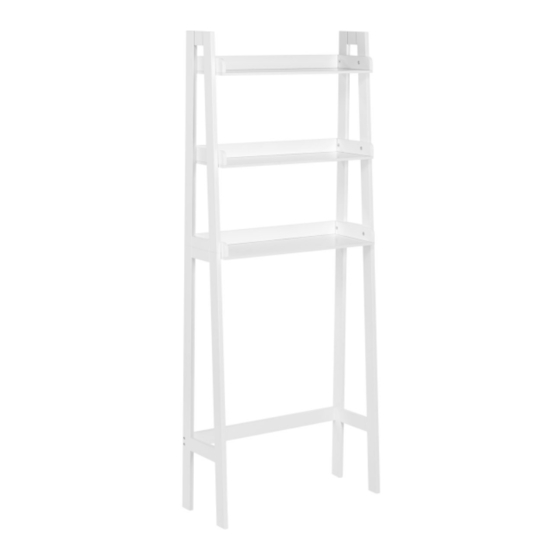

ASSEMBLY INSTRUCTIONS
RiverRidge®
LADDER SPACESAVER
ITEM #:06-098 WHITE
ITEM #:06-099
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
GRAY
Advertisement
Related Manuals for RiverRidge LADDER SPACESAVER 06-098
Summary of Contents for RiverRidge LADDER SPACESAVER 06-098
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® LADDER SPACESAVER ITEM #:06-098 WHITE ITEM #:06-099 GRAY ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 Send requests for missing or damaged parts replacements by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS.IF LOADED WITH MORE THAN 20 POUNDS PER SHELF AS THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION TOP SHELF LEFT RAIL BOARD TOP SHELF RIGHT RAIL BOARD MIDDLE SHELF LEFT RAIL BOARD MIDDLE SHELF RIGHT RAIL BOARD BOTTOM SHELF LEFT RAIL BOARD BOTTOM SHELF RIGHT RAIL BOARD TOP SHELF MIDDLE SHELF BOTTOM SHLF 2PCS REAR RAIL BOARD TOP REAR RAIL BOARD BOTTOM REAR CROSS BAR... -
Page 4: Machine Screw
PART DESCRIPTION WOOD DOWEL 22PCS 8PCS SCREW (4 X 60MM) MACHINE SCREW 12PCS (6 X 20MM) 27PCS WOOD SCREW (3.5 X 25MM) WOOD SCREW (4 X 30MM) WOOD SCREW (3 X 12MM) PLASTIC ANCHOR 2PCS BRACKET PLASTIC LOCK STRAP... - Page 5 STEP 1 STEP 1 1. Insert 1 wood dowel (A) into wood dowel hole on end of top rear rail board (11). 2. Attach top shelf left rail board (1) to top rear rail board (11) by inserting wood dowel (A) into hole on top shelf left rail board (1).
- Page 6 STEP 3 STEP 3 1. Insert 1 wood dowel (A) into wood dowel hole on end of rear rail board (10). 2. Attached bottom shelf left rail board (5) to rear rail board (10) by inserting wood dowel (A) into hole on bottom shelf left rail board (5). 3.
- Page 7 STEP 5 STEP 5 1. Insert 4 wood dowels (A) into wood dowel holes on middle shelf (8). 2. Attach middle shelf (8) to pre-assembled middle shelf left rail board (3), middle shelf right rail board (4) and rear rail board (10) by inserting wood dowels (A) into wood dowel holes on middle shelf left rail board (3), middle shelf right rail board (4) and rear rail board (10).
- Page 8 STEP 7 STEP 7 1. Insert 2 wood dowels (A) into wood dowel holes on upper left side frame (13). 2. Attach upper left side frame (13) to bottom left side frame (15) by inserting wood dowels (A) into wood dowel holes on bottom left side frame (15). 3.
- Page 9 STEP 9 STEP 9 1. Attach pre-assembled top shelf (7) and rail boards to upper left side frame (13) by inserting 2 machine screws (C) through holes on top shelf left rail board (1) and tighten to upper left side frame (13).
- Page 10 WALL 1.Place spacesaver against wall and close to Bracket (H). 2.Insert plastic lock strip (J) through hole on bracket (H) on spacesacer and through hole on bracket (H) on wall, then fasten plastic lock strip (J) to secure 2 Brackets (H) firmly together.
