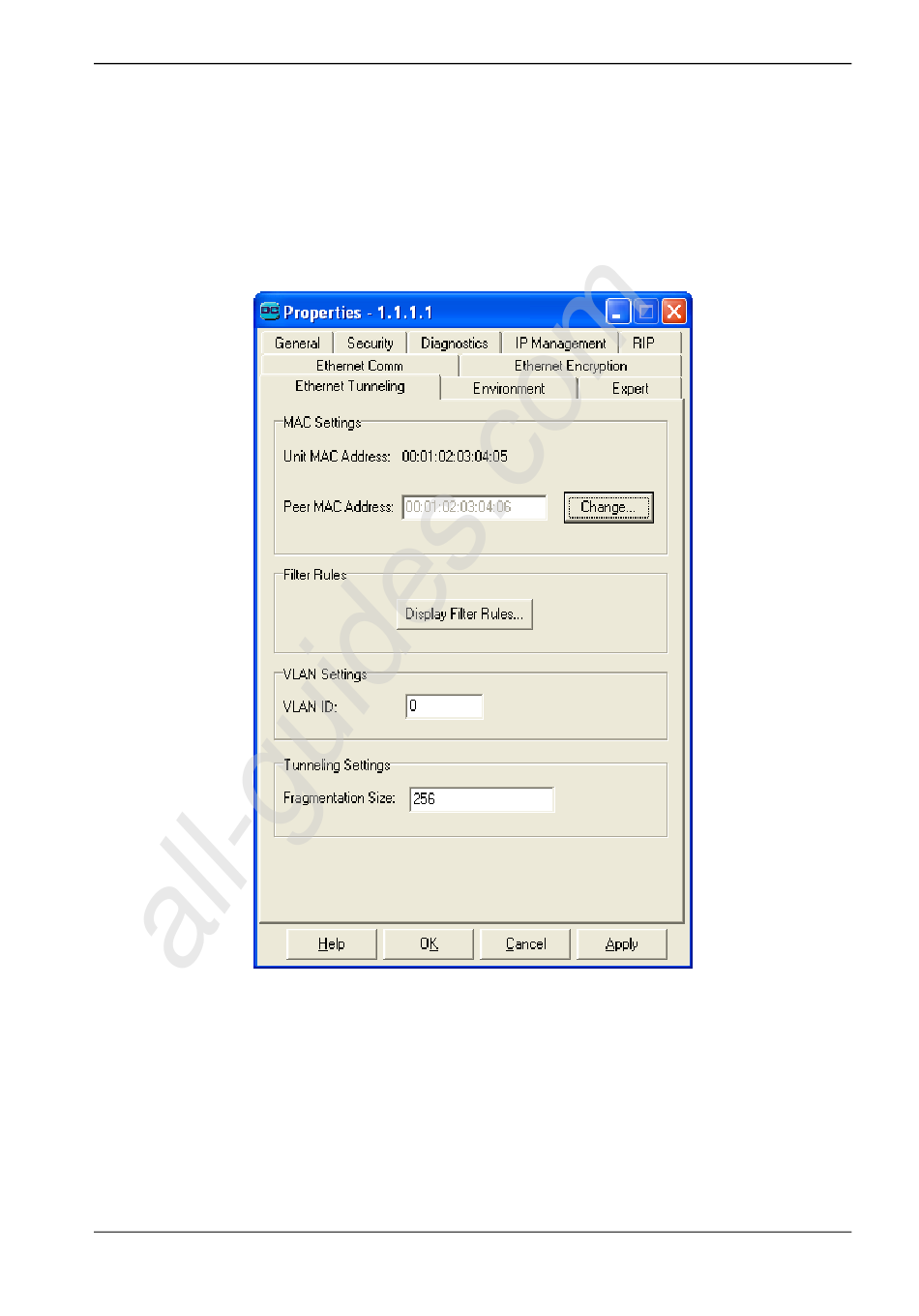

The Ethernet Tunneling Tab

The Ethernet Tunneling tab will only be present when Tunneling mode is selected on the
Ethernet Comm tab.
Note: The Tunneling Settings section, which includes the Fragmentation Size item, is
not displayed for the 10Gig Ethernet unit. The 10Gig Ethernet unit does not
support fragmentation.
MAC Settings - Operating at the Layer 2 level the in band communications between the units
will be controlled by using MAC Addresses. The unit has two addresses assigned for use
between the units at either end of an Ethernet Layer 2 link. The Unit MAC Address is displayed.
The peer MAC address must be obtained and entered in the box provided.
