Note: The loopback mode is regarded as a transient feature intended purely as an aid to
troubleshooting. Therefore when the unit is rebooted the loopback options are set
to Disabled.

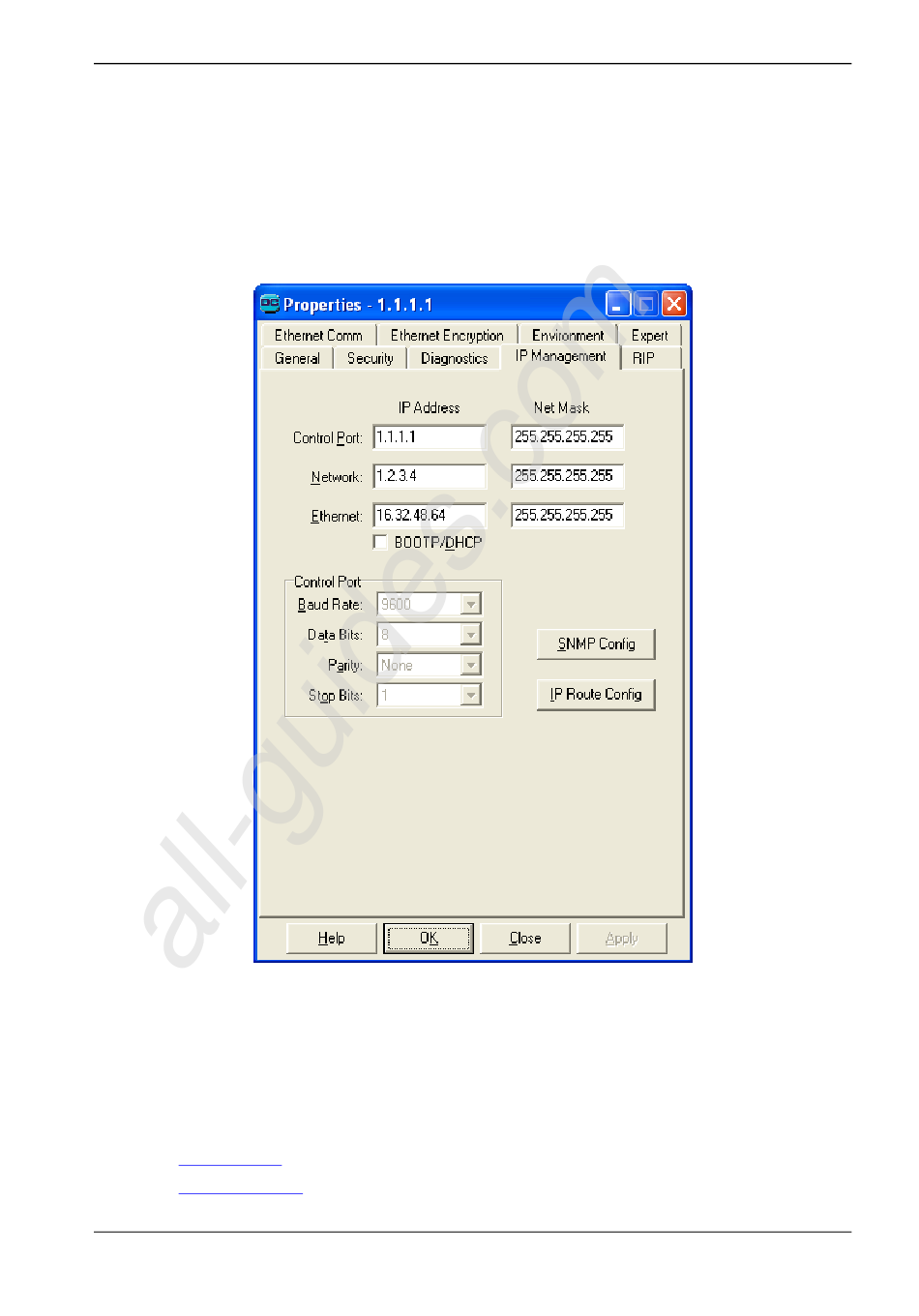

The IP Management Tab

The properties on the IP Management tab control the IP addressing of the unit.
They are as follows:
Control Port – the IP address and net mask of the unit's Control Port, this value is only
•
used if the PPP does not negotiate another value
Network - the IP address and net mask of the unit's Network Port.
•
Ethernet - the IP address and net mask of the unit's Ethernet (management) Port.
•
Control Port - these fields show the settings for dial up networking.
•
SNMP Config
•
IP Route Config
•
1270A450-005 - June 2008
All manuals and user guides at all-guides.com
– click this button to configure the SNMP trapping for this unit.
- click this button to configure the IP Routing table for this unit
Element Manager Reference
Page 61
