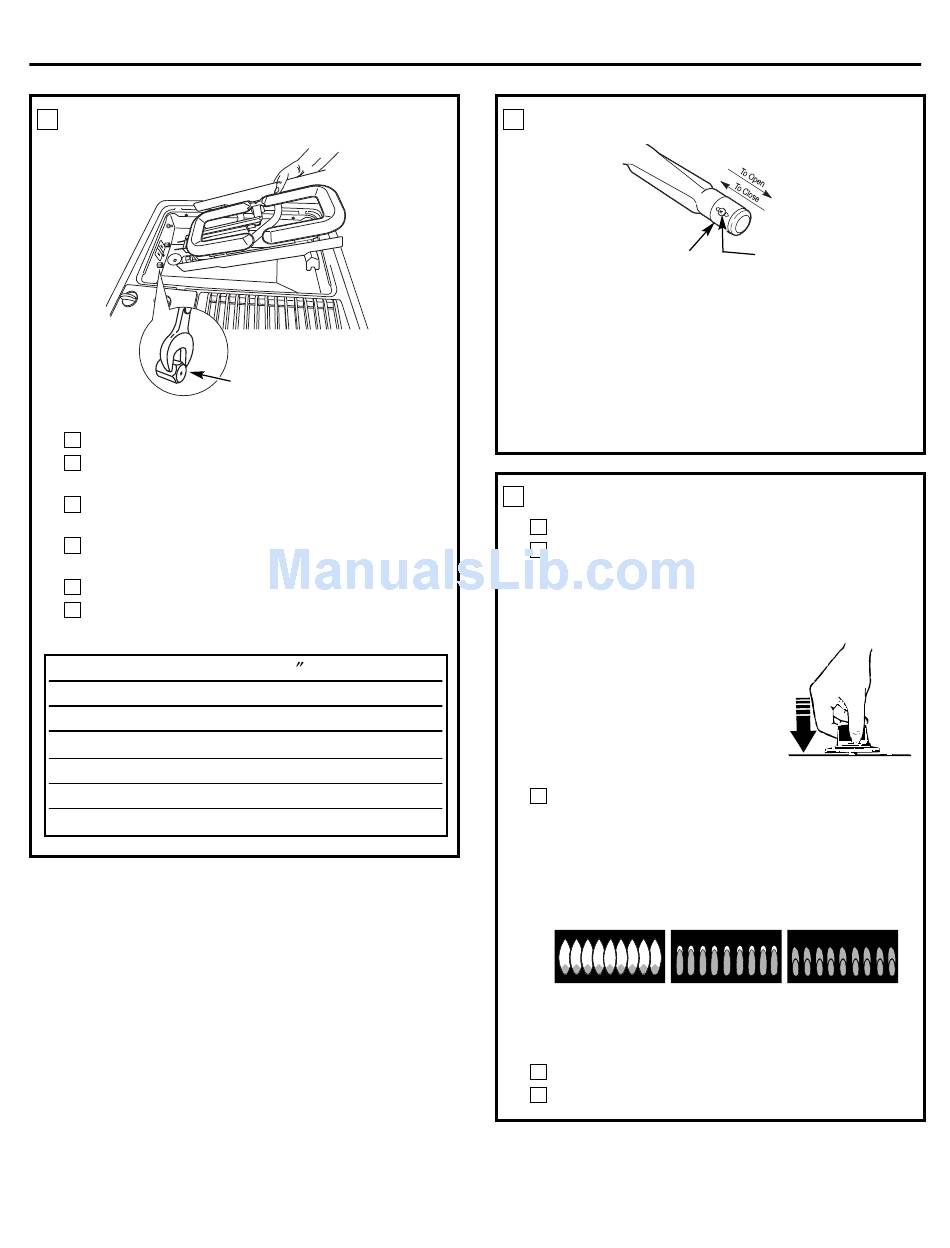

2 CONVERT SURFACE BURNERS
Turn counterclockwise to remove
Remove all grates and burner modules.
A
With an adjustable wrench or an open end wrench,
B
remove the brass orifices.
Find the inscribed LP orifices in the holder in the front
C
of the electric cover beneath the cooktop.
Install the inscribed LP orifices in place of the natural
D
gas orifices.
Replace the burner modules and grates.
E
Keep all the spuds with your cooktop so you have
F
them if you move or get a different gas hook-up.
LP (Propane) Gas 10 W.C.P.
Burner Output Rating in BTU/HR
Location BTUs
Left Rear (LR) 9,100
Left Front (LF) 9,100
Right Rear (RR) 9,100
Right Front (RF) 9,100
LP Conversion Instructions
Turn clockwise to tighten
Orifice
Orifice Size Engraving
.0354 LP
.0354 LP
.0354 LP
.0354 LP
3 ADJUST GRILL BURNER AIR SHUTTER
Air shutter
The air shutters for the grill burner may need to be
adjusted to get better flame appearance and ignition.
The air shutters for the grill burner are located on
the bottom of the grill burner. To access the air shutters,
remove the grill grate, and then the grill burner. Loosen
the screw and slide the air shutter backward or forward
to increase or decrease the size of the air opening.
Re-tighten the screw.

CHECK IGNITION

4
A Connect electrical supply cord.
Turn on the gas; check for leaks using a liquid leak
B
detector at all joints in the system.
WARNING:
TO CHECK FOR GAS LEAKS.
Push in one control knob
and turn to the LITE position.
The igniter will spark and the
burner will light. The first test
may require some time while air
is flushed out of the gas line. After
ignition, turn the control knob to
the HI position and wait until the flame settles.
Check to determine if your burner flames are normal.
C
If burner flames look like A, turn off the burner and
make sure all parts are assembled correctly.
Reassemble and check.
Normal burner flames should look like B or C,
depending on the type of gas you use. With LP gas,
some yellow tipping on outer cones is normal.
A–Yellow flames
Not normal;
check
alignments
Turn the knob to OFF.
D
Repeat the procedure for each burner.
E
32
Loosen screw
Adjust air shutter opening
Tighten screw
DO NOT USE A FLAME
B–Yellow tips C–Soft blue flames
Normal for Normal for
LP gas natural gas
