GE Profile PGP990SENSS Specifications

PGP990SEN

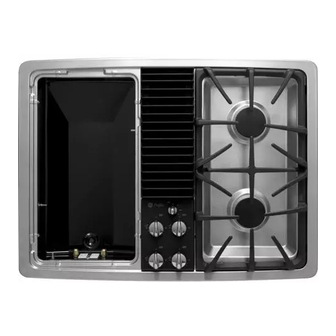

GE Profile Built-In Downdraft Gas Cooktop
™
Dimensions and Installation Information (in inches)
Wall Installation: Wall installations require 25" countertop depth. When
cabinet is flush against the wall, the fan housing can be rotated to the
horizontal position for direct venting through rear wall. Make a countertop
cutout in the range cabinet according to unit dimensions and installation
type. Duct hole is positioned in back of cabinet for through-the-wall ducting.
Requires special offset adapter JXRW89.
Peninsula or Island Installation: For peninsula/islands a minimum
26" countertop depth is suggested. Blower should be in vertical position.
Island or peninsula cabinets may require adjustment in cutout depth and/or
location within the width dimensions. Duct hole is positioned in bottom of
cabinet for island or peninsula installation.
Slab Installation: For peninsula or island installation
and rear wall ducting, 6" PVC duct or locally approved piping
should be used if installing under a poured concrete slab.
Installation Information: Before installing, consult installation instructions,
packed with product, for current dimensional data.
Note: These cooktops are approved for indoor use only.
Warranty Information:
Parts Warrany - Limited 1-year entire appliance
Labor Warranty - Limited 1-year entire appliance
Warranty Notes - For models produced on or after January 1, 2006;
see written warranty for full details
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
or
™
service,
30
Tie down bolt
on each end
Blower can be swiveled 90°
Grease
container
29 ± 1/16
15/16"
Min.
9-1/2
clearance
Select appropriate
duct cutout
(see ducting installation instructions.)
21-3/4
Pressure regulator
Wiring box cover
21 ± 1/16
9
1-7/8"
14-3/16 Min.
Listed by
Underwriters
Laboratories
Specification Created 12/07
230283
