Summary of Contents for V-ZUG Adora TS WP

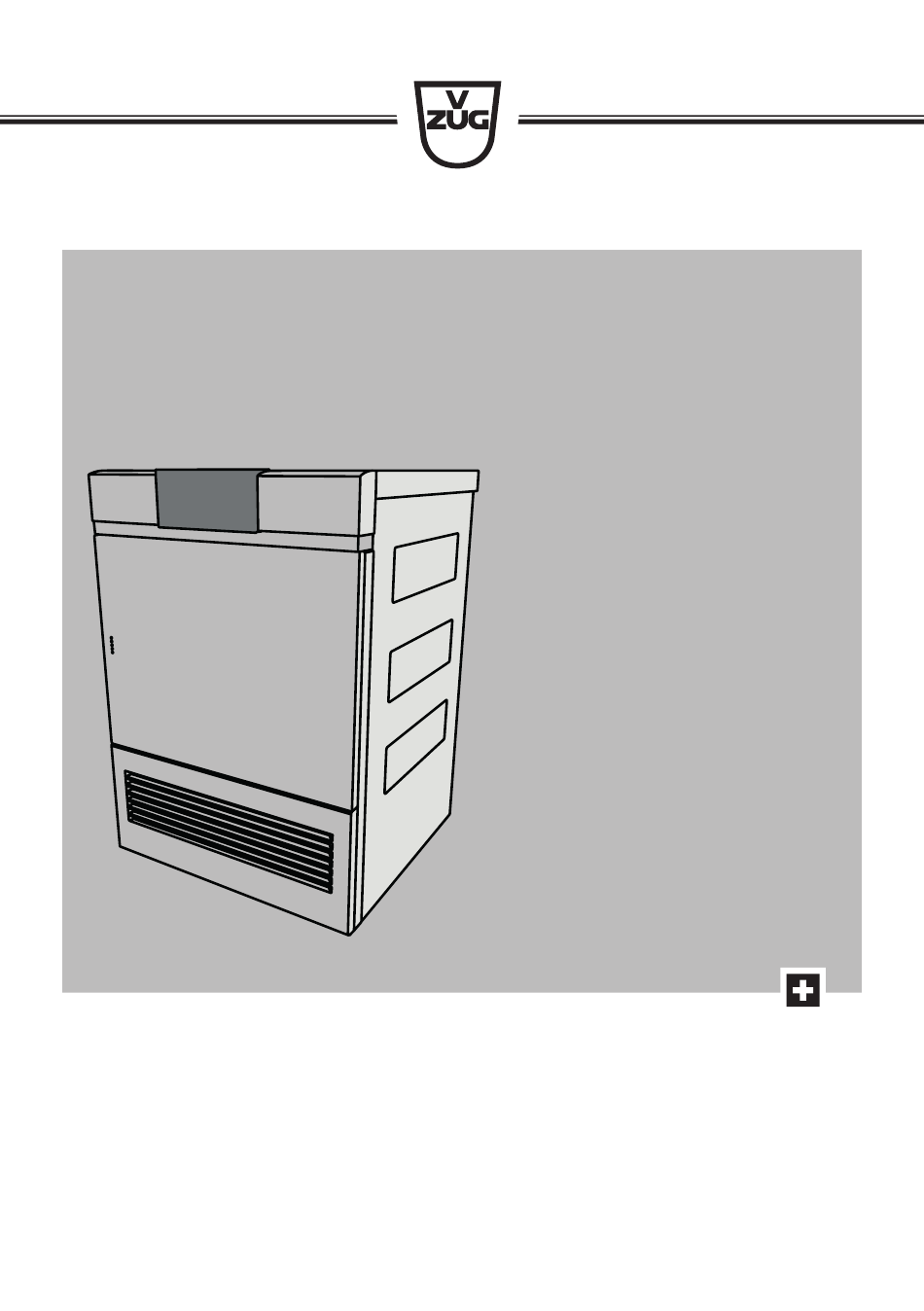

- Page 1 Operating instructions Adora TS WP Tumble dryer...
- Page 2 © V-ZUG Ltd, CH-6302 Zug, 2018...
-
Page 3: Table Of Contents
Contents Cleaning the door filter and door filter mat .. 21 Safety precautions 4 Cleaning the front filter mat (annually) .. 22 General safety precautions ....... 4 Cleaning the moisture sensor ...... 22 Appliance-specific safety precautions .... 4 Cleaning the temperature sensor.... 23 Instructions for use .......... 6 Cleaning the appliance........ 23 Using for the first time........ -
Page 4: Safety Precautions
Safety precautions General safety precautions conditions of overvoltage cat- egory III for full isolation, an isolating device must be in- ▪ Read the operating instruc- corporated into the perman- tions before using the appli- ently installed electrical install- ance for the first time! ation in accordance with the installation regulations. - Page 5 1 Safety precautions vaporizing medium. The use waterproof textiles, rubber of other substances may give backed articles and clothes rise to a toxic or fire risk. or pillows fitted with foam rub- ▪ The appliance has hot sur- ber pads should not be dried faces to evaporate active in the tumble dryer.
-
Page 6: Instructions For Use
1 Safety precautions from appliances burning gas inate, the hazard. or other fuels. Instructions for use ▪ Do not install the appliance Before using for the first time behind a door that locks, a ▪ The appliance must be installed and con- sliding door or a door with a nected to the electricity supply in accord- ance with the separate installation instruc-... -
Page 7: Using For The First Time
1 Safety precautions Note on use Using for the first time ▪ If the appliance is not operating properly, The appliance must be installed and disconnect it from the power supply im- connected to the electricity supply mediately. by a qualified fitter/electrician in ac- ▪... -
Page 8: Note On The Operating Instructions
Validity The product family (model number) corres- ponds to the first alphanumerics on the iden- tification plate. These operating instructions apply to: Appliance Adora TS WP designation Type WTATSWPZ Product family 12005 Variations depending on the model are noted in the text. -
Page 9: Appliance Description
Appliance description Appliance construction Door filter with door filter mat Front grille Pivoting operating panel Identification plate / serial number (FN) Cover for door filter Ventilation grille Front filter mat Appliance door Indicator lights Illuminated: relevant function active Off: relevant function not selectable Flashing: relevant function selectable... -
Page 10: Operating And Display Elements
2 Appliance description Operating and display elements Pause End of programme Display Automatic programmes Additional functions EcoManagement Additional functions Automatic programmes Additional programme Easy care Extra dry Timed drying ReversePlus Normal dry Delayed start Iron dry Damp Fabric types Standard programme... -
Page 11: Programme Overview
3 Programme overview Programme overview To avoid damaging the laundry, follow the fabric care symbols on garment labels: Tumble dry, medium heat Tumble dry, low heat Do not tumble dry Automatic programmes Automatic drying programmes have 3 phases: Drying The laundry is dried according to the settings. The laundry is cooled down to a temperature at which creasing is min- Cooling down / imized. -
Page 12: Fabric Types
3 Programme overview Fabric types ▸ Press the button repeatedly to select the fabric type. Airing: For refreshing or airing little-worn garments. 1–1.5 kg Woollens: Gentle drying for woollen textiles labelled as washable. 1 kg Silks: For drying silk fabrics. Follow the fabric care symbols as silk 1–1.5 kg tends to crease easily. -
Page 13: Additional Functions
3 Programme overview Additional functions Easy care: Gentle drying for mixed fabrics (e.g. shirts, pullovers and 1–2.5 kg T-shirts). The level of dryness is reduced. To prevent creasing, put only a few items of laundry in the washing drum and unload them as soon as the programme ends. -
Page 14: Operating The Appliance
4 Operating the appliance Operating the appliance Preparations ▸ Insert the mains plug into a suitable mains socket. ▸ Press the markings at the edge of the door (5 dots) and open the appliance door. ▸ Loosely load wet laundry items one by one into the appliance. ▸... -
Page 15: Selecting Additional Functions
4 Operating the appliance The expected duration remaining is sub- Drying 1h24 sequently displayed. The programme may possibly take longer than Calculating time 0h15 remaining initially calculated. In this case, the duration re- maining freezes while the programme runs. The letter «h»... -
Page 16: Aborting A Programme
4 Operating the appliance Aborting a programme ▸ Press button. The programme is aborted. All settings are cleared. Interrupting a programme Through opening the appliance door ▸ Open the appliance door. The indicator light for the programme selected illuminates. The programme is interrupted. -
Page 17: End Of Programme
4 Operating the appliance Interrupting a programme ▸ Open appliance door. The programme is interrupted. Washing can be added. ▸ Close appliance door. ▸ Hold the flashing programme button depressed and at the same time press the «End of programme» button. The programme continues. -
Page 18: Ecomanagement Statistics
5 User settings ▸ Unload the laundry. Note: If the appliance door is opened during the «Final airing» phase, the programme is abor- ted. All displays go out. Each time after use ▸ Clean door filter (see page 21). ▸ Close appliance door. 4.11 EcoManagement statistics Energy consumption can be displayed before a programme starts or after a programme ends. - Page 19 5 User settings EcoManagement EcoManagement When this function is activated, expected consumption values appear at the start of the programme and actual consump- EcoManagement tion values appear at the end of the pro- gramme. The stored consumption values EcoManagement Clear counter? can be deleted as well.
- Page 20 5 User settings Brightness Brightness The display can be adjusted to the pre- Very dark vailing lighting conditions. Brightness Medium bright Brightness Very bright Button tone Button tone The button tone can be turned on and off. The button tone for the Button tone buttons cannot be turned off.
-
Page 21: Care And Maintenance
6 Care and maintenance Care and maintenance To minimize the risk of fire hazard regularly clean the filters! A thick coating of fluff can trigger the «A9 Clean filter and mats» (see page 23) error mes- sage. Cleaning the door filter and door filter mat Cleaning the door filter (each time after tumble drying) ▸... -
Page 22: Cleaning The Front Filter Mat (Annually)
6 Care and maintenance Cleaning the front filter mat (annually) If the «A9 Clean filter and mats» error message still appears after the door filter and the door filter mat have been cleaned, the front filter mat must also be carefully cleaned. ▸... -
Page 23: Cleaning The Temperature Sensor
7 Trouble-shooting Cleaning the temperature sensor ▸ Open the appliance door and remove the front grille 1. ▸ Clean the temperature sensor 2 with a damp cloth. ▸ Put back the front grille 1. Cleaning the appliance ▸ Wipe the outside of the appliance from time to time with a damp cloth and wipe dry. Trouble-shooting You may be able to trouble-shoot the following errors yourself. -
Page 24: Other Possible Problems
7 Trouble-shooting Display Possible cause Solution A9 Clean filter ▪ Door filter, door filter ▸ Check and and mats mat or front filter mat clean (see page 21) parts. are blocked. ▸ Press the button. ▸ Restart the programme. Insert door filter / ▪... - Page 25 7 Trouble-shooting Problem Possible cause Solution No new pro- ▪ A programme was in- ▸ Press the button. gramme can be terrupted. ▸ Select a new programme. selected. The washing is ▪ Mixed laundry load. ▸ Select a longer programme. not dry enough.
-
Page 26: Spare Parts
8 Spare parts Spare parts Please give model number and exact designation when ordering parts. Door filter Door filter mat Front grille Front filter mat Technical data Dimensions Ambient conditions Height 85 cm Permissible room temperature when appliance is in operation: Width 59.5 cm 5 °C to 35 °C... - Page 27 9 Technical data Data for the standard programme Load capacity Programme Energy Energy con- duration star rating sumption hrs./mins. 2h42 1.66 Consumption values The stated values for the programme duration and energy apply for the maximum stated ca- pacity with a wash spun at around 1200 rpm (corresponds to a moisture level of around 60%).
-
Page 28: Drying Tips
10 Drying tips Drying tips 10.1 Saving energy ▪ Spin the washing in the washing machine at a high spin speed before tumble drying. Mech- anical draining in the washing machine is much more efficient than water evaporation in the tumble dryer. -
Page 29: Disposal
11 Disposal Disposal 11.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 11.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 30: Notes
Notes... -
Page 32: Quick Instructions
You will find them on the identifica- V-ZUG will be happy to help you with any tion plate of your appliance. general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progressive service agreements.
