Operating instructions

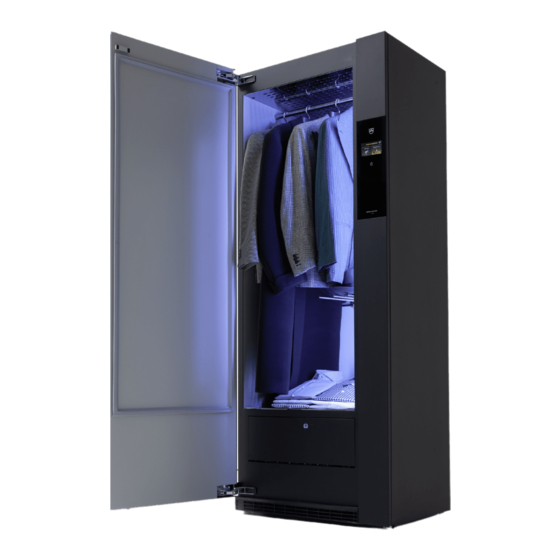

REFRESH-BUTLER
Textile care system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REFRESH-BUTLER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG REFRESH-BUTLER

Summary of Contents for V-ZUG REFRESH-BUTLER

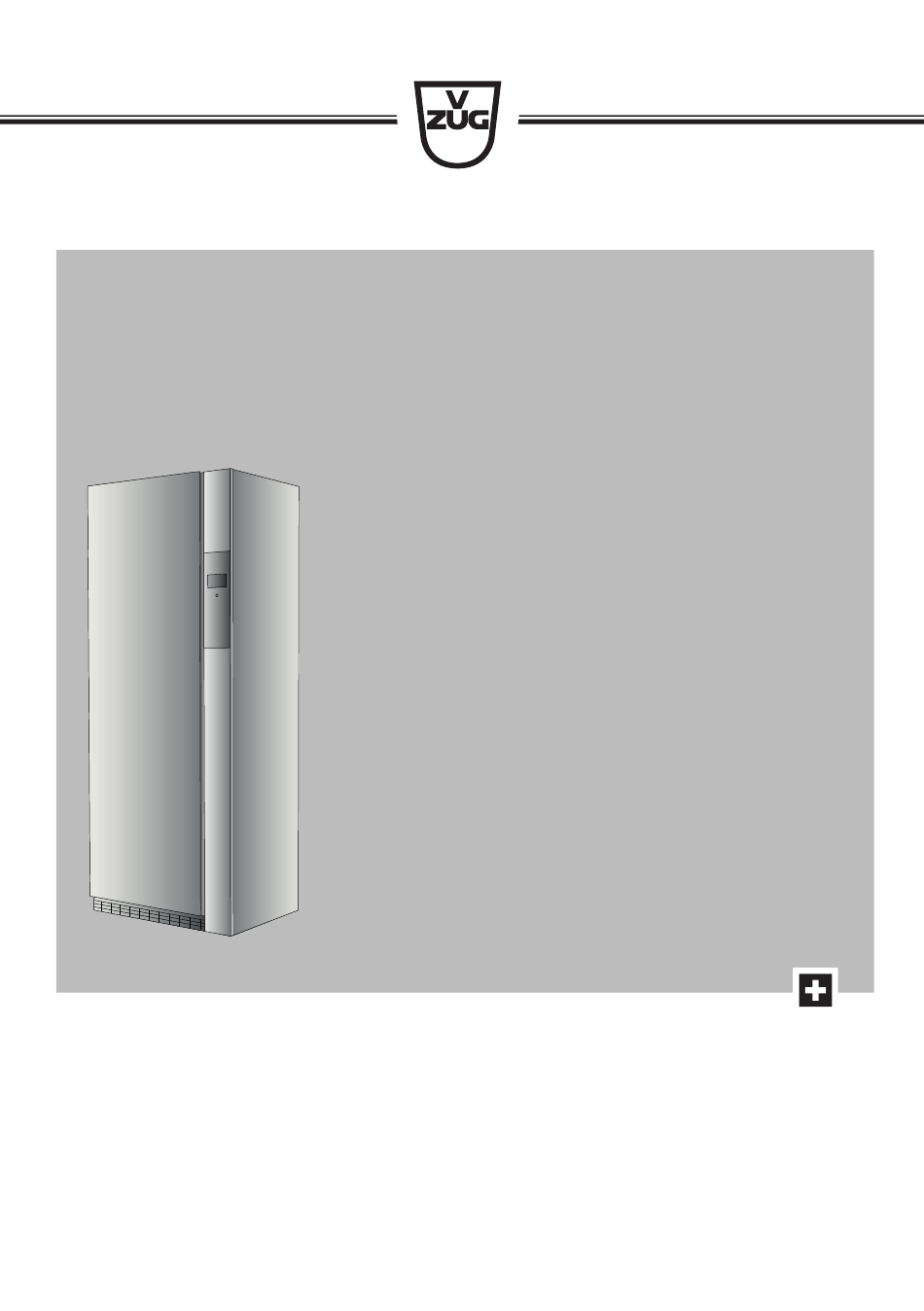

  • Page 1: Operating Instructions

    Operating instructions REFRESH-BUTLER Textile care system...
  • Page 2 These operating instructions apply to: Model Product family REFRESH-BUTLER 14002 Variations depending on the model are noted in the text. Colour operating instructions can be downloaded from the internet from www.vzug.com. © V-ZUG Ltd, CH-6301 Zug, 2017...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions  5 Symbols used ...................... 5 General safety precautions .................  6 Appliance-specific safety precautions...............  7 Instructions for use .................... 9 2 Disposal  11 3 Using for the first time  12 Where is the identification plate? .............. 12 4 Your appliance  13 Appliance description .................. 13 Appliance construction .................. 14...
  • Page 4 Delayed start...................... 38 Information...................... 38 Descaling...................... 39 7.10 Cleaning the air duct .................. 40 7.11 Operating mode .................... 40 7.12 V-ZUG Service ..................... 40 7.13 Updating the software .................. 41 8 Care and maintenance  42 Cleaning intervals.................... 42 «Clean filter units» error message .............. 43 Build-up of fluff..................... 43 Cleaning the main filter .................. 43 Cleaning the main filter mat................ 44...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Appliance-Specific Safety Precautions

    1 Safety precautions Appliance-specific safety precautions ▪ Children under 3 years of age must be kept away from the appliance unless they are constantly supervised. ▪ The appliance has a maximum dry load capacity of 5 kg. ▪ The appliance is only to be used with the recommended va- porizing medium.
  • Page 8 1 Safety precautions ▪ Exhaust air from the appliance must not be discharged into a flue which is used for exhausting fumes from appliances burn- ing gas or other fuels. ▪ Do not install the appliance behind a door that locks, a sliding door or a door with a hinge that lies opposite the hinge of the appliance.

  • Page 9: Instructions For Use

    1 Safety precautions Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪...
  • Page 10 1 Safety precautions Caution: Risk to life! ▪ It is forbidden to enter or remain in the appliance. Danger of suffocation! ▪ Packaging material, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from chil- dren.

  • Page 11: Disposal

    Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g.

  • Page 12: Using For The First Time

    Using for the first time The appliance can only be operated after standing in the normal oper- ating position for around 2 hours. Where is the identification plate? ▸ Open the appliance door. – The identification plate is located on the inside of the appliance door at the top (see arrow).

  • Page 13: Your Appliance

    Your appliance Appliance description The REFRESH-BUTLER uses steam and heat to refresh your clothes and re- duce odours and creases. Additionally, the extra programme hygiene leaves your washing germ free. The extra programme drying allows clothes that are wet from the rain to be dried particularly gently.

  • Page 14: Appliance Construction

    4 Your appliance Appliance construction 1 Clothes rail 2 TouchDisplay, On/Off button 3 Fold-down clothes rails 4 Basket 5 Main filter with filter mat below floor grille 6 Water tank cover 7 Fresh air grille with filter mat 8 Fresh water tank 9 Condensate tank 10 Appliance door Accessories...

  • Page 15: Operating And Display Elements

    4 Your appliance Operating and display elements TouchDisplay On/Off button TouchDisplay All available functions are displayed in the TouchDisplay and the desired func- tion can be selected by pressing the corresponding symbol or text. Programme Refreshing Programme selection Extra programmes Refresh Extra programmes Drying...
  • Page 16 4 Your appliance Programme settings Main programme Extra programmes Refreshing Drying Finishes in 1 h 30 Finishes in 1 h 30 Odour Level of dryness Load Load Easy care Easy care Timed refreshing Timed drying Crease guard Delayed start Delayed start Hygiene Finishes in 1 h 30 Easy care...
  • Page 17 Language Descale Brightness Cleaning the air duct Button tone Information Water hardness Operating mode Childproof lock V-ZUG Service Delayed start Update software Button state The buttons arranged on the TouchDisplay have three different states. Symbol Background Bright Dark Selectable function Programme or function can be selected.

  • Page 18: Programme Overview

    Programme overview Main refreshing programme With the main refresh programme your dry washing is freed of odours using steam and heat and creasing is reduced. The main refresh programme has 3 phases: Refresh The heater increases the circulating air temperature and the washing is dampened using steam, which accelerates the refreshing of the clothes.
  • Page 19 5 Programme overview The following diagram gives an overview of the programme settings in the main refresh programme. Strong Odour Medium Faint * Full Load Half-full Small * Easy care No * Timed refreshing Off * Crease guard No * Delayed start * Factory setting...
  • Page 20 5 Programme overview Odour ▪ Strong For washing with a strong odour after being in a smoky environment or a restaurant. ▪ Medium For washing with a medium-strong odour after being in a smoky environment or a restaurant. ▪ Faint Sprint programme For washing with a faint odour.

  • Page 21: Extra Programme «Drying

    Extra programme «Drying» In the extra programme «Drying», warm air flows through your hung-up wash- ing for particularly gentle drying. The REFRESH-BUTLER dries clothes irre- spective of whether you washed them in the washing machine or by hand or whether you were caught out in the rain. A heat pump is used for drying and the drying process is monitored by a moisture and temperature sensor.

  • Page 22: Extra Programme «Hygiene

    5 Programme overview Load ▪ Full For a maximum 5 kg dry load spread out on the upper and lower clothes rails. ▪ Half-full For a normal load spread out on the upper and/or lower clothes rail. ▪ Small For a small load, e.g. 4 shirts. Easy care ▪...
  • Page 23 5 Programme overview Drying The washing is dried by the heat pump. The drying programme is monitored by a moisture and temperature sensor. As soon as the required level of dry- ness is reached, the «Cool down / Airing» phase starts. Cool down / Airing When the «Drying»...

  • Page 24: Operating The Appliance

    Operating the appliance Preparing the appliance ▸ Insert plug into mains socket or turn on at wall switch. Arranging the washing ▸ Open the appliance door. ▸ Spread the washing out on the clothes rails and in the basket. See «Load- ing examples».

  • Page 25: Loading Examples

    6 Operating the appliance Loading examples...

  • Page 26: Refreshing And Drying Tips

    6 Operating the appliance Refreshing and drying tips Loading tips ▪ Place woollens and other knitted items in the basket or on the rails at mid- height. ▪ Larger items of clothing can be hung diagonally in the appliance. ▪ Shoes trees can accelerate the drying process for shoes. After drying, allow the shoes to cool down for one hour.

  • Page 27: Filling The Fresh Water Tank

    6 Operating the appliance Filling the fresh water tank Do not use demineralized (filtered) or distilled water. ▸ Open the appliance door. ▸ Open the water tank cover 1 (press in the middle at the top). ▸ Using the handle, take out the fresh water tank 2 with the symbol.

  • Page 28: Programme Settings

    6 Operating the appliance Programme settings Main programme Extra programmes Refreshing Drying Finishes in 1 h 30 Finishes in 1 h 30 Odour Level of dryness Load Load Easy care Easy care Timed refreshing Timed drying Crease guard Delayed start Delayed start Hygiene Finishes in 1 h 30...

  • Page 29: Programme Selection

    6 Operating the appliance Programme selection ▸ To switch the appliance on: press the button below the TouchDisplay. – The programme selection Programme selection appears in the display: Refresh Extra programmes ▸ Press the desired programme, e.g. refresh. – An overview of the pro- Refreshing gramme settings appears Finishes in 1 h 30...
  • Page 30 6 Operating the appliance ▸ Press the desired setting value, e.g. half-full. – The selected button has a Refreshing blue background. Finishes in 1 h 30 – The overview of the pro- gramme settings appears in the display again. ▪ Orange-coloured bars or symbols in the display show the selected setting values.

  • Page 31: Changing Selection

    6 Operating the appliance Changing selection During programme selection ▸ Press the desired programme setting. ▸ Press the setting value. – The overview of the programme settings appears in the display again. Once a programme has started it is no longer possible to change it. The programme must be aborted.

  • Page 32: Interrupting A Programme

    6 Operating the appliance 6.11 Interrupting a programme Hot steam may escape when the appliance door is opened: scalding hazard! When the appliance door is opened, condensed drops of water can land on the floor. The inside of the appliance may be hot. Unload the washing care- fully.

  • Page 33: Aborting A Programme Before Time

    6 Operating the appliance 6.12 Aborting a programme before time Hot steam may escape when the appliance door is opened: scalding hazard! When the appliance door is opened, condensed drops of water can land on the floor. The inside of the appliance may be hot. Unload the washing care- fully.

  • Page 34: End Of Programme

    In such cases, the washing can be dried off on the «Timed drying» programme setting. ▸ Unload the washing. The REFRESH-BUTLER is not a cupboard for storing clothes. ▸ Clean the main filter. ▸ Empty the water tank.

  • Page 35: User Settings

    User settings Adjusting user settings Providing no programme is running and no error message is displayed, the user settings can be changed. The procedure is generally the same for all set- tings. Changing user settings ▸ To switch the appliance on: press the button below the TouchDisplay.
  • Page 36 7 User settings ▸ Press the desired setting value to change the setting. – The selected button has a blue background. ▸ Press the button to confirm the setting. – The overview of the user set- Settings tings appears in the display again.

  • Page 37: Language

    Off * Start in Delayed start Finish in * Information Descale Clean air duct Silent * Operating mode Standard V-ZUG Service Update software * Factory setting Language The language in the display can be changed. Different languages are available for selection.

  • Page 38: Brightness

    7 User settings Brightness With this function the readability of the display can be adjusted to the prevail- ing lighting conditions. Levels of brightness Dark Medium Bright Very bright Button tone The button tone can be switched on/off. Water hardness The relevant range of water hardness can be set.

  • Page 39: Descaling

    7 User settings Descaling Whenever steam is produced, depending on the hardness of the local water supply (i.e. the limescale content of the water), limescale is deposited in the boiler. The appliance automatically detects when descaling is necessary. The time interval between descaling depends on the hardness of the water and frequency of use.

  • Page 40: Cleaning The Air Duct

    1 / 5 7.11 Operating mode There are two different operating modes. The appliance can be operated in the «Standard» mode or in the noise-optimized «Silent» mode. 7.12 V-ZUG Service This function is for use by the service technician.

  • Page 41: Updating The Software

    7 User settings 7.13 Updating the software With this function the software can be updated. Starting programme (see page 35) ▸ Push the SD card with the latest software into the card slot. ▸ Press the button to update the software.

  • Page 42: Care And Maintenance

    Care and maintenance Cleaning intervals Pos. Appliance part Cleaning interval Cleaning Main filter As required * ▸ Remove any fluff. Whenever there is a ▸ Clean with an abrasive heavier build-up of liquid cleaning agent and deposits a sponge. ▸ Rinse off with water and allow to drip dry.

  • Page 43: Clean Filter Units» Error Message

    8 Care and maintenance «Clean filter units» error message A thick coating of fluff results in a reduced process air flow which can impair the refreshing and drying process and trigger an error mes- sage. Check and, if necessary, clean the following parts in the appliance: ▪...

  • Page 44: Cleaning The Main Filter Mat

    8 Care and maintenance Cleaning the main filter mat Do not operate the appliance without the filter mat. ▸ Open the appliance door. ▸ Open back the floor grille 1 (see arrow). ▸ Pull out the main filter cassette 2 and open it.

  • Page 45: Cleaning The Water Tank

    8 Care and maintenance Cleaning the water tank Do not clean the water tank in the dishwasher. ▸ Open the appliance door. ▸ Open the water tank cover 1 (press in the middle at the top). ▸ Using the handle, take out the wa- ter tank.
  • Page 46 8 Care and maintenance ▸ Lift the lid at the front and back (through the opening). ▸ Press the lid down at the front and back. ▸ Slot the water tank into position in the water tank compartment and push the flap to close.

  • Page 47: Trouble-Shooting

    This section lists faults that can be solved simply by following the instructions given. If another fault is displayed, the fault cannot be resolved or «Contact V-ZUG» appears in the message, please call Customer Services. Before calling Customer Services, please note down the error mes- sage in full.
  • Page 48 9 Trouble-shooting ... «FXX/EXX FN XX» appears Possible cause Solution ▪ Various situations can lead ▸ Cancel the error message by pressing the to an «F» message. button. ▸ Switch off the power supply for about 1 minute. ▸ Switch the power supply back on again and select a new programme.

  • Page 49: Accessories And Spare Parts

    Accessories and spare parts Please give product family and exact designation when ordering parts. Clothes hangers Basket Fresh water tank Condensate tank Main filter Main filter mat...
  • Page 50 10 Accessories and spare parts Fresh air grille Fresh air filter mat durgol swiss steamer descaler The descaler is also available from specialist retailers.

  • Page 51: Technical Data

    Technical data Dimensions Height: 1960 mm Width: 775 mm Depth: 570 mm Weight: 170 kg Dry load capacity: 5 kg Ambient conditions Permissible room temperature: 5 °C to 30 °C Electrical connection ▸ See identification plate (see page 12) 11.1 Consumption data for factory setting Duration Energy Temperature Fresh water consumption Relative moisture...

  • Page 52: Note For Testing Institutes

    11 Technical data 11.2 Note for testing institutes The note for testing institutes can be obtained from the internet: www.vzug.com/testinstitute. 11.3 EcoStandby The appliance is equipped with an automatic energy-saving «EcoStandby» function to avoid consuming energy unnecessarily. The interior illumination and the TouchDisplay go out 5 and 20 minutes re- spectively after the programme finishes.

  • Page 53: Index

    Index Electrical connection ........51 Accessories ........... 14 Basket.......... 14 Fluff Clothes hangers ........  14 Build-up .......... 43 Additional functions ........17 Fresh water tank Airing ............18, 23 Filling ...........  27 Ambient conditions........51 Appliance ............13 Construction ........ 14 Description .........
  • Page 54 Technical questions........55 Timed drying ..........22 Timed refreshing ........... 20 TouchDisplay ..........15 Type..............2 Update software ..........41 User settings........... 17, 35 Validity............... 2 V-ZUG Service ..........40 Warranty extensions ........55 Washing Arranging .......... 24 Water hardness ..........38...

  • Page 55: Service & Support

    V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive ser- vice agreements.
  • Page 56 End of programme appears in the display: ▸ Open the appliance door. ▸ Unload the washing. ▸ Clean the main filter. ▸ Empty the water tank. ▸ Close the appliance door. ▸ Press the button. 1015614-R04 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug info@vzug.com, www.vzug.com...
