Overland Storage ARCvault 2U Series Quick Start Manual

ARCvault Series 2U
Repackaging Instructions
For Return to Overland

Remove Magazines

CAUTION: Keep loaded magazines level. Don't hold a
magazine by the handle; support it with both hands.
NOTE: If unable to power up the library, refer to the ARCvault
12 or ARCvault 24 User Guide on removing magazines
manually.
1. Press Utilities > Service > Access All Mags > OK (at
the going offline message) > Unlock All.
2. Open the right door and remove the right magazine.
3. For an ARCvault 24, open the left door and remove the
left magazine (Figure
Door

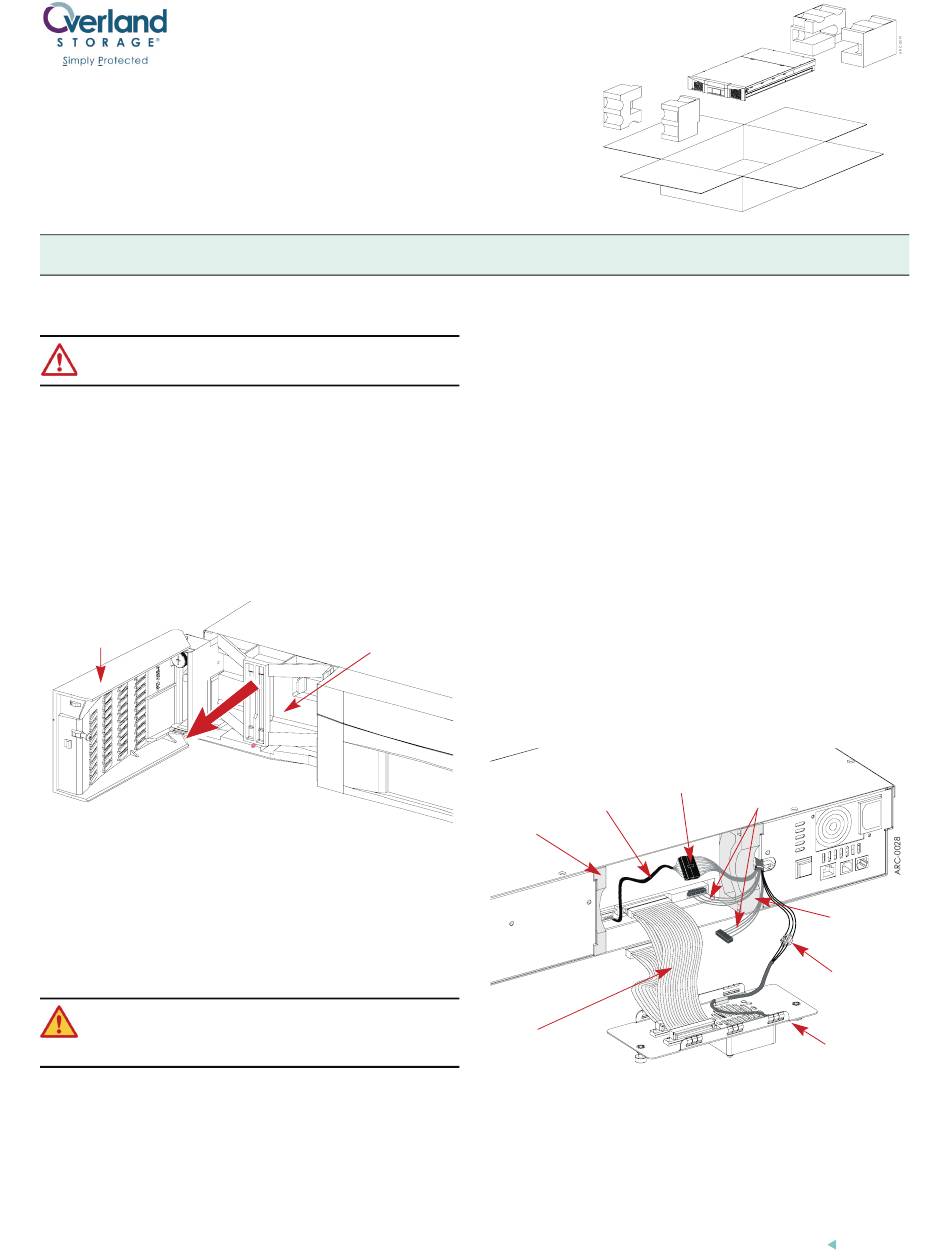

Figure 1. Removing an ARCvault 24 Left Magazine
4. Press Relock All, and then OK at the message.
5. Press Back three times.
6. Press Power > Power Off Library > OK (at the
power down message) to power down the unit.

Remove Unit from Rack

WARNING: It is recommended that a mechanical lifter
(or at least two people) be used to prevent injury during
rack installation or removal.
1. At the rear, remove the power cord and all cables.
2. At the front, open the doors and loosen the retaining
screws inside.
Part Number 10400117-101 04/2007
TM
Preparing the Library
1).
Media Magazine
©2007 Overland Storage, Inc.
3. Carefully remove the ARCvault unit from the rack
and place it on a secure, flat surface.
NOTE: Some units require a tool to release the rail stops.

Remove Drive Assemblies

1. Loosen the two thumbscrews on the drive cover.
2. Remove the drive cover
a. Hold the cover about 2 inches (5cm) below the unit.
b. Unplug the fan wiring from the fan connector.
c. Pull the drive assembly out about 1 inch (2.5cm)
and unplug the SCSI cable.
d. Set the drive cover aside.
3. Unplug the drive power cables and position them off
to the right.
4. Disconnect the serial jumper cable from the serial
connector.
Leave the jumper cable attached to the drive assembly.
5. With the wiring moved off to the right, grasp the
guide grips and remove the drive assembly.
Serial
Serial
Jumper Connector
Cable
Right Guide
SCSI
Cable
Figure 2. Drive Assembly Connections
(Figure 2) as follows:
Drive Power
Cables
Left Guide
Fan
Connector
Drive Cover
Page 1 of 2
