AND-DNV3N3-

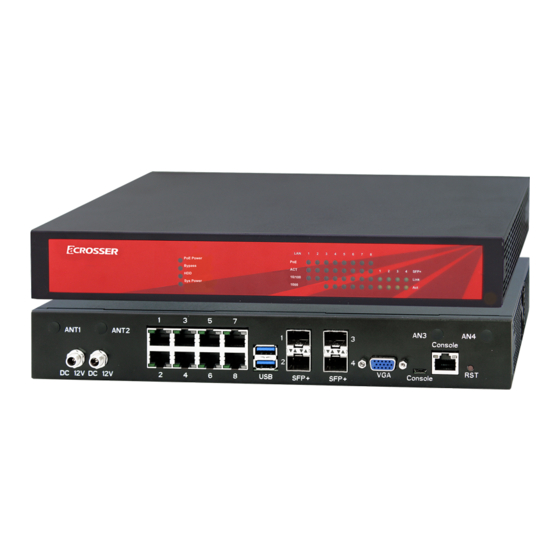

Networking Micro Box
®
• Intel
Denverton
• 8 GbE Copper (1-pair bypass)
• SFP+
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com
AND-DNV3N3-xxR Series
®
SoC
R
xx
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AND-DNV3N3-R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acrosser Technology AND-DNV3N3-R Series

Summary of Contents for Acrosser Technology AND-DNV3N3-R Series

  • Page 1 AND-DNV3N3-xxR Series AND-DNV3N3- Series Networking Micro Box ® ® • Intel Denverton SoC • 8 GbE Copper (1-pair bypass) • SFP+ User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    AND-DNV3N3-xxR Series Table of Contents 1. System Introduction ..............5 1.1. Specifications ......................5 1.2. Package Contents ...................... 8 1.3. ANR-DNV3N3-xxR Series Comparison Table ............8 1.4. System Dissection ...................... 9 1.4.1. Dimensions ..................... 9 1.4.2. Front I/O Panel ....................10 1.4.3.
  • Page 4 4.3. API List and Descriptions ..................37 4.3.1. GPIO ......................37 4.3.2. Watchdog ...................... 38 4.3.3. LAN Bypass Subsystem ................38 4.3.4. Notes ......................40 5. FAQ ....................41 Q 1. Where is the serial number located on my system? ..........41 Acrosser Technology Co., Ltd.

  • Page 5: System Introduction

    AND-DNV3N3-xxR Series System Introduction The AND-DNV3N3-xxR series networking product is based on Intel's Atom C3000 Refresh CPU, powerful and scalable for vary application scenarios. This series provides a flexible system expansion versatility by supporting from Intel Atom C3338R(2 core), C3558R(4 core) to C3758R(8 core) with 8x GbE copper LANs (with 1-pair bypass), 2x or 4x 10G fiber networks (SFP+).
  • Page 6 • Software programmable 0~255 Seconds, 0=disable timer. Battery • Lithium Battery, 3V 220mAH (CR2032), for RTC Hardware Monitoring • CPU Voltage • CPU Temperature • System Temperature • Fan Speed (C3758R) Security & Mgmt. • On-board TPM 2.0 Acrosser Technology Co., Ltd.
  • Page 7 AND-DNV3N3-xxR Series Power Requirement Power Adapter • 12VDC, 40W or 60W Adapter Software OS Support • Linux Kernel 4.4 & above, (64-bit) Mechanical & Environment Dimension • 300(L) x 201(W) x 44(H) mm Operating Temperature • 0 ~ 40°C (32 ~ 104°F) Storage Temperature •...

  • Page 8: Package Contents

    AND-DNV3N3-08R Intel Atom C3758R (8-core) SoC, 8 GbE Copper (1-pair bypass), 4x SFP+, 2x USB 3.1, 1x 2.5”SATAIII, 1x CFast, 2x mPCIe socket (for WLAN and 4G LTE), 1x M.2 2280 card, 1x VGA, 2x DC-In and 60W AC adapter Acrosser Technology Co., Ltd.

  • Page 9: System Dissection

    AND-DNV3N3-xxR Series 1.4. System Dissection 1.4.1. Dimensions (Unit: mm) www.acrosser.com...

  • Page 10: Front I/O Panel

    AND-DNV3N3-xxR Series 1.4.2. Front I/O Panel • Sys Power System Power LED • Storage Storage Active LED • Bypass LAN Bypass LED • LAN 1~8 LAN 1~8 Link/Active LED • SFP+ 1~4 SFP+ 1~4 Link/Active LED Acrosser Technology Co., Ltd.

  • Page 11: Rear I/O Panel

    AND-DNV3N3-xxR Series 1.4.3. Rear I/O Panel • AND-DNV3N3-08R • AND-DNV3N3-04R • AND-DNV3N3-02R www.acrosser.com...
  • Page 12 SFP LAN Port • VGA Port • Console Console Port (RJ45) Pin # Signal SOUT • Console Console Port (Micro USB) Note: Both console ports (RJ45/ Micro USB) cannot be used at the same time. • Reset Button Acrosser Technology Co., Ltd.

  • Page 13: Components Assembly

    AND-DNV3N3-xxR Series Components Assembly Please follow the instruction to install the inner modules. 2.1. HDD/SSD Installation Step 1: Plug the SATA cable (both the signal and power) in the socket on PCB. Step 2: Connect the SATA cable with the HDD/SSD. www.acrosser.com...
  • Page 14 Step 3: Fasten the HDD/SSD with 4 screws onto the inner side of the chassis top cover. Step 4: Before closing the top cover, pay attation to arrange the cable wire among the PCB components spaces. Acrosser Technology Co., Ltd.

  • Page 15: Pcb Parts Description

    AND-DNV3N3-xxR Series Step 5: Fasten the cover with 4 screws. 2.2. PCB Parts Description There are four modular sockets/slots reserved to install your modules: CFast, Mini- PCIe, DDR, and M.2. Step 1: To install the M.2, you will have to remove the fixing screw first, and then have it fastened after inserting the module.

  • Page 16: Adapter Installation Description

    3 screws. Step 2: Put the power adapter on the holding plate, pass its DC-out cable through the hole on the ear bracket, and plug it in the DC 12V jack of the front chassis. Acrosser Technology Co., Ltd.
  • Page 17 AND-DNV3N3-xxR Series Step 3: Arrange the remaining power cord. Step 4: Fasten the adapter with cable ties to the holding plate. www.acrosser.com...

  • Page 18: Bios Settings

    Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Note: Listed at the bottom of the menu are the control keys. If you need any help with the item fields, you can press <F1> key, and it will display the relevant information. Acrosser Technology Co., Ltd.
  • Page 19 AND-DNV3N3-xxR Series • Total Memory This item displays the total size of memory available in the system. • System Date/System Time Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields.

  • Page 20: Advanced Setup

    Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. • Security Device Suppor Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Acrosser Technology Co., Ltd.

  • Page 21: Advanced Setup: Onboard Bypass Controller

    AND-DNV3N3-xxR Series • Pending operation Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change state of Security Device. • Platform Hierarchy Enable or Disable Platform Hierarchy. • Storage Hierarchy Enable or Disable Storage Hierarchy. •...

  • Page 22: Advanced Setup: W83627Dhg Super Io Configuration

    +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Acrosser Technology Co., Ltd.
  • Page 23 AND-DNV3N3-xxR Series Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4; Change Settings [Auto] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 24: Advanced Setup: W83627Dhg Hw Monitor

    Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Smart Fan Mode [Thermal Cruise Mode] : You can adjust FAN Target Temperatur and FAN Tolerance manually. If CPU temp is lower than target temp-tolerance, the fan will run at low fan Acrosser Technology Co., Ltd.

  • Page 25: Advanced Setup: Serial Port Console Redirection

    AND-DNV3N3-xxR Series speed. If CPU temp ishigherer than target temp+tolerance, the fan will run at full fan speed. [Manual Mode] : You can set fixed fan speed. • FAN Target Temperature Input a target temperature between 0 ~ 127°C. • FAN Tolerance Input a target temperature tolerance.
  • Page 26 Whensending data, if the receiving bufers are full, a “stop” signal can be sent to stop the datalow. Once the bufers are empty, a “start” signal can be sent to restart the low. Hardwarelow uses two wires to send start/stop signals. he options include [None] and [HardwareRTS/CTS]. Acrosser Technology Co., Ltd.

  • Page 27: Advanced Setup: Network Stack Configuration

    AND-DNV3N3-xxR Series • VT-UTF8 Combo Key Support Use this item to enable or disable the VT-UTF8 Combo Key Support for ANSI/VT100 terminals. • Recorder Mode Use this item to enable or disable Recorder Mode to capture terminal data and send it astext messages.

  • Page 28: Advanced Setup: Csm Configuration

    Use this item to control the Legacy/UEFI memory sequence. Options are: [UEFI and Legacy], [Legacy only], [UEFI only]. • Network This item provides control of the operation UEFI and regular PXE/Storage/Video, ramdomly read memory (OpROM). Options are: [UEFI], [Legacy], [Do not Launch]. Acrosser Technology Co., Ltd.

  • Page 29: Advanced Setup: Usb Configuration

    AND-DNV3N3-xxR Series 3.2.8. Advanced Setup: USB Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option USB Module Version disables legacy support if no USB devices are USB Controllers: connected. DISABLE 1 XHCI option will keep USB USB Devices:...

  • Page 30: Intelrcsetup

    [Enable] [Enable] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Acrosser Technology Co., Ltd.

  • Page 31: Intelrcsetup: South Bridge Chipset Configuration

    AND-DNV3N3-xxR Series • Turbo This feature allows processor cores to run faster than marked frequency in specific conditions. • Enable or Disable Intel Virtual Machine Extensions (VMX) for IA-32 processors that ® support Intel Vanderpool Technology. 3.3.2. IntelRCSetup: South Bridge Chipset Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc.

  • Page 32: Intelrcsetup: Sata Port

    F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Enable/disable port Enables/Disables SATA Controller port if supported by current cpu SKU. Acrosser Technology Co., Ltd.

  • Page 33: Intelrcsetup: Cfast Port

    AND-DNV3N3-xxR Series 3.3.4. IntelRCSetup: CFast Port Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. IntelRCSetup CFast Port Enables/Disables SATA Device Information: [Not Installed] Controller port if Device Size: [Unknown] supported by current Enable/disable port [Enabled] cpu SKU. →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 34: Boot Setup

    OEM logo instead of the normal POST messages. • Boot Option Priorities This feature allows the user to specify which devices are boot devices and the order of priority from which the systems boots from during startup. Acrosser Technology Co., Ltd.

  • Page 35: Save & Exit Setup

    AND-DNV3N3-xxR Series 3.6. Save & Exit Setup Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Save Options Reset the system after Save Changes and Reset saving the changes. Discard Changes and Reset Restore Defaults Boot Override →←: Select Screen...

  • Page 36: Software Installation And Programming Guide

    4. Get bypass wdt action. 5. Set bypass power on action. 6. Get bypass power on action. 7. Set bypass power off action. 8. Get bypass power off action. 9. Set bypass current action. 10. Get bypass current action. Acrosser Technology Co., Ltd.

  • Page 37: File Descriptions

    AND-DNV3N3-xxR Series 4.2. File Descriptions 4.2.1. GPIO/Watchdog/LAN Bypass Subsystem Module 1. TestUtility.exe The GPIO,Watchdog , Lan Bypass,. Console user interface bin binary. 2. Libw83627.h This file includes the declarations of the APIs and macro definitions. 3. Libw83627.a The static library for linux. 4.

  • Page 38: Watchdog

    16 character array. Return Value: 0: Successful, -1: fail. Syntax: int set_bypass_wdt(int pair, int time) Description: This function can set which pair bypass Wdt timer. Parameters: pair: 1-4 , time: 1-255(sec), 0:stop. Return Value: 0: Successful, -1: fail. Acrosser Technology Co., Ltd.
  • Page 39 AND-DNV3N3-xxR Series Syntax: int set_bypass_wdt_action(int pair, int action) Description: This function can set which pair bypass Wdt time up action. Parameters: pair: 1-4 , action: 0:bypass, 1:normal Return Value: 0: bybpass, 1: normal, -1: fail. Syntax: int get_bypass_wdt_action(int pair) Description: This function can get which pair bypass Wdt time up action.

  • Page 40: Notes

    Parameters: None. Return Value: 0: Successful, -1: Fail Syntax: void lib_close(void) Description: if watchdog, gpio fuction not use on your program, please call this function. Parameters: None. Return Value: None. Acrosser Technology Co., Ltd.

  • Page 41: Faq

    AND-DNV3N3-xxR Series Q 1. Where is the serial number located on my system? • The serial number (S/N) is an alpha-numeric character located on the bottom or side chassis. (for reference only) www.acrosser.com...
  • Page 42 AND-DNV3N3-xxR Series Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
