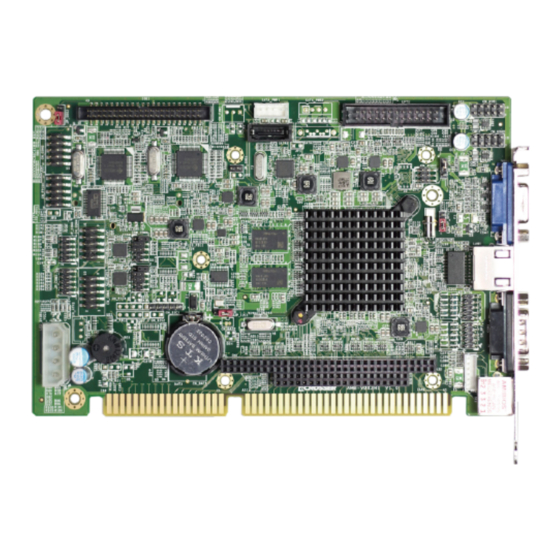

AMB-VDX3H1
An ISA Half-Size Board with
DM&P Vortex86DX3 CPU
• AMB-VDX3H1
(1GHz/1GB Memory, 2x RS232, 2x RS232/RS422/RS485)
• AMB-VDX3H1A
(1GHz/1GB Memory, 2x RS232)
• AMB-VDX3H1B
(1GHz/512MB Memory, 2x RS232, 2x RS232/RS422/RS485)
• AMB-VDX3H1C
(1GHz/512MB Memory, 2x RS232)
• AMB-VDX3H1A1
(600MHz/1GB Memory, 2x RS232)
• AMB-VDX3H1B1
(600MHz/512MB Memory, 2x RS232, 2x RS232/RS422/RS485)
• AMB-VDX3H1C1
(600MHz/512MB Memory, 2x RS232)
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com
AMB-VDX3H1 Series
Series

Advertisement

Table of Contents
loading

Related Manuals for Acrosser Technology AMB-VDX3H1 Series

Summary of Contents for Acrosser Technology AMB-VDX3H1 Series

  • Page 1 • AMB-VDX3H1B (1GHz/512MB Memory, 2x RS232, 2x RS232/RS422/RS485) • AMB-VDX3H1C (1GHz/512MB Memory, 2x RS232) • AMB-VDX3H1A1 (600MHz/1GB Memory, 2x RS232) • AMB-VDX3H1B1 (600MHz/512MB Memory, 2x RS232, 2x RS232/RS422/RS485) • AMB-VDX3H1C1 (600MHz/512MB Memory, 2x RS232) User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    AMB-VDX3H1 Series Table of Contents 1. Introduction ..............5 1.1. Models ........................5 1.2. Specifications ......................5 1.3. Packing List ........................ 7 1.4. Block Diagram ......................7 2. Hardware Information ...........8 2.1. Mainboard Layout ....................... 8 2.1.1. Top View ......................8 2.1.2.
  • Page 4 Q 2. Why the storage device connected from IDE1 and SATA1 connector cannot run WinCE6.0 ? ......................34 Q 3. What to do when the Windows screen size is larger than your monitor dimensions? ......................34 Acrosser Technology Co., Ltd.

  • Page 5: Introduction

    AMB-VDX3H1 Series Introduction AMB-VDX3H1 Series is an ISA half-size board with DM&P Vortex86DX3 Dual Core CPU, the best choice of ISA card for industrial SBC of factory automation environment. 1.1. Models This manual is applied to the following models: 1. AMB-VDX3H1 2.
  • Page 6 • ISA Edge Finger or 4Pin ATX Peripheral Power Connector Software OS support • DOS • Windows XP (32 bit) • Windows 7 (32 bit) (Only support AMB-VDX3H1A, AMB- VDX3H1A1) • Win CE 6.0(32 bit), Optional Acrosser Technology Co., Ltd.

  • Page 7: Packing List

    • 0 ~ 90% @ 40°C, non-condensing Safety • CE, FCC Class A 1.3. Packing List Check if the following items are included in the package. Item Q’ty AMB-VDX3H1 Series Board � Quick Guide � Utility CD � 1.4. Block Diagram...

  • Page 8: Hardware Information

    AMB-VDX3H1 Series Hardware Information 2.1. Mainboard Layout 2.1.1. Top View SATA_PWR1 JP_IDE2 CN_USB1 IDE1 SATA1 CN_COM2 CN_USB2 CN_FPIO1 CN_COM4 JP_GP1 SW_COM4 CN_COM3 SW_COM3 CN_I2C1 JP_I2C1 CN_GP2 CN_GP1 CN_BAT1 CN_PWR1 CN_KM1 Acrosser Technology Co., Ltd.

  • Page 9: Io View

    AMB-VDX3H1 Series 2.1.2. IO View 2.1.3. Bottom View www.acrosser.com...

  • Page 10: Connector And Jumper Pin Definition

    PS: Pin 41, 42: +5V/1.5A max Note: The jumper selection of HDD,SSD or ODD should be “Master”. JP_IDE2 IDE1 Vcc Jumper Setting: (Pitch: 2.54mm) Short Function +5V / 1.5A (default for HDD) +3.3V / 1.5A SATA1 Standard SATA 7-pin Connector Acrosser Technology Co., Ltd.
  • Page 11 AMB-VDX3H1 Series SATA_PWR1 SATA Power Cable Connector (Pitch:2.54mm) Pin # Signal +12V +3.3V CN_BAT1 CR2032 Battery Holder CN_KM1 KB/MS Cable Connector: (Pitch: 2mm) Pin # Signal MS DAT KB DAT MS CLK KB CLK CN_USB1 USB 2.0 Cable Connector (Pitch: 2.54mm)
  • Page 12 RS-422 Mode (SW_COM3/4 must set 000 or 100) Pin # Signal Pin # Signal TX(B) TX(A) RX(A) RX(B) RS-485 Mode (SW_COM3/4 must set 010 or 110) Pin # Signal Pin # Signal D- (B) D+ (A) Acrosser Technology Co., Ltd.
  • Page 13 AMB-VDX3H1 Series SW_COM3 CN_COM3 & CN_COM4 Jumper Setting (Pitch: 2mm) SW_COM4 Mode Mode Description 9-10 Open Open Short Short Short RS422 Full Duplex Open Open Short Short Open RS232 Pure RS485 Half Duplex Open Open Short Open Short (TXEN#) RS422 Full Duplex w/...
  • Page 14 Power/HDD LED & Reset Button Cable Connector (Pitch: 2.54mm) Pin # Signal Pin # Signal HDD LED+ Power LED+ HDD LED- Power LED- Reset SW+ Reset SW- Standard CF Memory Card Connector VGA1 Standard VGA (D-Sub15 / Female) Connector Acrosser Technology Co., Ltd.
  • Page 15 AMB-VDX3H1 Series LAN1 Standard IEEE802.3 & RJ45 Connector 10Mbps 100Mbps LED1 Link Green Green Yellow Yellow LED2 Active Blinking Blinking COM1 Standard RS232/DTE (D-Sub9 / Male) Connector Pin # Signal Pin # Signal PS/2 Keyboard & Mouse Mixed Connector Pin #...

  • Page 16: Board Dimension

    AMB-VDX3H1 Series 2.3. Board Dimension (Unit: mm) Acrosser Technology Co., Ltd.

  • Page 17: Bios Settings

    AMB-VDX3H1 Series BIOS Settings This chapter describes the BIOS menu displays and explains how to perform common tasks needed to get the system up. It also gives detailed explanation of the elements found in each of the BIOS menus. The following topics are covered: •...

  • Page 18: Advanced Setup

    AMB-VDX3H1 Series 3.2. Advanced Setup 3.2.1. Serial/Parellel Port Configuration Acrosser Technology Co., Ltd.

  • Page 19: Usb Configuration

    AMB-VDX3H1 Series These options specify the serial port address and the parallel port mode and select the IRQ of Serial/Parallel Port. • SB Serial Port1 ~ Port4 SB Internal UART Serial Port. • IRQ Select SB Internal UART Serial Port. Serial Port IRQ Select.

  • Page 20: Pcipnp Setup

    Configuration option: 32, 64, 96, 128, 160, 192, 224, 248. • Available: The specified IRQ is available to be used by PCI/PnP devices. Reserved: The specified IRQ is reserved for use by legacy ISA devices. Acrosser Technology Co., Ltd.

  • Page 21: Boot Setup

    AMB-VDX3H1 Series 3.4. Boot Setup 3.4.1. Boot Settings Configuration www.acrosser.com...
  • Page 22 Disabled: Displays normal POST messages. Enabled: Displays OEM Logo instead of POST messages. • Boot-up Num-Lock Select Power-on state for Numlock. • PS/2 Mouse Support Select support for PS/2 mouse. • Beep Function Enable or Disable beep function. Acrosser Technology Co., Ltd.

  • Page 23: Security Setup

    AMB-VDX3H1 Series 3.5. Security Setup The Security menu items allow you to change the system security settings. Select an item then press <Enter> key to display the configuration options. • Supervisor Password Indicate whether a supervisor password has been set. If the password has been installed, Installed displays.

  • Page 24: Chipset Setup

    AMB-VDX3H1 Series 3.6. Chipset Setup • SouthBridge Configuration Select options for the South Bridge Configuration. Acrosser Technology Co., Ltd.
  • Page 25 AMB-VDX3H1 Series • ISA Configuration This allows you to set the ISA bus frequency and to select the clock value of I/O and Memory. www.acrosser.com...

  • Page 26: Exit Setup

    Load Optimal Default values for all the setup questions. F9 key can be used for this operation. • Load Failsafe Defaults Load Failsafe Default values for all the setup questions. F8 key can be used for this operation. Acrosser Technology Co., Ltd.

  • Page 27: Utility Installation

    AMB-VDX3H1 Series Utility Installation To test the utility, put the Driver CD into your CD-ROM drive. Step 1: Enter the “Utility” folder. Run the excution file. The “Test Utility” screen appears. Step 2: www.acrosser.com...
  • Page 28 AMB-VDX3H1 Series Click Test Item: Select (1) GPIO TEST Utility: Acrosser Technology Co., Ltd.
  • Page 29 AMB-VDX3H1 Series Select (2) WatchDog TEST Utility: Select (3) I2C TEST Utility: www.acrosser.com...

  • Page 30: Software Installation And Programming Guide

    Note: The initialization may have to wait for 1 minute due to scan pic port. Parameters: None Return Value: 0: Successful, -1: Fail. Syntax: lib_close(void) Description: library close, when not using this library must call this function. Parameters: None Return Value: 0: Successful, -1: Fail. Acrosser Technology Co., Ltd.

  • Page 31: Gpio

    AMB-VDX3H1 Series 5.2.2. GPIO The GPIO port 0 and 1 are always free for use normally. GPIO direction and data registers: Port 0 Port 1 Description Data Register 0: GPIO pin is input mode Direction Register 1: GPIO pin is output mode If send value 0FH to port 98H, it means that GPIO port0 [7-4] are input mode and port[3-0] are output mode.

  • Page 32: Watchdog

    NMI = 0xC0 SYS_RESET = 0xD0 Return Value: None Syntax: void wdt_reset() Description: This function reset trigger timer. Parameters: None Return Value: None Syntax: void wdt_disable() Description: This function stop trigger timer. Parameters: None Return Value: None Acrosser Technology Co., Ltd.

  • Page 33: I2C

    AMB-VDX3H1 Series 5.2.4. I2C Syntax: int i2c_read_byte(byte device_address, byte index, byte *data) Description: This function get the i2c index data. The data value save to pointer data. Parameters: None Return Value: If this function works successfully, the function returns 0, any other value stands for error.
  • Page 34 VGA Utility icon. Make a right click on the VGA Utility icon. Its setting menu pops up. Cancel the EDID Mode Expand function, the Windows screen will fit your monitor screen size. Acrosser Technology Co., Ltd.
  • Page 35 AMB-VDX3H1 Series Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
  • Page 36 Acrosser Headquarters Acrosser Nanjing Office 欣扬通电子有限公司 南京办事处 241新北市三重區光復路一段61巷26號10樓 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., Jiang (R.O.C.) Ning Dist., Nanjing City, Jiangsu Province, China TEL: +886-2-29999000 (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
