Acrosser Technology AND-DNV3Ax Manual

Networking micro box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

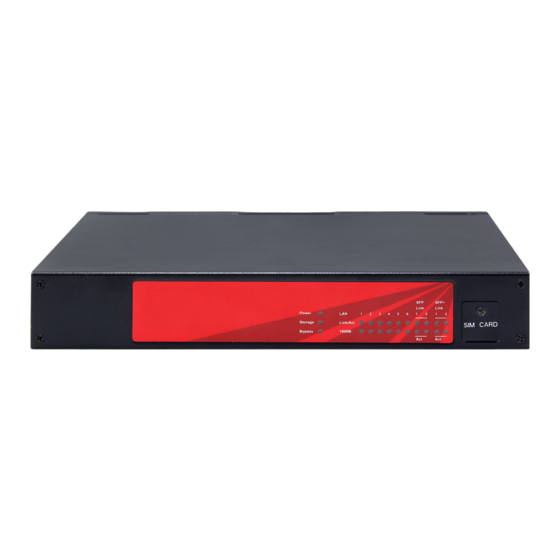

AND-DNV3Ax
Networking Micro Box
®
• Intel
Denverton
• 6x GbE Copper (1-pair bypass)
• 2x SFP
• 2x SFP+
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com
®
SoC
AND-DNV3Ax

Advertisement

Table of Contents
loading

Related Manuals for Acrosser Technology AND-DNV3Ax

Summary of Contents for Acrosser Technology AND-DNV3Ax

  • Page 1 AND-DNV3Ax AND-DNV3Ax Networking Micro Box ® ® • Intel Denverton • 6x GbE Copper (1-pair bypass) • 2x SFP • 2x SFP+ User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    AND-DNV3Ax Table of Contents 1. System Introduction ..............5 1.1. Specifications ......................5 1.2. Package Contents ...................... 8 1.3. Model Description ....................... 8 1.4. System Dissection ...................... 9 1.4.1. Dimensions ..................... 9 1.4.2. Front I/O Panel ....................10 1.4.3. Rear I/O Panel ....................11 2.
  • Page 4 Q 3. How to active the second SIM card Quectel EM12-G 4G ? ........41 Q 4. How to active the second SIM card SIMCOM SIM8202G 5G ? ......41 Q 5. How to switch over Sierra Module Dual SIM Setting ? ..........42 Acrosser Technology Co., Ltd.

  • Page 5: System Introduction

    AND-DNV3Ax System Introduction AND-DNV3A2/A3 is an entry level networking appliance. In a small box, this appliance equip a powerful Intel Atom C3000 SoC. This SoC supports multi-core CPU computing and support QAT, USB 3.0 and LAN controller which can be 10GbE capable.
  • Page 6 • Software programmable 0~255 Seconds, 0=disable timer. Battery • Lithium Battery, 3V 220mAH (CR2032), for RTC Hardware Monitoring • CPU Voltage • CPU Temperature • System Temperature • Fan Speed (for C3758) Security & Mgmt. • On-board TPM 2.0 Acrosser Technology Co., Ltd.
  • Page 7 AND-DNV3Ax Power Requirement Power Adapter • 12VDC, 40W or 60W Adapter (60W for C3758) Software OS Support • Linux Kernel 4.4 & above, (64-bit) Mechanical & Environment Dimension • 270(L) x 160(W) x 44(H) mm Operating Temperature • 0 ~ 40°C (32 ~ 104°F) Storage Temperature •...

  • Page 8: Package Contents

    Intel Atom C3558 (4-core) SoC, 6 GbE Copper (1-pair bypass), 2x SFP, 2x SFP+, 2x USB 3.0, 1x 2.5”SATAIII, 1x M.2E socket (for WLAN) and 1x M.2B (for 2x 4G LTE or 2242 SSD), and 1x 12V DC-In. 40W adapter and fanless design. Acrosser Technology Co., Ltd.

  • Page 9: System Dissection

    AND-DNV3Ax 1.4. System Dissection 1.4.1. Dimensions (Unit: mm) www.acrosser.com...

  • Page 10: Front I/O Panel

    SFP+ 1~2 Link/Active LED • SIM CARD SIM Card Socket SIM1 SIM2 Note: If you use a 4G LTE/5G module that only supports one single SIM card, please insert the SIM CARD into the SIM1 slot. Acrosser Technology Co., Ltd.

  • Page 11: Rear I/O Panel

    AND-DNV3Ax 1.4.3. Rear I/O Panel • ANT1 ~ ANT6 SMA Antenna Hole. Reserved for optional WLAN & WWAN (WiFi 5 & 4G/5G LTE) • Reset Reset Button • DC 12V DC12V Power Input • Console: Console Port (RJ45) Pin #...

  • Page 12: Components Assembly

    Please follow the instruction to install the inner modules. 2.1. SIM Card Installation Step 1: Remove the screw on the SIM Card cover plate. Step 2: Take down the SIM Card cover plate. Step 3: Insert the SIM card . Acrosser Technology Co., Ltd.
  • Page 13 AND-DNV3Ax Step 4: Push the SIM card into the socket until it docks in locked position. Step 5: Put the the SIM Card cover plate back. Step 6: Lock the SIM Card cover plate with screw . www.acrosser.com...

  • Page 14: Pcb Parts Description

    M.2B connector with USB 2.0+3.0 signal & SATA3, for 4G/5G module or 2242 SSD The 4G/5G antenna is SMA male type. Please connect to the socket marked with 4G/5G on the panel and have it fastened. Acrosser Technology Co., Ltd.
  • Page 15 AND-DNV3Ax DIMM1 EMMC NGFF_M_1 DIMM1 The memory module is DDR4 SO-DIMM type. Check if the DIMM keys align correctly with the connector. Firmly press the DIMM straight down to lock into position. The retaining clips snap into the locked position when the DIMM is firmly seated in the connector.

  • Page 16: Hard Disk Installation

    SATA power cable taken out from the accessory bag, and then fixed it to the top cover. When using HDD 9mm, please place the front side facing the mainboard and fix screws at 4 sides. Acrosser Technology Co., Ltd.
  • Page 17 AND-DNV3Ax Step 3: Before fixing the hard disk, stuff the yellow anti-vibration wire loop in the small circle first, and then use a cross screwdriver to fix the hard disk with screws on 4 sides. The yellow anti-vibration wire loop and the screws are included in the accessory bag.

  • Page 18: Bios Settings

    Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Note: Listed at the bottom of the menu are the control keys. If you need any help with the item fields, you can press <F1> key, and it will display the relevant information. Acrosser Technology Co., Ltd.
  • Page 19 AND-DNV3Ax • Total Memory This item displays the total size of memory available in the system. • System Date/System Time Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields.

  • Page 20: Advanced Setup

    Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. • Security Device Suppor Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Acrosser Technology Co., Ltd.

  • Page 21: Advanced Setup: Onboard Bypass Controller

    AND-DNV3Ax • Pending operation Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change state of Security Device. • Platform Hierarchy Enable or Disable Platform Hierarchy. • Storage Hierarchy Enable or Disable Storage Hierarchy.

  • Page 22: Advanced Setup: W83627Dhg Super Io Configuration

    +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Acrosser Technology Co., Ltd.
  • Page 23 AND-DNV3Ax Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4; Change Settings [Auto] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 24: Advanced Setup: W83627Dhg Hw Monitor

    Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Smart Fan Mode [Thermal Cruise Mode] : You can adjust FAN Target Temperatur and FAN Tolerance manually. If CPU temp is lower than target temp-tolerance, the fan will run at low fan Acrosser Technology Co., Ltd.

  • Page 25: Advanced Setup: Serial Port Console Redirection

    AND-DNV3Ax speed. If CPU temp ishigherer than target temp+tolerance, the fan will run at full fan speed. [Manual Mode] : You can set fixed fan speed. • FAN Target Temperature Input a target temperature between 0 ~ 127°C. • FAN Tolerance Input a target temperature tolerance.
  • Page 26 Whensending data, if the receiving bufers are full, a “stop” signal can be sent to stop the datalow. Once the bufers are empty, a “start” signal can be sent to restart the low. Hardwarelow uses two wires to send start/stop signals. he options include [None] and [HardwareRTS/CTS]. Acrosser Technology Co., Ltd.

  • Page 27: Advanced Setup: Network Stack Configuration

    AND-DNV3Ax • VT-UTF8 Combo Key Support Use this item to enable or disable the VT-UTF8 Combo Key Support for ANSI/VT100 terminals. • Recorder Mode Use this item to enable or disable Recorder Mode to capture terminal data and send it astext messages.

  • Page 28: Advanced Setup: Csm Configuration

    Use this item to control the Legacy/UEFI memory sequence. Options are: [UEFI and Legacy], [Legacy only], [UEFI only]. • Network This item provides control of the operation UEFI and regular PXE/Storage/Video, ramdomly read memory (OpROM). Options are: [UEFI], [Legacy], [Do not Launch]. Acrosser Technology Co., Ltd.

  • Page 29: Advanced Setup: Usb Configuration

    AND-DNV3Ax 3.2.8. Advanced Setup: USB Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option USB Module Version disables legacy support if no USB devices are USB Controllers: connected. DISABLE...

  • Page 30: Intelrcsetup

    [Enable] [Enable] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Acrosser Technology Co., Ltd.

  • Page 31: Intelrcsetup: South Bridge Chipset Configuration

    AND-DNV3Ax • Turbo This feature allows processor cores to run faster than marked frequency in specific conditions. • Enable or Disable Intel Virtual Machine Extensions (VMX) for IA-32 processors that ® support Intel Vanderpool Technology. 3.3.2. IntelRCSetup: South Bridge Chipset Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc.

  • Page 32: Intelrcsetup: Sata Port

    F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Enable/disable port Enables/Disables SATA Controller port if supported by current cpu SKU. Acrosser Technology Co., Ltd.

  • Page 33: Intelrcsetup: M.2 Sata Port

    AND-DNV3Ax 3.3.4. IntelRCSetup: M.2 SATA Port Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. IntelRCSetup M.2 SATA Port Enables/Disables SATA Device Information: [Not Installed] Controller port if Device Size: [Unknown] supported by current Enable/disable port [Enabled] cpu SKU.

  • Page 34: Boot Setup

    OEM logo instead of the normal POST messages. • Boot Option Priorities This feature allows the user to specify which devices are boot devices and the order of priority from which the systems boots from during startup. Acrosser Technology Co., Ltd.

  • Page 35: Save & Exit Setup

    AND-DNV3Ax 3.6. Save & Exit Setup Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Save Options Reset the system after Save Changes and Reset saving the changes. Discard Changes and Reset...

  • Page 36: Software Installation And Programming Guide

    This test utility develop is based on kernel 4.4 above (Ubuntu 18.04.1 Server 64bit) and pfsense 2.5.2 (FreeBSD Version 12.2-STABLE) 4.1.2. GPIO The AND-DNV3Ax provides GPIO interface. Users can use the GPIO APIs to control GPO Pin. 4.1.3. Watchdog The AND-DNV3Ax provides a Watchdog Timer. Users can use the Watchdog APIs to configure and to access the Watchdog timer.

  • Page 37: File Descriptions

    AND-DNV3Ax 4.2. File Descriptions 4.2.1. GPIO/Watchdog/LAN Bypass Subsystem Module 1. TestUtility.exe The GPIO,Watchdog , Lan Bypass,. Console user interface bin binary. 2. Libw83627.h This file includes the declarations of the APIs and macro definitions. 3. Libw83627.a The static library for linux.

  • Page 38: Watchdog

    16 character array. Return Value: 0: Successful, -1: fail. Syntax: int set_bypass_wdt(int pair, int time) Description: This function can set which pair bypass Wdt timer. Parameters: pair: 1-4 , time: 1-255(sec), 0:stop. Return Value: 0: Successful, -1: fail. Acrosser Technology Co., Ltd.
  • Page 39 AND-DNV3Ax Syntax: int set_bypass_wdt_action(int pair, int action) Description: This function can set which pair bypass Wdt time up action. Parameters: pair: 1-4 , action: 0:bypass, 1:normal Return Value: 0: bybpass, 1: normal, -1: fail. Syntax: int get_bypass_wdt_action(int pair) Description: This function can get which pair bypass Wdt time up action.

  • Page 40: Notes

    Parameters: None. Return Value: None. Note: If you want to control the LAN module bypass on the LAN card purchased from Accrosser, be sure to take “7” Module H as the module reference for programming. Acrosser Technology Co., Ltd.

  • Page 41: Faq

    AND-DNV3Ax Q 1. Where is the serial number located on my system ? • The serial number (S/N) is an alpha-numeric character located on the bottom or side chassis. (for reference only) Q 2. How to active the second SIM card Quectel EM06-A/EM06-E 4G ? •...

  • Page 42: Q 5. How To Switch Over Sierra Module Dual Sim Setting

    Manufacturer: Sierra Wireless, Incorporated Model: EM7455 Revision: SWI9X30C_02.08.02.00 r5428 CARMD-EV-FRMWR2 2016/01/06 20:38:53 MEID: 35399007023784 IMEI: 353990070237842 IMEI SV: 4 FSN: LF543632720310 +GCAP: +CGSM AT!ENTERCND="A710" Enable access to password-protected commands  AT!CUSTOM? Display customizations that are currently enabled  Acrosser Technology Co., Ltd.
  • Page 43 AND-DNV3Ax !CUSTOM: GPSENABLE0x01 GPSSEL0x01 SIMLPM0x01 USBSERIALENABLE0x01 SINGLEAPNSWITCH0x01 AT!CUSTOM=? !CUSTOM: "GPSENABLE" "GPSLPM" "GPIOSARENABLE" "GPSSEL" "GPSREFLOC" "IMSWITCHHIDE" "IMCONFIG" "IPV6ENABLE" "WAKEHOSTEN" "SIMHOTSWAPDIS" "CFUNPERSISTEN" "QMIDETACHEN" "UIM2ENABLE" "NETWORKNAMEFMT" "SIMLPM" "USBSERIALENABLE" "PCSCDISABLE" "DHCPRELAYENABLE" "FLOWNOTIDISABLE" "FASTENUMEN" "CSVOICEREJECT" "IPCHANNELRATEEN" "SINGLEAPNSWITCH" AT!CUSTOM="UIM2ENABLE",1 Enable USIM2 identity  AT!CUSTOM? www.acrosser.com...
  • Page 44 Request USIM setting (USIM1 or USIM2)  !UIMS: 0 USIM1 is active  AT+CIMI Request international mobile subscriber  466924000182599 AT!UIMS=1 Active USIM2  AT!UIMS? Request USIM setting (USIM1 or USIM2)  !UIMS: 1 USIM2 is active  AT+CPIN? Acrosser Technology Co., Ltd.
  • Page 45 AND-DNV3Ax +CPIN: READY AT+CIMI Request international mobile subscribe  222013068883994 www.acrosser.com...
  • Page 46 AND-DNV3Ax Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
  • Page 47 Acrosser Headquarters Acrosser Nanjing Office 欣扬通电子有限公司 南京办事处 241新北市三重區光復路一段61巷26號10樓 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., (R.O.C.) Jiang Ning Dist., Nanjing City, Jiangsu Province, TEL: +886-2-29999000 China (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
