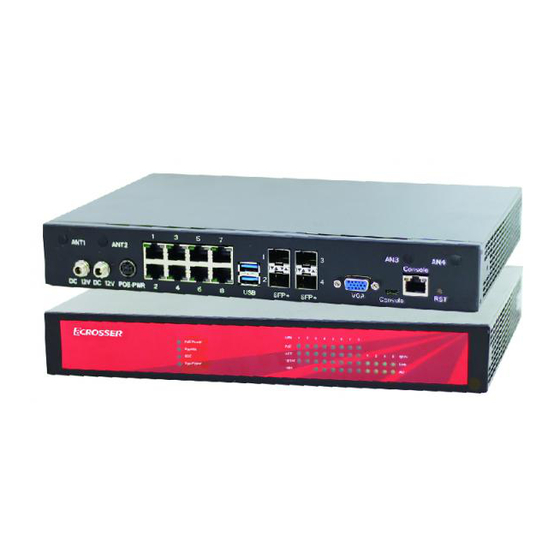

- Page 1 AND-DNV3N3 Series AND-DNV3N3 Series Networking Micro Box ® ® • Intel Denverton SoC • 8 GbE Copper (1-pair bypass) • SFP+ User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
- Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 3: Table Of Contents
Table of Contents 1. System Introduction ..............5 1.1. Specifications ......................5 1.2. Package Contents ...................... 8 1.3. AND-DNV3N3 Series Comparison Table (3 SKUs) ............ 8 1.4. System Dissection ...................... 9 1.4.1. Dimensions ..................... 9 1.4.2. Front I/O Panel ....................10 1.4.3. - Page 4 4.3. API List and Descriptions ..................36 4.3.1. GPIO ......................36 4.3.2. Watchdog ...................... 37 4.3.3. LAN Bypass Subsystem ................37 4.3.4. Notes ......................39 5. FAQ ....................40 Q 1. Where is the serial number located on my system? ..........40 Acrosser Technology Co., Ltd.
-
Page 5: System Introduction
AND-DNV3N3 Series System Introduction The AND-DNV3N3 series networking product is based on Intel's Atom C3000, powerful and scalable for vary application scenarios. The AND-DNV3N3 series provides a flexible system expansion versatility by supporting from Intel Atom C3558(4 core) to C3758(8 core) with 8x GbE copper LANs (with 1-pair bypass and optional 4x PoE port feature), 2x or 4x 10G fiber networks (SFP+). - Page 6 • Software programmable 0~255 Seconds, 0=disable timer. Battery • Lithium Battery, 3V 220mAH (CR2032), for RTC Hardware Monitoring • CPU Voltage • CPU Temperature • System Temperature • Fan Speed (C3758) Security & Mgmt. • On-board TPM 2.0 Acrosser Technology Co., Ltd.
- Page 7 AND-DNV3N3 Series Power Requirement Power Adapter • 12VDC, 60W Adapter • 54VDC, 150W Adapter (Optional) for PoE feature Software OS Support • Linux Kernel 4.4 & above, (64-bit) Mechanical & Environment Dimension • 300(L) x 201(W) x 44(H) mm Operating Temperature • 0 ~ 40°C (32 ~ 104°F) Storage Temperature •...
-
Page 8: Package Contents
Power Cord (3 for PoE option) � Screw Pack � 1.3. AND-DNV3N3 Series Comparison Table (3 SKUs) Model Name Description AND-DNV3N3-04 Intel Atom C3558 (4-core) SoC, 8 GbE Copper (1-pair bypass), 2x SFP+, 2 USB 3.1, 1x 2.5”SATAIII, 1x CFast, 2x... -
Page 9: System Dissection
AND-DNV3N3 Series 1.4. System Dissection 1.4.1. Dimensions (Unit: mm) www.acrosser.com... -
Page 10: Front I/O Panel
• Sys Power System Power LED • Storage Storage Active LED • Bypass LAN Bypass LED • PoE Power PoE Power LED • LAN 1~8 LAN 1~8 Link/Active LED • SFP+ 1~4 SFP+ 1~4 Link/Active LED Acrosser Technology Co., Ltd. -
Page 11: Rear I/O Panel
AND-DNV3N3 Series 1.4.3. Rear I/O Panel • ANT1 ~ ANT4 SMA Antenna Hole. Reserved for optional Wi-Fi / BT, 4G LTE antenna. • DC 12V DC12V Power Input • POE-PWR PoE Power Input • LAN1 ~ LAN8 RJ45 LAN Port •... -
Page 12: Components Assembly
Please follow the instruction to install the inner modules. 2.1. HDD/SSD Installation Step 1: Plug the SATA cable (both the signal and power) in the socket on PCB. Step 2: Connect the SATA cable with the HDD/SSD. Acrosser Technology Co., Ltd. - Page 13 AND-DNV3N3 Series Step 3: Fasten the HDD/SSD with 4 screws onto the inner side of the chassis top cover. Step 4: Before closing the top cover, pay attation to arrange the cable wire among the PCB components spaces. www.acrosser.com...
-
Page 14: Pcb Parts Description
There are four modular sockets/slots reserved to install your modules: CFast, Mini- PCIe, DDR, and M.2. Step 1: To install the M.2, you will have to remove the fixing screw first, and then have it fastened after inserting the module. Acrosser Technology Co., Ltd. -
Page 15: Adapter Installation Description
AND-DNV3N3 Series 2.3. Adapter Installation Description To install the power adapter: Step 1: Use a Phillips screwdrive to affix the ear bracket to both sides of the chassis each wiith 3 screws. Step 2: Put the power adapter on the holding plate, pass its DC-out cable through the hole on the ear bracket, and plug it in the DC 12V jack of the front chassis. - Page 16 Pass its cable through the hole on the ear bracket, and plug it in the POE PWR jack of the front chassis. Step 2: Arrange the remaining cord. Step 3: Fasten the adapter with cable ties to the holding plate. Acrosser Technology Co., Ltd.
-
Page 17: Bios Settings
AND-DNV3N3 Series BIOS Settings This chapter describes the BIOS menu displays and explains how to perform common tasks needed to get the system up and running. It also gives detailed explanation of the elements found in each of the BIOS menus. The following topics are covered: •... - Page 18 System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/ YYYY format. The time is entered in HH:MM:SS format. Acrosser Technology Co., Ltd.
-
Page 19: Advanced Setup
AND-DNV3N3 Series 3.2. Advanced Setup Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Trusted Computing Trusted Computing OnBoard Bypass Controller Settings W83627DHG Super IO Configuration W83627DHG HW Monitor Serial Port Console Redirection... -
Page 20: Advanced Setup: Onboard Bypass Controller
Pair0 WDT Timeout [Bypass] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Acrosser Technology Co., Ltd. -
Page 21: Advanced Setup: W83627Dhg Super Io Configuration
AND-DNV3N3 Series • Pair0 System On Each Pair Lan[a] and Lan[b] Bypass State Setting, System On /System off /WDT timeout State. [Normal] Lan[a] and Lan[b] work on normal mode. [Bypass] Lan[a] data will bypass to Lan[b]. 3.2.3. Advanced Setup: W83627DHG Super IO Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. - Page 22 Select Enabled to enable the onboard serial port. • Change Settings This option specifies the base I/O port address and the interrupt Request address of Serial Port. Select [Auto] to let the BIOS automatically assign the base l/O and IRQ address. Acrosser Technology Co., Ltd.
-
Page 23: Advanced Setup: W83627Dhg Hw Monitor
AND-DNV3N3 Series 3.2.4. Advanced Setup: W83627DHG HW Monitor Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced Pc Health Status Enable or Disable Smart Smart Fan Function [Enabled] Smart Fan Mode Configuration System temperature1 System temperature2 CPU temperature... -
Page 24: Advanced Setup: Serial Port Console Redirection
Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Acrosser Technology Co., Ltd. - Page 25 AND-DNV3N3 Series Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced COM0 Emulation: ANSI: Console Redirection Settings Extended ASCII char set. VT100: ASCII char Terminal Type [VT100+] set. VT100+: Extends Bits per second [115200] VT100 to support color, Data Bits function keys, etc.
-
Page 26: Advanced Setup: Network Stack Configuration
Ipv6 PXE Support Enable or disable the Ipv6 PXE support. • Ipv6 HTTP Support Enable or disable the Ipv6 HTTP support. • PXE boot wait time Click ESC key to cancel the PXE boot wait time. Acrosser Technology Co., Ltd. -
Page 27: Advanced Setup: Csm Configuration
AND-DNV3N3 Series • Media detect count Set up the media detecting wait time by seconds. 3.2.7. Advanced Setup: CSM Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Advanced Compatibility Support Module Configuration Enable/Disable CSM Support. CSM Support... -
Page 28: Advanced Setup: Usb Configuration
Select Enabled for USB Mass Storage Driver support. • Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. Acrosser Technology Co., Ltd. -
Page 29: Intelrcsetup
AND-DNV3N3 Series 3.3. IntelRCSetup Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Processor Configuration Displays and provides South Bridge Chipset Configuration option to change the Processor settings →←: Select Screen ↑↓: Select Item... -
Page 30: Intelrcsetup: South Bridge Chipset Configuration
↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. • SATA Configuration Configuration of SATA Controller. Acrosser Technology Co., Ltd. -
Page 31: Intelrcsetup: Sata Port
AND-DNV3N3 Series Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. IntelRCSetup SATA Port Configuration of SATA CFast Port Controller port →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &... -
Page 32: Intelrcsetup: Cfast Port
→←: Select Screen ↑↓: Select Item Administrator Password Enter: Select User Passwordword +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc. Acrosser Technology Co., Ltd. -
Page 33: Boot Setup
AND-DNV3N3 Series • Setup Administrator Password Press Enter to create a new, or change an existing Administrator password. • User Password Press Enter to create a new, or change an existing User password. 3.5. Boot Setup Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. -
Page 34: Save & Exit Setup
• Boot Override This feature allows the user to override the Boot Option Priorities sequence in the Boot menu and immediately boot the system with another device specified by the user. This is a onetime override. Acrosser Technology Co., Ltd. -
Page 35: Software Installation And Programming Guide
This test utility develop is based on kernel 4.8 above (Ubuntu 18.04.1 Desktop 64bit). 4.1.2. GPIO The AND-DNV3N3 series provides GPIO interface. Users can use the GPIO APIs to control GPO Pin. 4.1.3. Watchdog The AND-DNV3N3 series provides a Watchdog Timer. Users can use the Watchdog APIs to configure and to access the Watchdog timer. -
Page 36: File Descriptions
Get the status of GPIO output pins status. Parameters: This function fills in an integer variable as the parameter. The pin0 ~ pin1 is the status of the output pins. Return Value: 1: HIGH, 0: LOW. Acrosser Technology Co., Ltd. -
Page 37: Watchdog
AND-DNV3N3 Series Syntax: Set_gpo(int pin, int value) Description: Set the status of GPIO output value. Parameters: Set value 0 is Low, 1 is High Return Value: If the function sets the values successfully, it returns 0 or -1, any other returned value stands for error. - Page 38 1-4, action: 0: bypass, 1: normal. Return Value: 0: Successful, -1: fail. Syntax: int get_bypass_poweroff_action(int pair) Description: This function can get which pair bypass power off action. Parameters: pair: 1-4. Return Value: 0: bybpass, 1: normal, -1: fail. Acrosser Technology Co., Ltd.
-
Page 39: Notes
AND-DNV3N3 Series Syntax: int set_bypass_current_action(int pair, int action) Description: This function can set which pair bypass current action. Parameters: pair: 1-4, action: 0: bypass, 1: normal. Return Value: 0: bybpass, -1: fail. Syntax: int get_bypass_current_action(int pair) Description: This function can get which pair bypass current action. -
Page 40: Faq
AND-DNV3N3 Series Q 1. Where is the serial number located on my system? • The serial number (S/N) is an alpha-numeric character located on the bottom or side chassis. (for reference only) Acrosser Technology Co., Ltd. - Page 41 AND-DNV3N3 Series Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
