Summary of Contents for X-Tronic 9070-XR3
-
Page 3: Table Of Contents

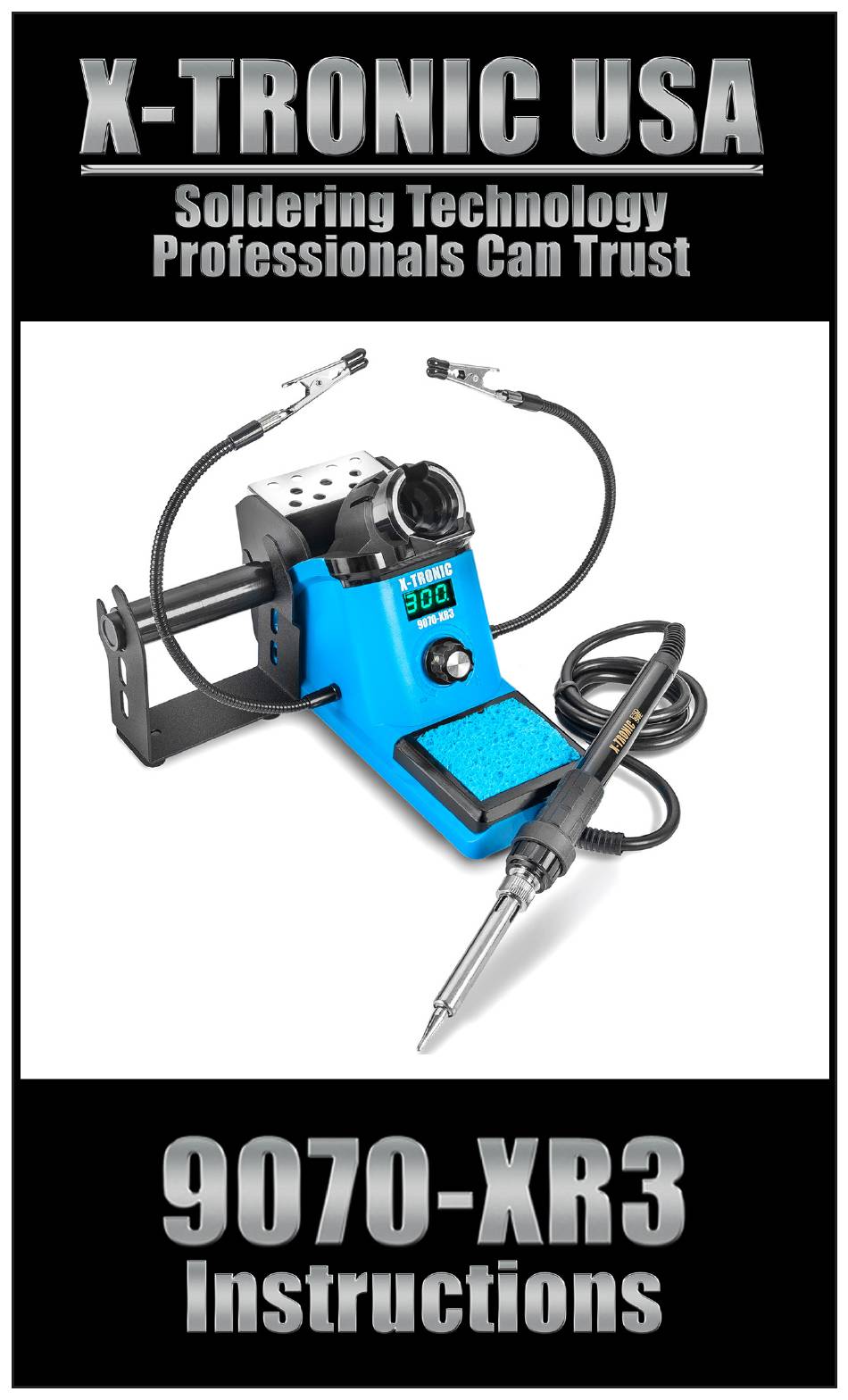

PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW X-TRONIC MODEL #9070-XR3 SOLDERING STATION TABLE OF CONTENTS Product Specifications............3 Package Contents .............3 Safety Precautions ............4 Unit Diagram ..............5 Initial Set-up ...............5 Operating Instructions ............6 Features................6 Celsius / Fahrenheit Conversion ........6 Sleep Function ..............6 Calibration Function ............7... - Page 4 - 2 -...
-
Page 5: Product Specifications
PRODUCT SPECIFICATIONS Model XTR-9070-XR3 Dimensions 7.0 x 5.75 x 5.0 in Weight 1.5 lbs Working Environment 32°F ~ 104°F / 0°C ~ 40°C Storing Environment -4°F ~ 176°F / -20°C ~ 80°C Storage Humidity 35% - 45% Temperature Range 194°F ~ 896°F / 90°C ~ 480°C Temperature Stability ±... -
Page 6: Safety Precautions
SAFETY PRECAUTIONS 1. Always use a grounded outlet for the unit. 2. Always turn the power off and unplug the unit when not in use. 3. Never use the soldering iron near any flammable substance, material, or gas. 4. Never touch the metallic components of the soldering iron while the unit is on. -
Page 7: Unit Diagram
INITIAL SET - UP 1. Open the package and check that all parts are present and are not damaged. If anything is missing or damaged, please contact X-Tronic immediately for assistance (see back cover for contact information). 2. Remove everything from the packaging. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 1. Place the soldering iron in the holder. 2. Turn the unit on with the power switch on the back of the unit. 3. Set the desired temperature using the thermostat knob on the front of the unit. The desired temperature will flash on the display indicating it is being set. -
Page 9: Calibration Function
CALIBRATION FUNCTION When is it time to Calibrate your Soldering Station? All X-Tronic Soldering Stations come with a high quality ceramic heating element in the soldering iron that is calibrated to within ±1.8°F/1.0°C of the temperature that is shown on the LED Display. - Page 10 Calibration Instructions Once the desired temperature has been set and the temperature of the unit stabilizes, measure the heat at the soldering tip using a high quality and well calibrated soldering tip tester. If the temperature shown on the unit’s display does not reflect the temperature shown on the tester.
-
Page 11: Maintenance
MAINTENANCE SOLDERING TIP CARE 1. For first use, allow the tip to rise to a stable temperature. Clean the tip on the damp sponge and tin the tip (apply a small amount of fresh solder to the tip). 2. The soldering iron should be run in the 330°C ~ 360°C range for regular use, which is the normal temperature range for most soldering applications. -
Page 12: Replacing The Heating Element
4. Slide the metallic tube off of the soldering iron and tip. 5. Slide the tip off of the heating element. 6. Repeat in the reverse order for installation. Do not over-tighten the nut on the soldering iron. REPLACING THE HEATING ELEMENT 1. -
Page 13: Troubleshooting
TROUBLESHOOTING ISSUE POSSIBLE SOLUTIONS Unit does not • Ensure the power cord is securely attached to the have power outlet and that the unit is powered on at the back of the unit. • Ensure that the outlet is functional. S-E Error •... -
Page 14: Warranty
(b) any product shipped outside of the United States, the District of Columbia or Canada, or (c) anyone who may have purchased it from someone other than X-Tronic International Inc.. Proof of purchase is required for in- warranty service. We recommend you promptly register this product on our website (www.XTronicUSA.com) to facilitate verification of the date of the original... - Page 15 WHAT DOES THIS WARRANTY NOT COVER? This limited warranty during the Warranty Period does not cover any damage due to: (a) improper use; (b) failure to follow the product instructions or to perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear that comes with household use;...
-
Page 16: Contact Information
Compliments please call or email us. Toll Free: 844-861-4762 Info@XTronicUSA.com Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...
