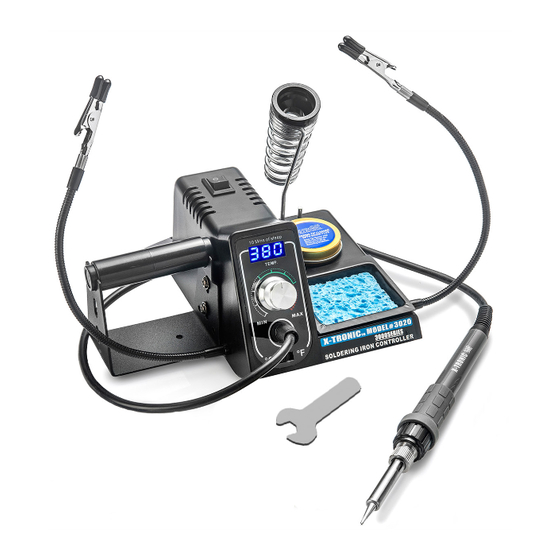

USING YOUR NEW X-TRONIC Model #3020-XTS SOLDERING STATION This manual is provided to make a safe and effective use of the X-Tronic 3020-XTS soldering station and to maintain this instrument in proper working condition. Be sure to keep this manual in a handy place near the unit for future reference. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS 1. When not in use always turn the power off and unplug the unit from the electrical outlet. 2. Never use the soldering iron near any flammable substance, material, or gas. 3. Never touch the metallic components of the soldering iron while they are in use. - Page 5 1. Open the package and check that all parts are present and are not damaged. If anything is missing or damaged, please contact X-Tronic immediately for assistance (see back cover for contact information). 2. Attach the solder roll holder to the left side of the unit with the screws provided.
-
Page 6: Function Operation
FUNCTION OPERATION TEMPERATURE CONVERSION This unit can readout temperatures in either Fahrenheit or Celsius. To change from one to the other, simply toggle the switch on the front of the unit to either °F or °C. SLEEP FUNCTION When the soldering iron is placed in the holder, the iron will go into sleep mode after 10 minutes. -
Page 7: Maintenance
SOLDERING TIP PREPARATION • Keep the soldering tip properly tinned. Always use solder with sufficient rosin flux or the tip will de-wet. A well tinned tip will be bright all over when hot, with no dull or discolored spots. • To tin the soldering iron tip: 1. - Page 8 WARNING DISCONNECT POWER CORD BEFORE REPLACING A SOLDERING TIP AND/OR A HEATING ELEMENT REPLACING THE SOLDERING TIP 1. Turn off the soldering station, unplug the power cord from the power source and allow the soldering iron to cool down to room temperature.
- Page 9 REPLACING THE SOLDERING IRON HEATING ELEMENT Bakelite Screw Cap Spring Soldering Tip Cord Collar Metal Tip Ergonomic Retaining Grip Handle Screw Cap Heating Element 1. Turn off the unit and unplug it from the outlet. Allow the soldering iron to cool down to room temperature. Never attempt to handle the tip while the iron is hot.
-
Page 10: Warranty
(b) any product shipped outside of the United States, the District of Columbia or Canada, or (c) anyone who may have purchased it from someone other than X-Tronic International Inc.. Proof of purchase is required for in- warranty service. We recommend you promptly register this product on our website (www.XTronicUSA.com) to facilitate verification of the date of the original... - Page 11 WHAT DOES THIS WARRANTY NOT COVER? This limited warranty during the Warranty Period does not cover any damage due to: (a) improper use; (b) failure to follow the product instructions or to perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear that comes with household use;...
- Page 12 Compliments please call or email us. Toll Free: 844-861-4762 Info@XTronicUSA.com Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...
