Summary of Contents for X-Tronic 3050-PRO-X
-
Page 3: Product Specifications

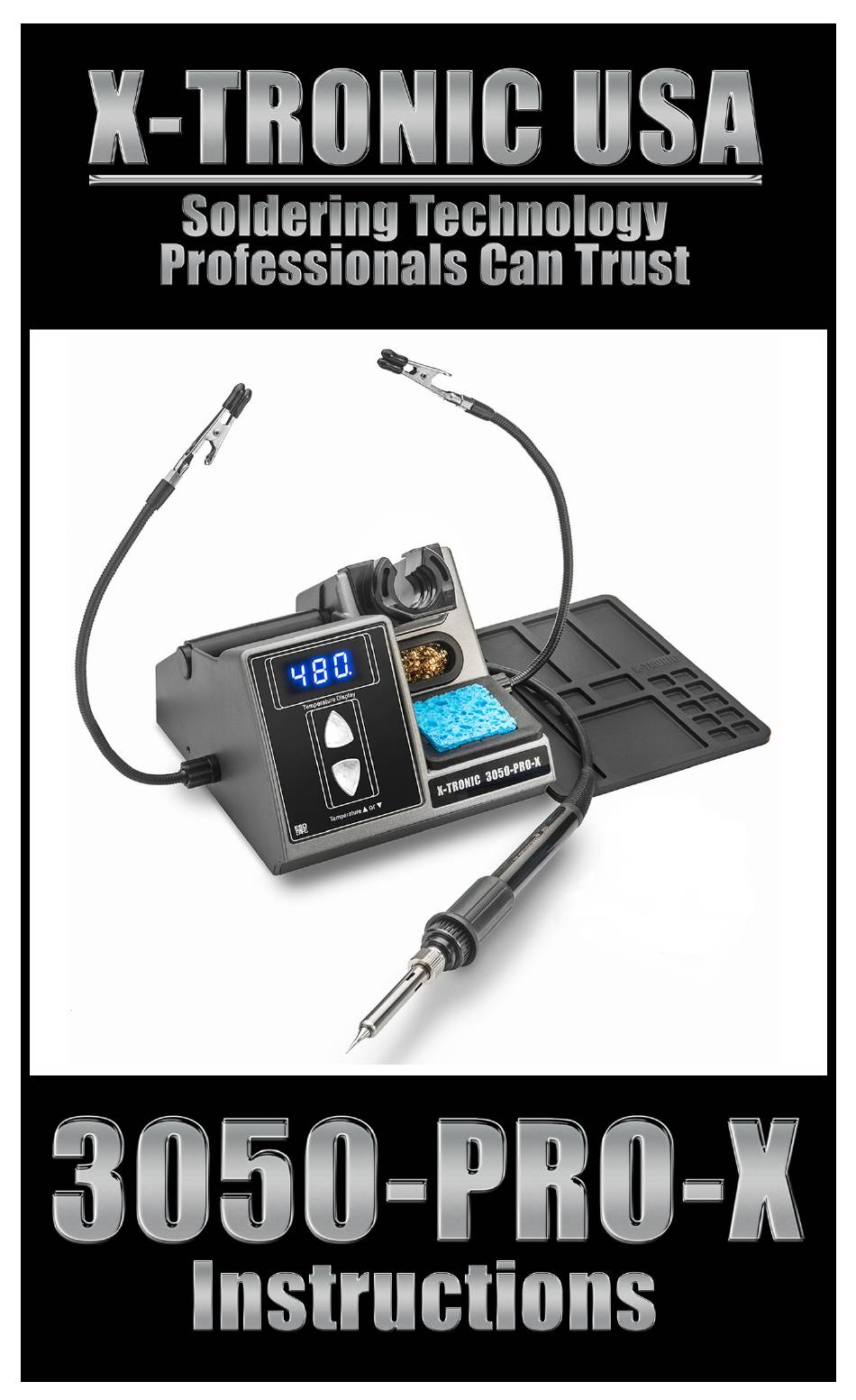

USING YOUR NEW X-TRONIC Model #3050-PRO-X SOLDERING STATION This manual is provided to make a safe and effective use of the X-Tronic 3050-PRO-X soldering station and to maintain this instrument in proper working condition. Be sure to keep this manual in a handy place near the unit for future reference. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS 1. When not in use always turn the power off and unplug the unit from the electrical outlet. 2. Never use the soldering iron near any flammable substance, material, or gas. 3. Never touch the metallic components of the soldering iron while they are in use. - Page 5 1. Open the package and check that all parts are present and are not damaged. If anything is missing or damaged, please contact X-Tronic immediately for assistance (see back cover for contact information). 2. Place the soldering iron in the soldering iron holder on the unit.
-
Page 6: Function Operation
FUNCTION OPERATION TEMPERATURE CONVERSION This unit can readout temperatures in either Fahrenheit or Celsius. To change from one to the other, when the unit is powered off, simply press the ▲ button and turn the unit on. The screen will show either C - C or F - F to indicate the unit of measurement being shown. - Page 7 ISSUE POSSIBLE SOLUTIONS S-E Error • The unit is no longer sensing the element - the heating element may be cracked or worn out and needs to be replaced. Replacements can be purchased on our website: www.XTronicUSA.com. Tip is not •...
-
Page 8: Maintenance
MAINTENANCE UNIT 1. Keep the unit plugged into a GROUNDED outlet at all times during operation. 2. Keep the unit and all components free from dirt, debris, and liquid at all times. 3. Make sure the power cord is plugged in correctly and safely off the floor to prevent accidents. - Page 9 REPLACING THE SOLDERING IRON HEATING ELEMENT Bakelite Screw Cap Spring Soldering Tip Cord Collar Metal Tip Ergonomic Retaining Grip Handle Screw Cap Heating Element 1. Turn off the unit and unplug it from the outlet. Allow the soldering iron to cool down to room temperature. Never attempt to handle the tip while the iron is hot.
-
Page 10: Warranty
(b) any product shipped outside of the United States, the District of Columbia or Canada, or (c) anyone who may have purchased it from someone other than X-Tronic International Inc.. Proof of purchase is required for in- warranty service. We recommend you promptly register this product on our website (www.XTronicUSA.com) to facilitate verification of the date of the original... - Page 11 WHAT DOES THIS WARRANTY NOT COVER? This limited warranty during the Warranty Period does not cover any damage due to: (a) improper use; (b) failure to follow the product instructions or to perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear that comes with household use;...
- Page 12 Compliments please call or email us. Toll Free: 844-861-4762 Info@XTronicUSA.com Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...
