- Page 1 User Manual v1.0 2023.07...
- Page 2 Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Printing this Document This document supports high resolution printing. © 2023 DJI All Rights Reserved.
-
Page 3: Using This Manual Legend
DJI RC 2 User Manual Using this manual Legend Important Hints and Tips Reference Read Before the First Flight provides users with tutorial video and the following documents. 1. Product Information 2. User Manual It is recommended to watch the tutorial video and read the product information before using for the first time. -
Page 4: Table Of Contents
Contents Using this manual Legend Read Before the First Flight Video Tutorials Product Profile Introduction Overview Preparing the Remote Controller Watching the Tutorial Video Charging the Battery Mounting Activating the Remote Controller Remote Controller Operations Checking the Battery Level Powering On/Off Linking the Remote Controller Controlling the Aircraft Flight Mode Switch... - Page 5 Firmware Update Using DJI Fly Using DJI Assistant 2 (Consumer Drones Series) Appendix Specifications Aftersales Information...
-
Page 6: Product Profile
[2] Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information. [3] Tested in a 25° C (77° F) laboratory environment with DJI RC 2 connected to DJI Air 3 in normal flight status and recording 1080p/60fps video. -
Page 7: Overview

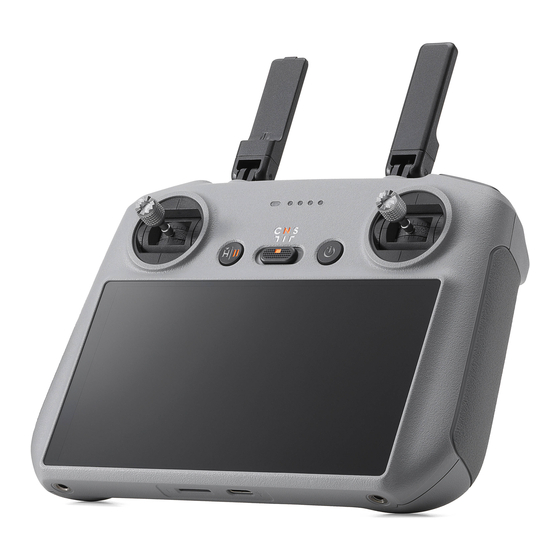

The control sticks are removable and easy to store. 8. Touchscreen Set the flight control mode in DJI Fly. Touch the screen to operate the remote 2. Antennas controller. Note that the touchscreen is not waterproof. - Page 8 For storing the control sticks. the aircraft, users can view and set 17. Customizable C2 Button the function for the button in DJI Fly After linking the remote controller with by entering Camera View > Settings > the aircraft, users can view and set Control >...
-
Page 9: Preparing The Remote Controller
DJI RC 2 User Manual Preparing the Remote Controller Watching the Tutorial Video Go to the address below or scan the QR code to watch the tutorial video before using for the first time. https://s.dji.com/guide62 Charging the Battery Connect a charger to the USB-C port on the remote controller. It takes approximately 1 hour and 30 minutes to fully charge the remote controller (with a 9V/3A USB charger). -
Page 10: Activating The Remote Controller
2. Connect the remote controller to the internet via Wi-Fi. After connecting, tap Next to continue and select the time zone, date, and time. 3. Log in with your DJI account. If you do not have an account, create a DJI account and log in. 4. Tap Activate on the activation page. -
Page 11: Remote Controller Operations
DJI RC 2 User Manual Remote Controller Operations Checking the Battery Level Press the power button once to check the current battery level. Battery High Powering On/Off Press and then press again and hold to power the remote controller on or off. -
Page 12: Controlling The Aircraft
DJI RC 2 User Manual Controlling the Aircraft Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be configured in the DJI Fly app. Mode 1 Left Stick Right Stick Forward Down Backward... - Page 13 DJI RC 2 User Manual Remote Controller Aircraft Remarks (Mode 2) Throttle Stick: moving the left stick up or down changes the altitude of the aircraft. • Push the stick up to ascend and push down to descend. • The aircraft hovers in place if the stick is in the center.
-
Page 14: Flight Mode Switch
Otherwise, the remote controller will experience interference. • A prompt will be displayed in DJI Fly if the transmission signal is weak during flight. Adjust the antennas to make sure that the aircraft is in the optimal transmission range. -
Page 15: Controlling The Gimbal And Camera
Gimbal Dial Camera Control Dial Record Button Focus/Shutter Button Customizable Buttons Go to Settings in DJI Fly and select Control to set the functions of the customizable C1 and C2 buttons. Customizable Button C2 Customizable Button C1 © 2023 DJI All Rights Reserved. ... -
Page 16: Remote Controller Leds
The remote controller beeps when there is an error or warning. Pay attention when prompts appear on the touchscreen or in DJI Fly. Slide down from the top of the screen and select Mute to disable all alerts, or slide the volume bar to 0 to disable some alerts. -
Page 17: Touchscreen Home
Enter SkyPixel to view videos and photos shared by other users. Profile View account information and flight records, visit the DJI forum and online store, access the Find My Drone feature, offline maps, and other settings such as firmware updates, camera view, cached data, account privacy, and language. -
Page 18: Operations
Operations Slide from the left or right to Slide up from the bottom of the center of the screen to the screen to return to DJI Fly. return to the previous screen. ×2 Slide down from the top of the... -
Page 19: Quick Settings
DJI RC 2 User Manual Quick Settings 1. Notifications Tap to check system notifications. 2. System Settings Tap to access system settings and configure settings such as Bluetooth, volume, and network. Users can also view the Guide to learn more about the controls and status LEDs. -
Page 20: Calibrating The Compass
• After powering on the remote controller and connecting it to the internet, users can enter the home screen of DJI Fly, tap Profile > Settings > Firmware Update > Check for Firmware Updates to check whether a new firmware is available. -
Page 21: Appendix
DJI RC 2 User Manual Appendix Specifications Video Transmission Antennas 4 antennas, 2T4R Video Transmission 2.4000-2.4835 GHz, 5.170-5.250 GHz , 5.725-5.850 GHz Operating Frequency Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) -
Page 22: Aftersales Information
[1] Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information. [2] Tested in a 25° C (77° F) laboratory environment with DJI RC 2 connected to DJI Air 3 in normal flight status and recording 1080p/60fps video. - Page 23 Contact DJI SUPPORT This content is subject to change. https://www.dji.com/rc-2/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2023 DJI All Rights Reserved.
