Summary of Contents for NetComm N3GS003

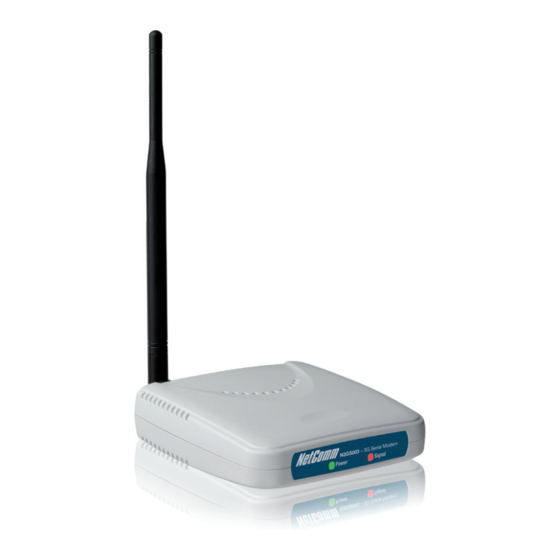

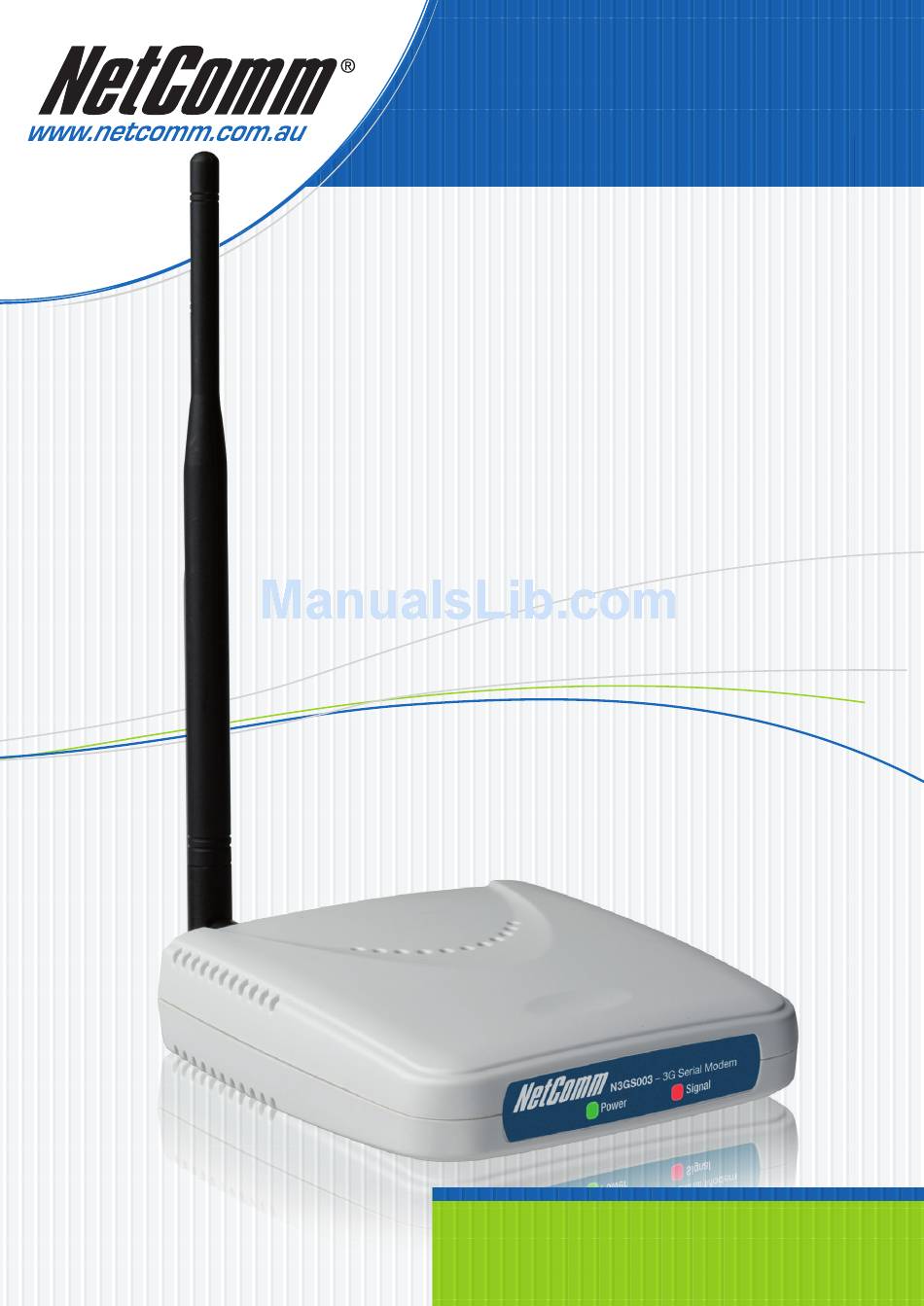

- Page 1 User Guide N3GS003 3G Serial Modem...
-
Page 2: Table Of Contents
1.1 Features ...3 1.2 Package Contents ...3 1.3 Inserting the SIM card ...4 1.4 Connecting the cables ...4 1.5 Getting to know your N3GS003 - LED Indicators ...5 2. Driver installation ...6 2.1 Windows Vista ...6 2.2 Driver removal process ...10 3. -
Page 3: Chapter 1 Introduction
CHAPteR 1 INtRoDUCtIoN Thank you for purchasing the NetComm N3GS003 3G Serial modem. This User Guide will help you with the configuration and set-up of your Modem and includes information that will allow you to get a better understand the advanced features and operation of your new investment. -
Page 4: Inserting The Sim Card
(no pins showing) of the same cable into the COM port at the back of your computer. • Plug the power cable pin into the POWER socket at the back of your Modem and plug the power supply into a suitable power point. N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au... -
Page 5: Getting To Know Your N3Gs003 - Led Indicators
1.5 Getting to know your N3GS003 - LeD indicators Function Color Power Green Signal Slow Blink Flashing Blink Solid Red YML886 draft 0.2 www.netcomm.com.au Definition Power is Off Power is on and the device operates normally. Unit is searching for a carrier. -
Page 6: Chapter 2 Driver Installation
Open Control panel window using the Start Menu. On the Control Panel window, click on the Phone and Modem Options to open the Phone and Modem window. On The Phone and Modem Options window, click on the Modem tab. N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au... - Page 7 Click on the Add Button Tick on “Don’t detect my modem, I will select it from a list” and click on Next Click on Have Disk to select the driver YML886 draft 0.2 www.netcomm.com.au N3GS003 3G Serial Modem N3GS003 3G Serial Modem...
- Page 8 Click Browse to select the location of the drivers file. Navigate to the folder that contain the driver files for your Operating System and click on OK Click on OK again Choose “Sierra Wireless AirCard HSDPA Modem” and click on Next N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au...
- Page 9 Choose the correct COM port and click on Next Click Finish to finish the installation Note: This example shows Windows Vista installation, other Windows OS will have a very similar set up process. YML886 draft 0.2 www.netcomm.com.au N3GS003 3G Serial Modem N3GS003 3G Serial Modem...
-
Page 10: Driver Removal Process
Click on Modems tab Click on “Sierra Wireless AirCard HSDPA Modem” and click on Remove Click OK Note: This example shows Windows Vista un-installation, other Windows OS will have a very similar set up process. N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au... -
Page 11: Chapter 3 Creating A Dial Up Connection
Type in the ISP Dial-Up phone number, the User name and Password. And then click on Connect. Note: This information should be given to you by your Internet Service Provider. YML886 draft 0.2 www.netcomm.com.au N3GS003 3G Serial Modem N3GS003 3G Serial Modem... - Page 12 The computer will try to connect to the internet. Please wait or click on Skip to not connect to the internet now. If you press Skip on the previous window, click on Set up the connection anyway to save the settings. Click Close to finish the set up. N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au...
-
Page 13: Chapter 4 How To Dial The Connection
Open Network and Sharing center from Control Panel window. Click on the Manage network connections on the left menu Double click on the Dial up Connection and click on Dial. YML886 draft 0.2 www.netcomm.com.au N3GS003 3G Serial Modem N3GS003 3G Serial Modem... -
Page 14: Chapter 5 Modem Basics
If the PIN security is enabled in your SIM card, you need to enter the PIN code before you can use it. To enter the PIN code, use the AT+CPIN= command. For example: if your PIN code is 9424, type in “AT+CPIN=9424”. N3GS003 3G Serial Modem YML886 draft 0.2 www.netcomm.com.au... -
Page 15: Standard Modem Commands (V.250)
Status Register Set/Query. Refer to Status Register section for more information. S<n>? t (ignored) Tone dialing v<n> Verbose result code format X<n> Connection code format and call monitoring Reset modem to user defined profile YML886 draft 0.2 www.netcomm.com.au N3GS003 3G Serial Modem N3GS003 3G Serial Modem... -
Page 16: Status Register
The modem returns result codes when AT commands are entered. The following table lists the standard result codes. Code verbose CONNECT RING NO CARRIER ERROR NO DIAL TONE BUSY NO ANSWER N3GS003 3G Serial Modem Range 0-255 0-127 0-127 0-127 0-255 1-255 0-255 1-255 Meaning... -
Page 17: Jumper
5.5 Jumper The N3GS003 modem has internal jumpers to control the behavior of the modem in relation with DTR/ DSR/DCD signals from the computer. For most application, these jumpers can be leave as default. These jumpers control some of the RS232 serial port signals, and have the following functions: Jumper 1: •... -
Page 18: Appendix A - Legal And Regualtory Information
The power supply that is provided with this unit is only intended for use with this product. Do not use this power supply with any other product or do not use any other power supply that is not approved for use with this product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury. -
Page 19: Limitations Of Warranty
The cost of transporting product to and from NetComm’s nominated premises is your responsibility; and, NetComm does not have any liability or responsibility under this warranty where any cost, loss, injury or damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events beyond NetComm’s reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes, acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of materials or labour. -
Page 20: Contact Information
Note: NetComm Technical Support for this product only covers the basic installation and features. For further information regarding the advanced features of this product, please refer to the configuring sections in this User Guide or contact a Network Specialist.
