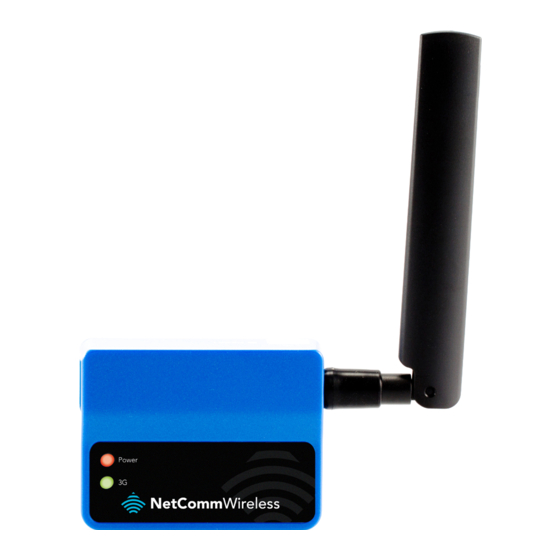

- Page 1 Quick Start Guide M2M Serial Modem NTC-3000 Series...
-
Page 2: Installation
Quick start guide This quick start guide is designed to get you up and running quickly with your new NTC-3000 Series router. More advanced set up instructions can be found in the user guide which can be downloaded from www.netcommwireless.com/product/m2m/ntc-3000. - Page 3 Insert the SIM card holder with the SIM conductor pins facing down into the NTC-3000. Connect a compatible 3G antenna to the SMA connector on the NTC-3000. 3G Antennas can be purchased as an accessory from the NetComm website at www.netcommwireless.com...
-
Page 4: Connecting The Data/Power Cable
Connecting the data/power cable The NTC-3000 may be connected and powered by one of two methods: Powering the NTC-3000 via 5V Mini USB socket Connect a standard USB Type A to USB Mini Type B cable (not included) between the NTC-3000 and your device (e.g. - Page 5 NTC-3000 Series - M2M Serial Modem Powering the NTC-3000 via Serial-to-RJ45 cable The included Serial-to-RJ45 cable features a breakout cable providing a DC Jack. Connect the Serial plug to a Serial port on your device (e.g. computer) and then connect a 5-36V power source (not included) to the DJ Jack to power the unit.
-
Page 6: Mounting Options
Mounting options The NTC-3000 series modem can be mounted on the wall or a DIN rail by using the mounting bracket. The mounting bracket is made from polyamide, a flexible material. DIN rail mounting The NTC-3000 Series mounting bracket has been designed to fit a TS 35 Type-O DIN rail with a 25mm core. -
Page 7: Connecting Via Serial Port
NTC-3000 Series - M2M Serial Modem Connecting via Serial Port For example, to connect a terminal emulator, open a HyperTerminal and create a new connection to the COM port of your serial port, with the bitrate set to 115200. In the HyperTerminal type “AT” (no quotations) and press enter. If the NTC-3000 is connected the reply will be “Ok”. -
Page 8: Connecting Via Usb
Connecting via USB The NTC-3000 features a USB port which can optionally be used for serial connectivity, terminal emulation or for establishing a high speed PPP internet connection. The USB port will enumerate a number of endpoints after the USB port driver is installed. Installing the NTC-3000 USB drivers For USB port communication, you must install a driver compatible with the embedded Sierra Wireless AirPrime cellular module. - Page 9 NTC-3000 Series - M2M Serial Modem If there are any error signs, denoted by a yellow question mark or a red apostrophe, next to the new listed items please reboot your computer. If rebooting the computer does not resolve the issue please try re-installing the drivers using the Sierra Wireless Aircard Watcher.
-
Page 10: Led Indicators
LED Indicators The NTC-3000 Series uses two LEDs to display the current system and connection status. LED Indicator Colour Definition Power The power is off The power is on and the NTC-3000 is operating normally The NTC-3000 is not attached to a mobile... -
Page 11: Mini Usb Connector
Signal RJ-45 to DB-9 Serial/Power Adapter Cable The NTC-3000 Series uses a RJ-45 to DB-9 serial cable to facilitate communications to an attached device. Pins 1 and 4 are used to supply power to the NTC-3000 Series. Signals RJ45 DC Power... -
Page 12: Product Warranty
For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website. http://support.netcommwireless.com/ NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia...
