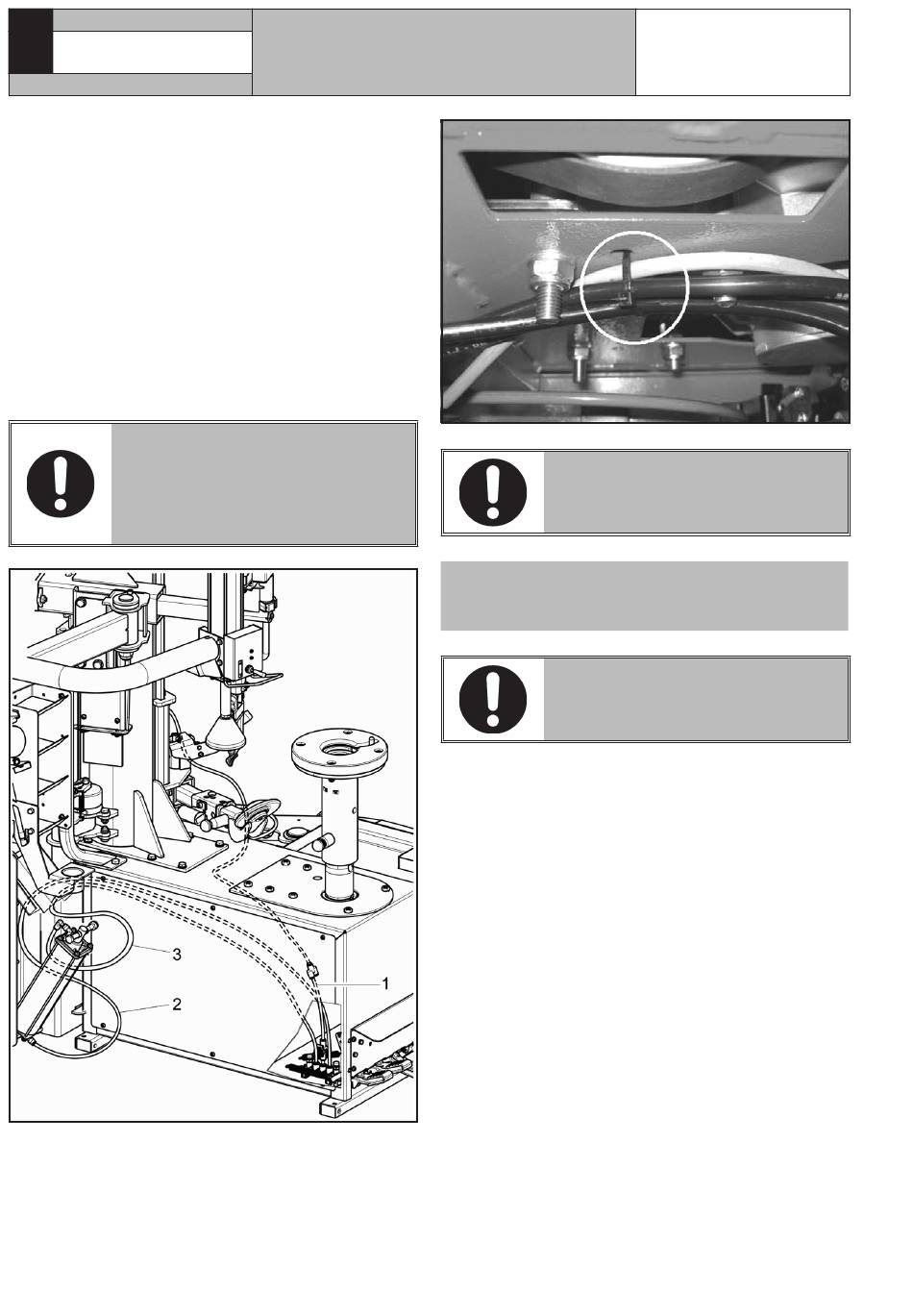

7 - Fix the three pneumatic pipes (Fig._15 ref._1-2-3)
coming from the pedalboard of the lifting device to
the lifting cylinder and to the machine as indicated
in Fig. 15.
- Pipe coming from the filter unit - pressure re-
ducer (# 317007) (L=100 mm) (Fig._15 ref._1).
- Pipe coming from the lifting device's cylinder (#
317022) (Fig._15 ref._2) (L= 1000 mm) (low
union).
- Pipe coming from lifting device's cylinder (#
317022) (Fig._15 ref._3) (L= 1200 mm) (high
union).
Reassemble the guard demounted before (see
Fig._14 ref._4).
BEFORE CONNECTING THE PIPES
(FIG. 15 REF. 2-3), MAKE SURE
THEY PASS THROUGH THE RUB-
BER FAIRLEAD PLACED ON THE
MACHINE BASE AND THE LIFTING
DEVICE FRAME.
INSTRUCTIONS FOR
ASSEMBLY AND USE
Fig. 16
ONCE THE ASSEMBLY OPERATIONS HAVE
Fig. 15
BEEN ENDED, CHECK ALL MACHINE FUNC-
TIONS.

10.0 CONTROLS

The lifting device is activated through a 'held action'
pedal, fixed through an appropriate frame to the tyre-
changer, on which the device is assembled.
Pulling the pedal downwards the lifting device starts its
rise while, on the contrary, pulling the pedal upwards
the lifting device starts descending.
Releasing the pedal at any time will provoke the lift-
ing devices stop in the position in which it finds itself.
FASTEN THE PIPES AS SHOWN
IN FIG. 16, IN ORDER TO AVOID
THAT THEY INTERFERE WITH
THE BELT.
IF IN DOUBT DO NOT USE THE
MACHINE AND REFER TO PRO-
FESSIONALLY QUALIFIED PER-
SONNEL (OR TO THE SELLER).
