Assembly And Preparation; For Use; Fixtures Contained In The Packing; Assembly Procedures On The Tyre-Changer - Ravaglioli G1000A99NP Instruction Manual

7105-M007-0
GB
Page 9 of 19
G1000A99NP - G800A121NP
9.0 ASSEMBLY AND PREPARATION FOR
USE
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1

Fixtures contained in the packing

The packing case contains also the fixtures box. Check
that all the parts listed are there.
Only for G1000A99NP model
Code
M8 flange nut
228501
710592000 Lifting device pedalboard unit
TBEI M8x16 screw
B1367300
710591930 Lifting device assembly unit
TE M8x25 screw
272038
M8 flange nut
228506
Black Elastolan pipe 8x6
317022
L=1600
Black Elastolan pipe 8x6
317022
L=1200
Black Elastolan pipe 8x6
317022
L=1000
Only for G800A121NP model
Code
730094930 Lifting device pedal unit
730024310 Pin
Retainer ring D.9
299052
Lateral lifting device assembly
730094750
unit
TE M10x30 screw
203193
M10 self-locking nut
228012
Black Elastolan pipe 8x6
317022
L=1200
Black Elastolan pipe 8x6
317022
L=1000
Black rilsan pipe 8x6 L=100
317007
INSTRUCTIONS FOR
ASSEMBLY AND USE
Description
Description
9.2 Assembly procedures on the tyre-
changer
Only for G1000A99NP model
1 - Place the lifting device that is assembled next to the
tyre-changer on which it will be installed.
2 - Prepare and arrange near the screws and the ac-
cessories, which are necessary for fixing the lifting
device to the tyre-changer.
3 - After making sure the tyre-changer is insulated
from its power supply sources, proceed with the
fastening of the lifting device.

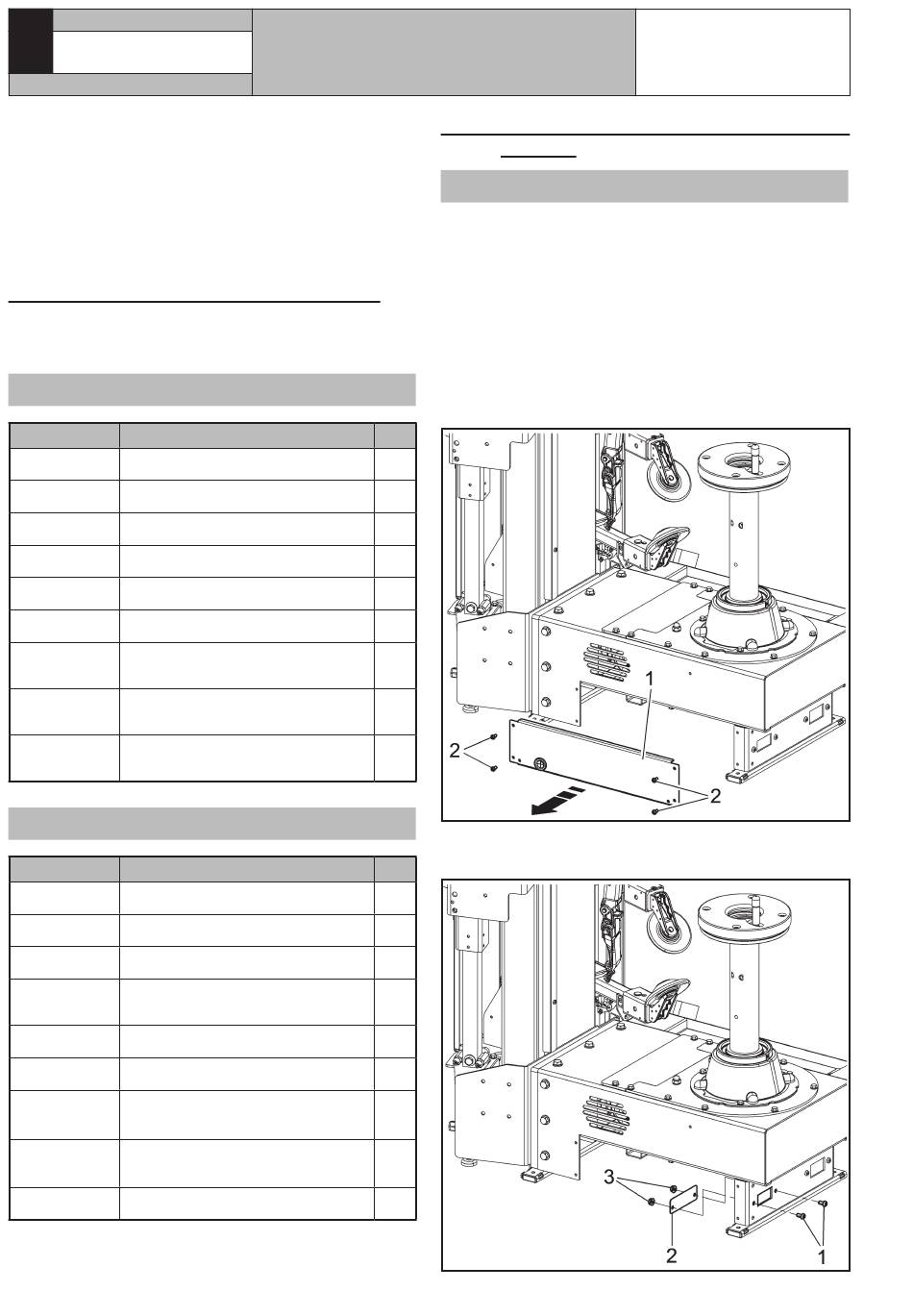

4 - Remove the lateral guard (Fig._3 ref._1) unscrewing
the screws (Fig._3 ref._2).
N.
2
1
2
1
4
4
1
1
1
5 - Unscrew screws (Fig._4 ref._1), nuts (Fig._4 ref._3)
and remove the closing plate (Fig._4 ref._2).
N.
1
1
2
1
4
4
1
1
1
Fig. 4
Fig. 3
